ZS3-4 Controller Hardware Overview

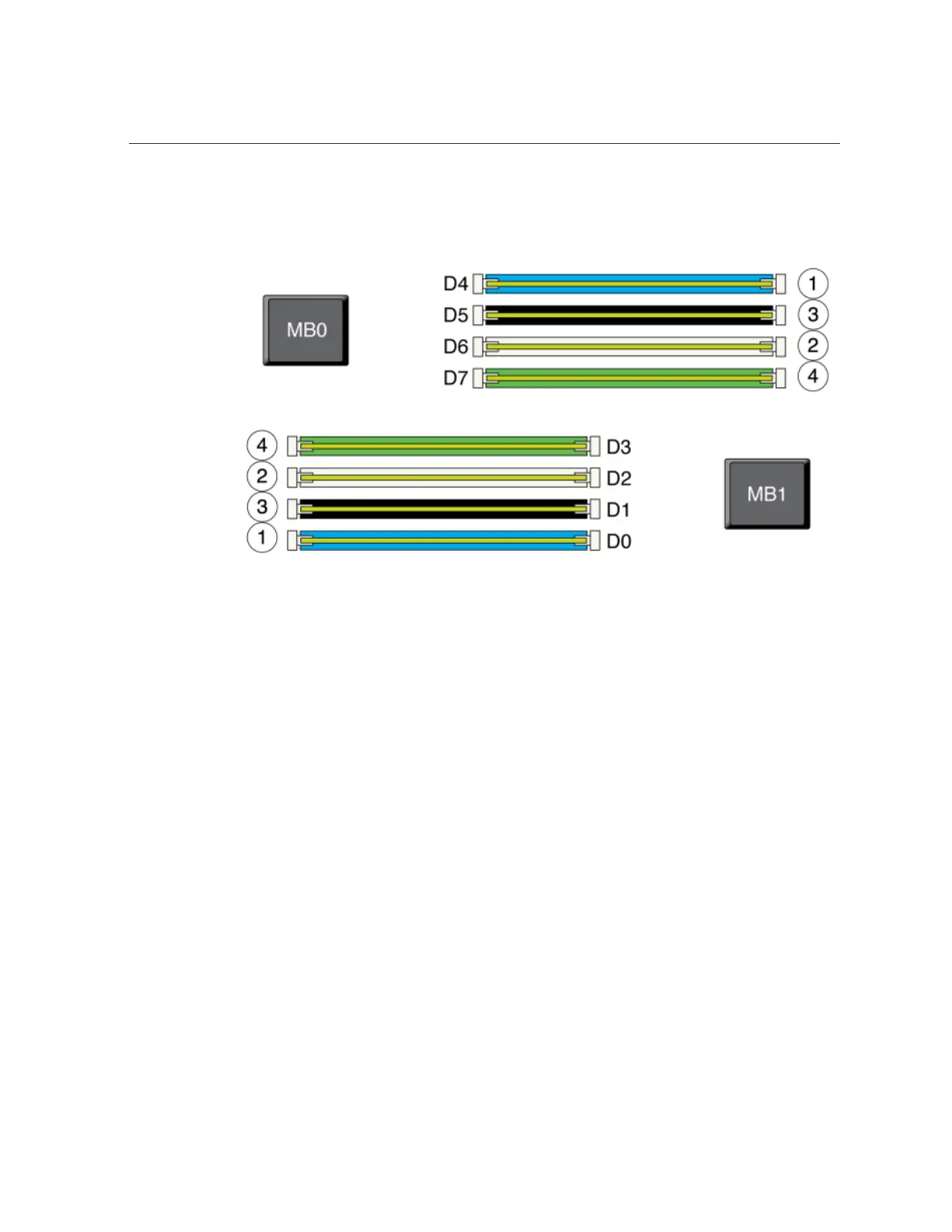

FIGURE 21
ZS3-4 Controller DIMM Placement
DIMM names in appliance logs and the Maintenance > Hardware view are displayed with the
full name, such as /SYS/MB/P0/D7.
ZS3-4 Fan Modules - The Fan Modules and Fan Module LEDs of the controller are shown in
the following figure. The following LEDs are lit when a fan module fault is detected:
120 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
