Replacing a ZS3-2 DIMM
3.
Disconnect the AC power cords from the rear panel of the storage controller.
Caution - Because 3.3 VDC standby power is always present in the system, you must unplug
the power cords before accessing any cold-serviceable components.
4.
Extend the controller from the rack as described in “Extending the Storage
Controller from the Rack” on page 51.
5.
Remove the top cover as described in “Removing the Top Cover” on page 52.
6.
Disconnect the cables attached to the drive backplane, and the cable attached to
the USB board.
7.

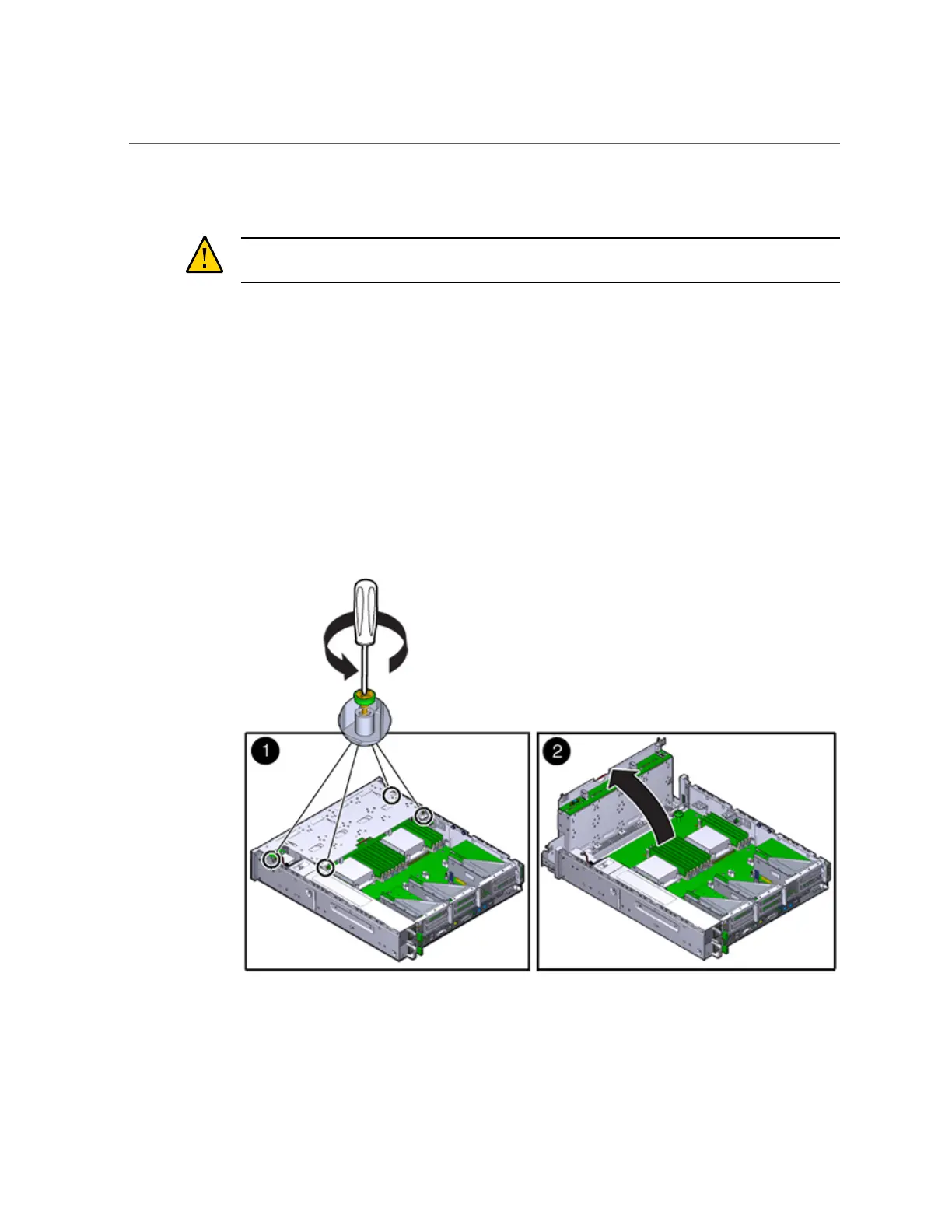

Fully loosen the four screws securing the drive cage to the chassis (1).
8.
Raise the drive cage to the vertical position (2).
140 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
