ZS3-2 Controller Hardware Overview
Figure Legend
4 DIMMs 8 USB flash drive
ZS3-2 CPU and Memory - The ZS3-2 controller motherboard has 16 slots in two groups that
hold industry-standard DDR3 low voltage (LV) DIMMS.

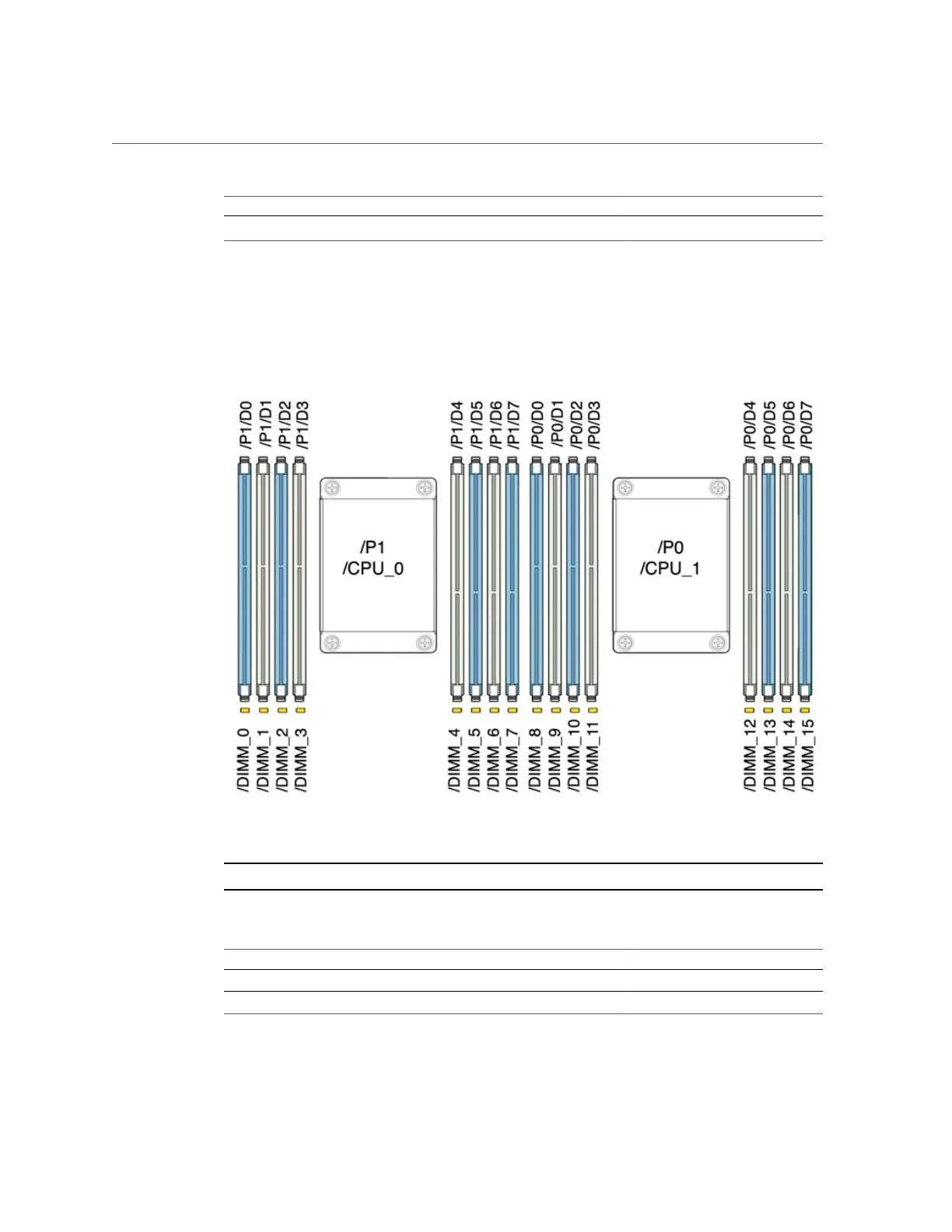

FIGURE 32
ZS3-2 Controller CPU and Memory Components
Note - All sockets must be occupied by identical DDR3 DIMMs.
TABLE 25
ZS3-2 Controller CPU Descriptions
Capacity CPU 0 CPU 1
256GB D0, D2, D5, D7 (blue) D0, D2, D5, D7 (blue)
D1, D3, D4, D6 (white) D1, D3, D4, D6 (white)
Servicing the ZS3-2 Controller 165
