Replacing a 7x20 DIMM

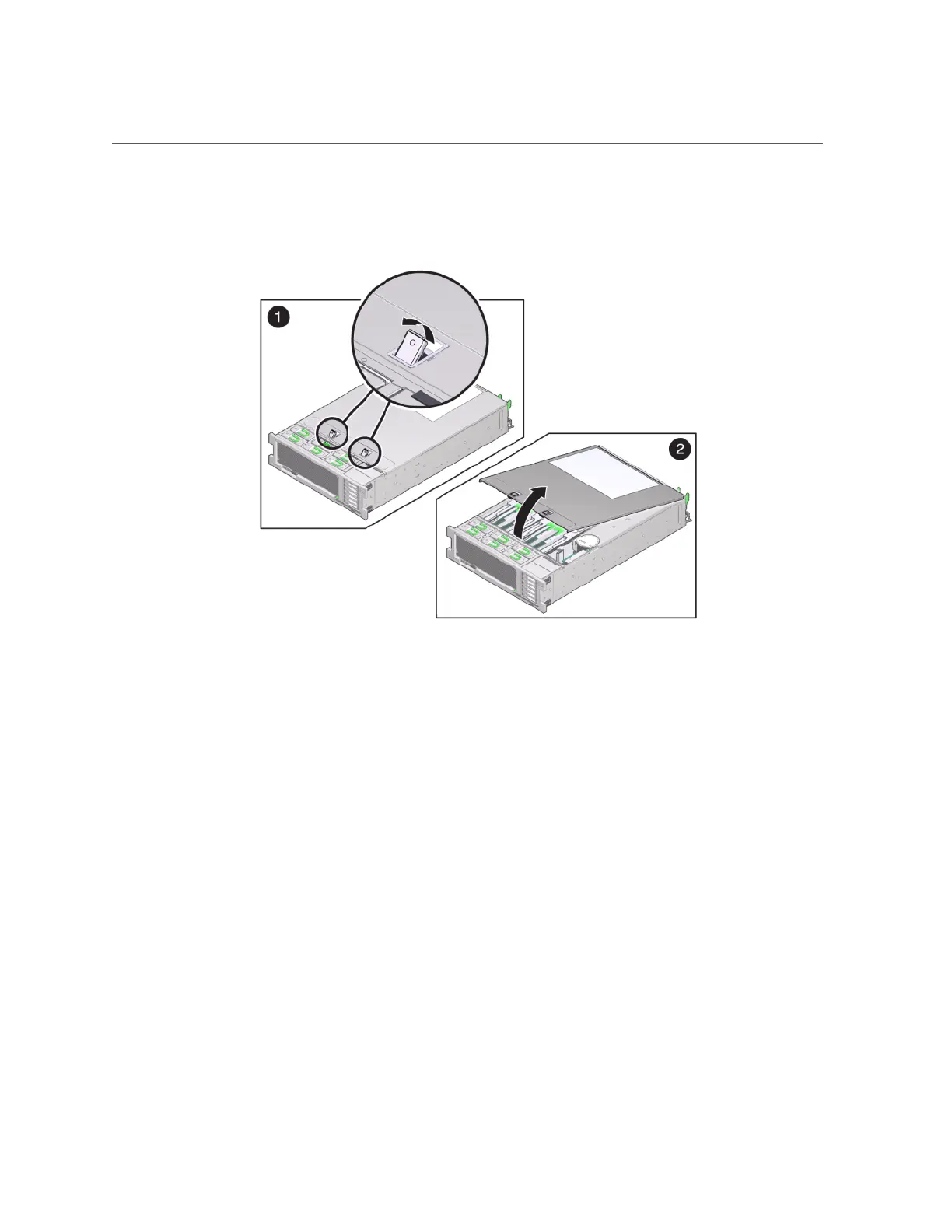

Simultaneously lift both cover latches in an upward motion.

Lift up and remove the top cover.

To locate the DIMM you want to service, press the Fault Remind Button on the

storage controller.

Servicing the 7x20 Controller 187
