Replacing a 7x20 DIMM

Close the fan cover and engage the fan cover latches. The cover must be

completely closed for the storage controller to power on.

12.

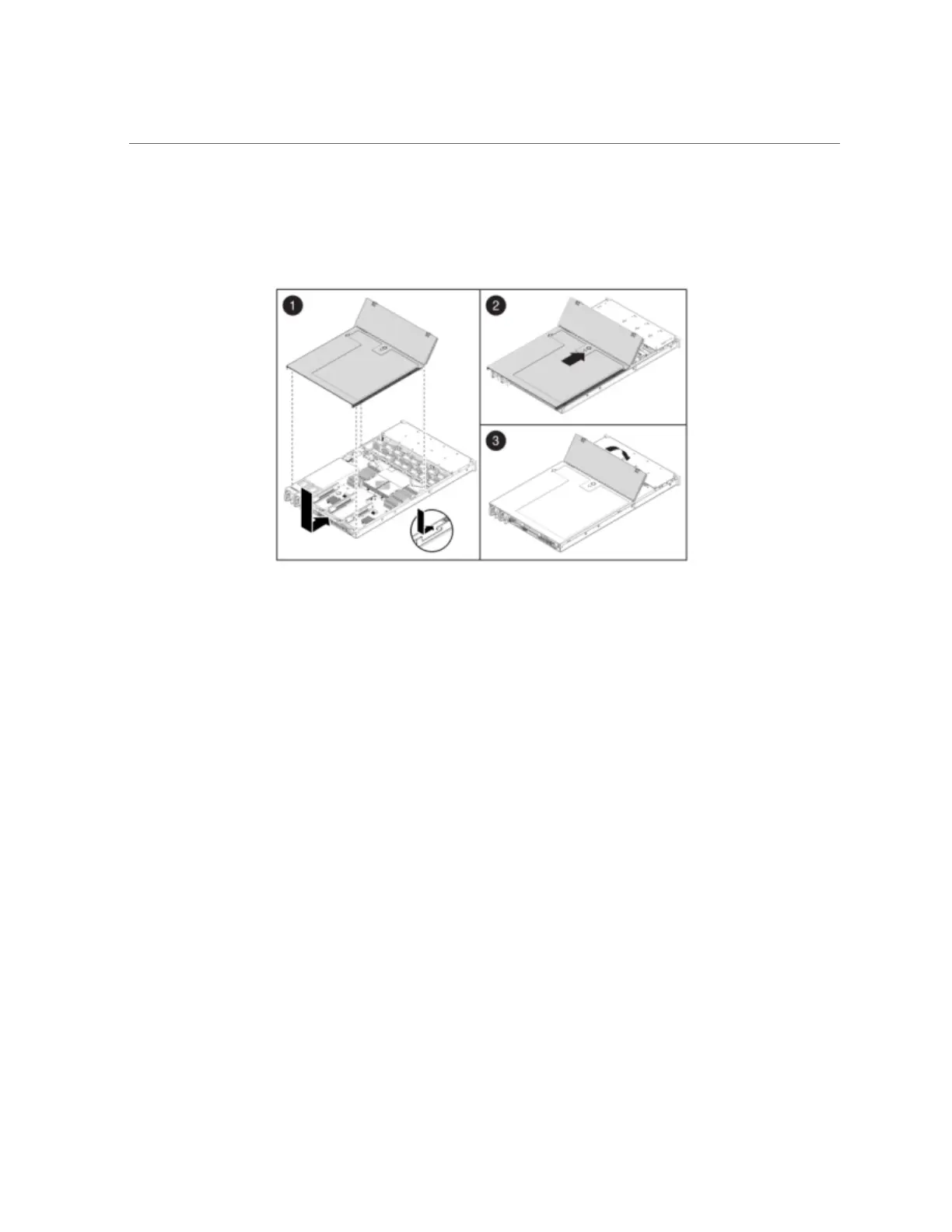

7420: To replace the cover:

192 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
