Replacing a 7x20 DIMM

13.

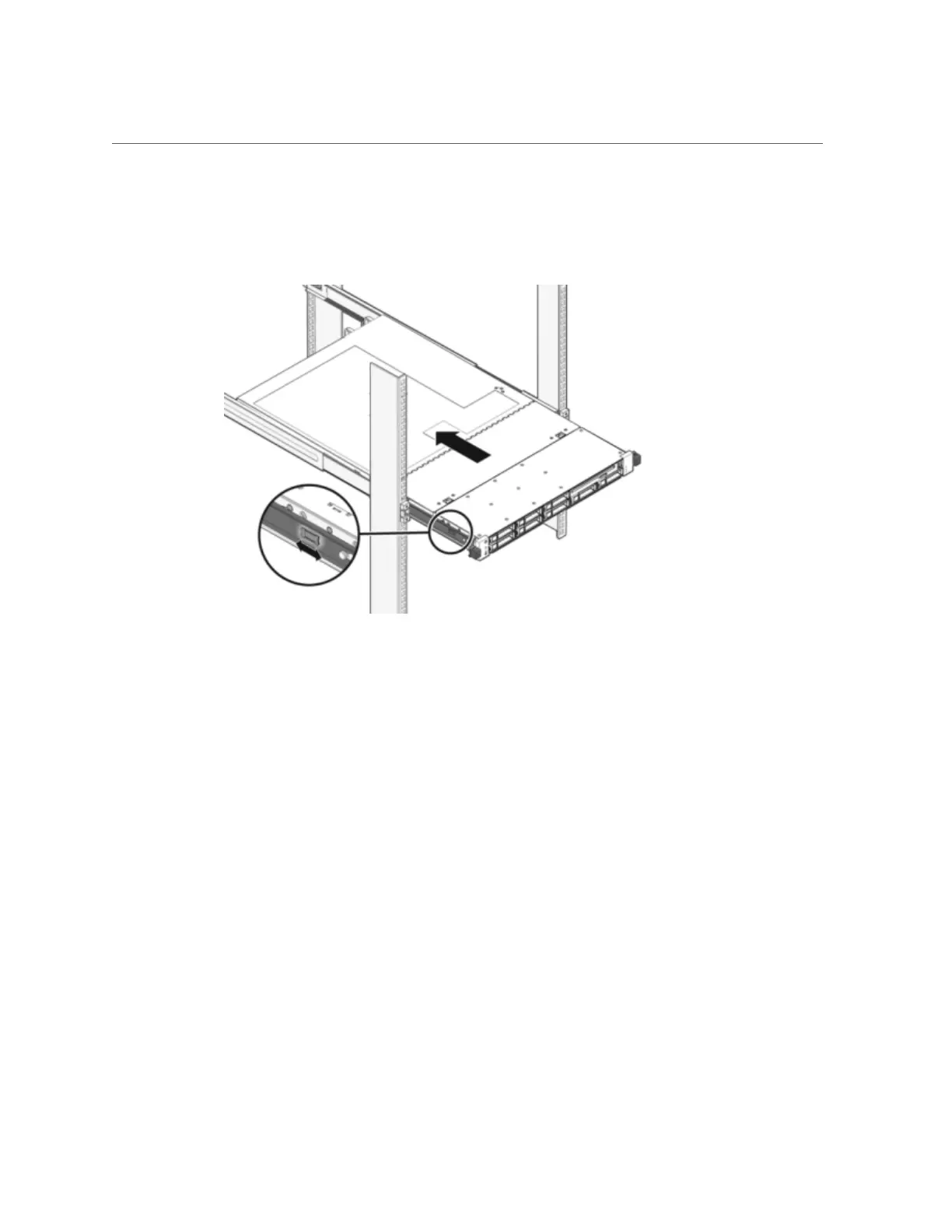

Push the release tabs on the side of each rail and slowly push the storage

controller into the rack.

Servicing the 7x20 Controller 195
