Replacing a 7x20 Controller PCIe Card or Riser

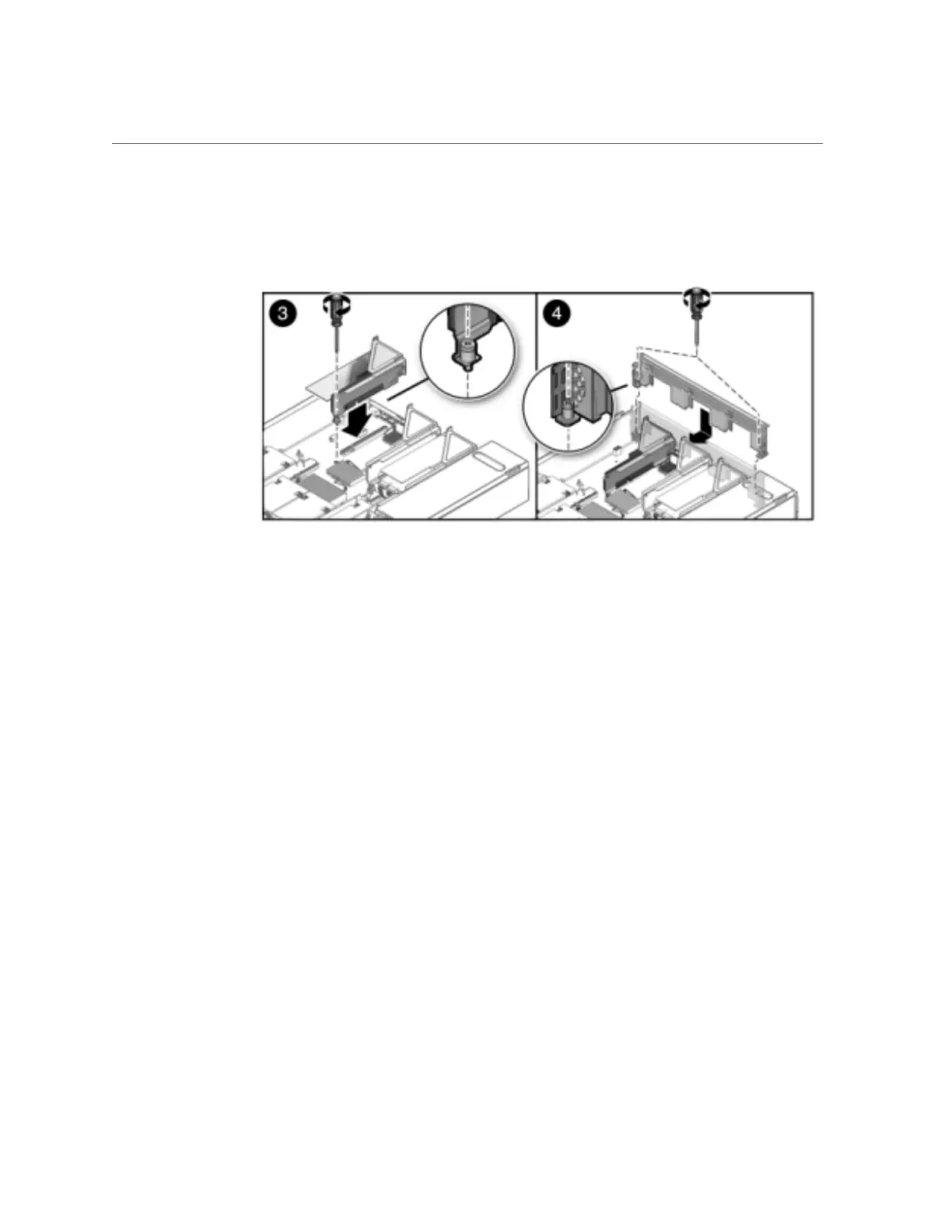

Replace the rear panel PCI crossbar by sliding it down over the PCIe risers,

ensuring the crossbar is secured with two captive Phillips screws.

7420: To replace the PCIe card:

Servicing the 7x20 Controller 203

Default Chapter5
