7420 Controller Hardware Overview
Mktg Part Number Description Mfg Part Number
SG-XPCIE2FC-QF8-Z 2-port 8Gb FC HBA 371-4325-02
SG-XPCIESAS-GEN2-Z 2-port SAS (x4) external HBA F375-3609-03
7105394 2-port SAS (x4) external HBA for
EU countries
7059331
X4446A-Z-N 4-port GigE UTP 7054739
X4242A 2-port CX2 4xQDR, HCA 594-6776-01
X1109A-Z 2-port 10GbE SFP+ NIC 7051223
X2129A XCVRm 850NM, 1/10GPS, Short
Reach, SFP
7015839
X5562A-Z 10GbE/1GbE SFP+ Transceiver, LR 594-6689-01
7420 PCIe Slot Order - When installing additional PCIe cards to your base 7420
configuration, cards must be added in a specific order.
Note - The 7420 M2 reserves slot 0 for a SAS-2 internal HBA, and slots 1 and 8 for two SAS-2
external HBAs (see “7420 PCIe I/O Cards” on page 224).

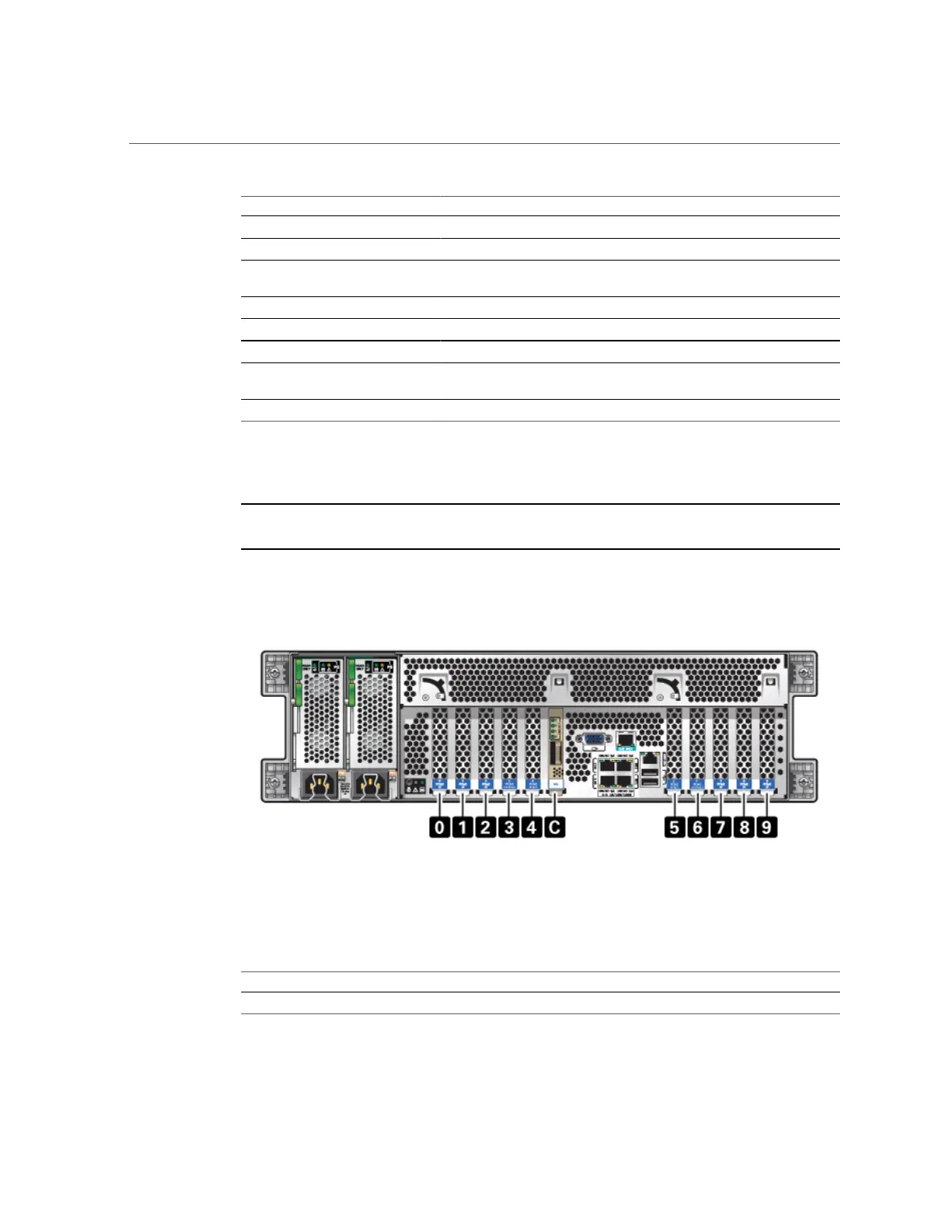

FIGURE 45
7420 Controller PCIe Cards and Slot Order
Install optional PCIe cards in the following order:
TABLE 33
7420 Controller Optional PCIe Cards and Slot Order
PCIe Card Slot Order
1. SAS-2 external HBA Slot 2, 7, 3, 6
228 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
