7320 Controller Hardware Overview
Part Number Description FRU/CRU
F541-2075-04 Buss Bar Power, 1U FRU
F542-0184-01 DR, 3Gb SATA CRU
F542-0330-01 2.5" Read Cache SSD CRU
F541-276-01 ASSY,FAN Module CRU
F541-4274-02 Fan Board (1U) FRU
The following list contains the replaceable CPU and memory components of the 7320.
TABLE 40
7320 Controller Replaceable CPU and Memory Components
Part Number Description FRU/CRU
F371-4966-01 DIMM, 8GB, DDR3, 2RX4, 13 CRU
F371-4885-01 Intel E5620, 2.40G FRU
7320 CPU and Memory Components - The storage controller motherboard has 18 slots in two
groups that hold industry-standard DDR3 DIMM memory cards. All sockets must be occupied
by either a filler or a DDR3 DIMM.

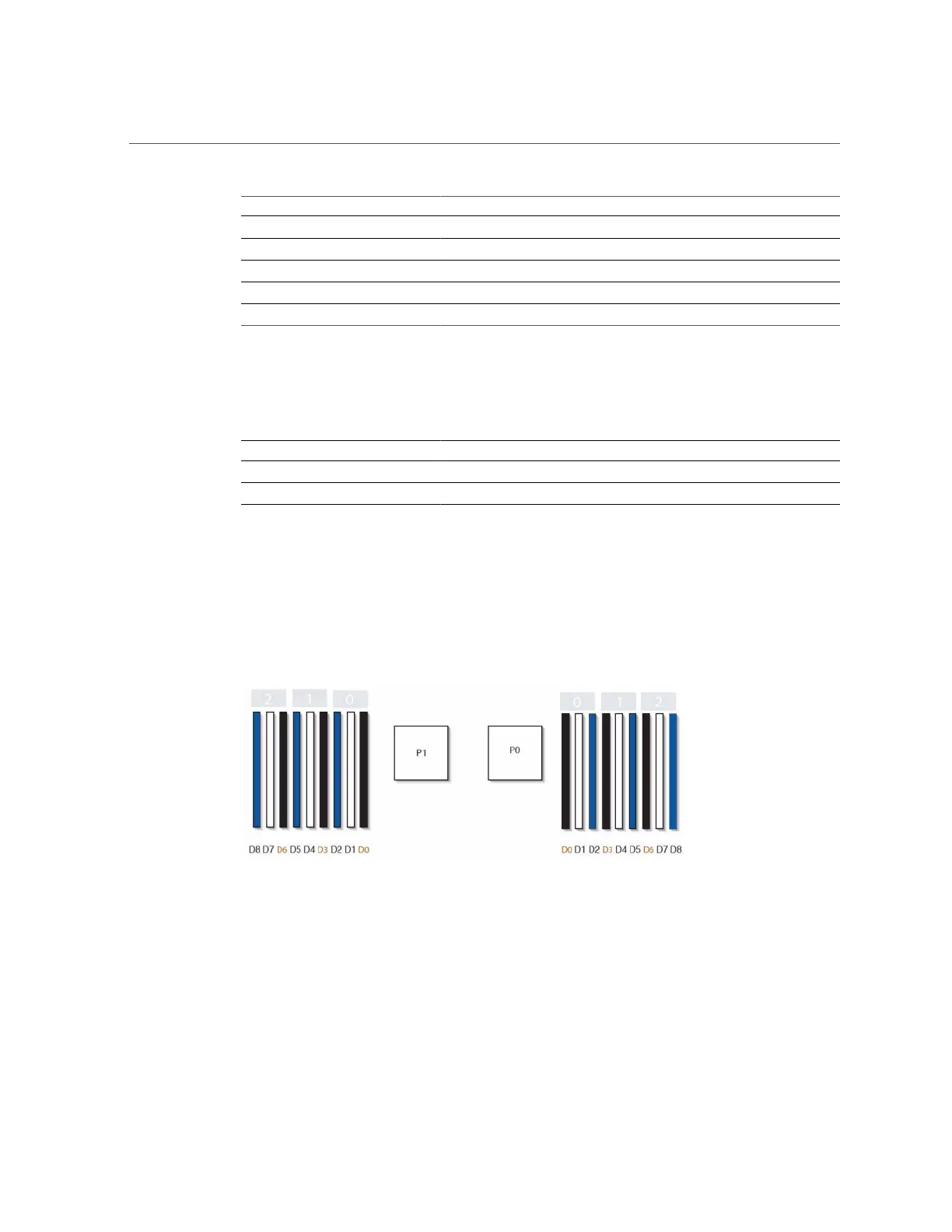

FIGURE 51
7320 Controller CPU and Memory Components
7320 Power Distribution and Fan Module Components - The following figure and legend
identify the Power Distribution/Fan Module components of the storage controller.
238 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
