Replacing a Faulty Disk Shelf Drive

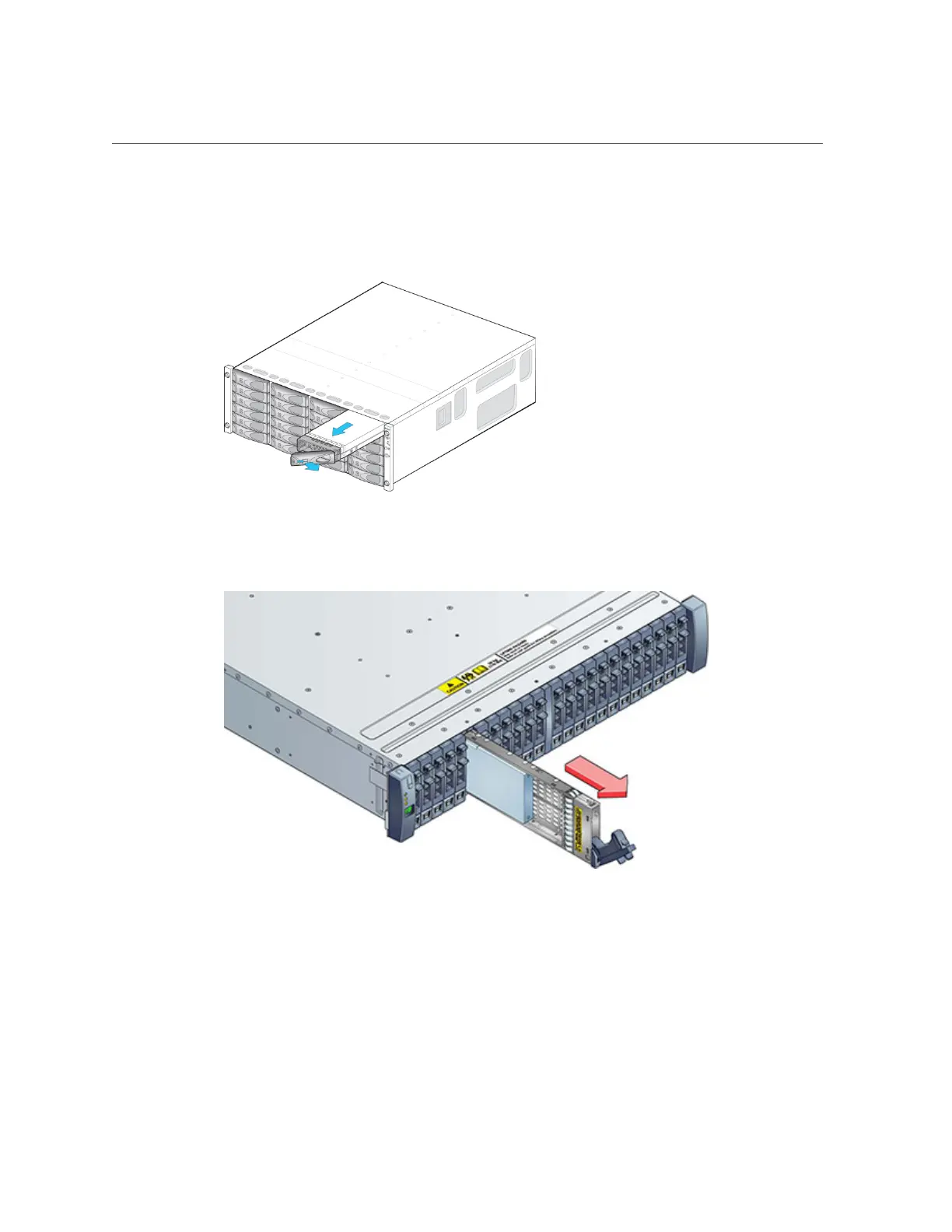

Pull the drive lever fully open to unlock and partially eject the drive from the

chassis.

- OR -

Grasp the middle of the drive body and pull it toward you to remove it from the

chassis.

Wait at least 30 seconds.

Ensure the new drive lever is in the fully extended position.

Servicing the Disk Shelves 257
