Stabilize the Rack
Installing the Server 33
The rackmount kit has two shelf rails, one for each side of the rack. Each shelf rail is marked
LEFT or RIGHT.
The shelf rails are mounted to the rack or rack with four adaptor brackets. The shelf rails adjust
to fit rack depths from 25 to 34.25 in. (63.5 to 87 cm).

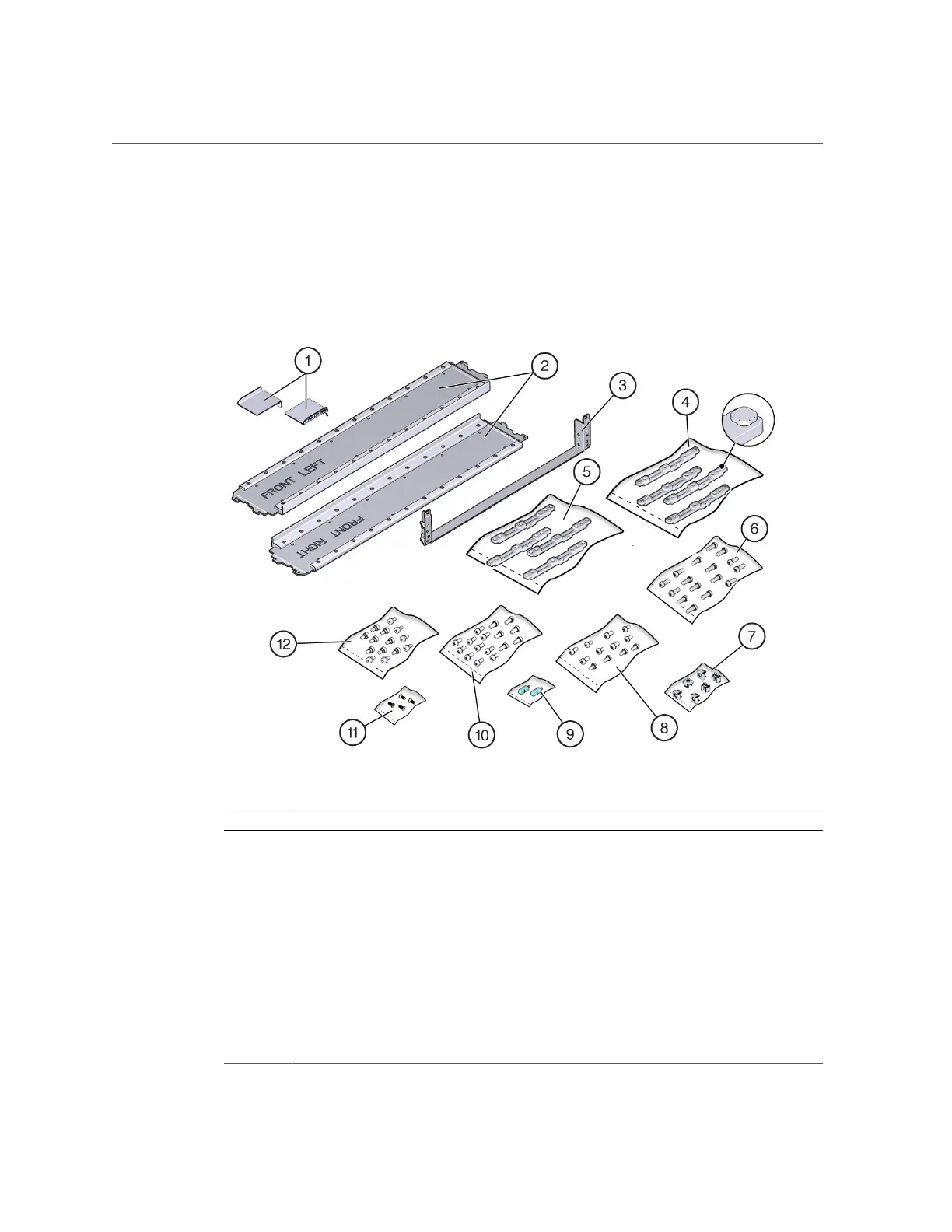

No. Description
1. Top rear brace (right and left)
2. Shelf rails
3. Bottom rear shipping brace
4. Adapter bracket (for square mounting holes)
5. Adapter bracket (for round mounting holes)
6. M6 16-mm screws (16)
7. Cage nuts (4)
8. 10-mm screws (12)
9. Guide pin (2)
10. M6 12-mm screws (16)
11. M4 Flathead screws (4)
