Oracle SPARC T5-4 Installation Guide

Identifying Ports
58 SPARC T5-4 Server Installation Guide • July 2015
Pin Signal Description Pin Signal Description
A1 +5 V (fused) B1 +5 V (fused)
A2 USB0/1- B2 USB2/3-
A3 USB0/1+ B3 USB2/3+
A4 Ground B4 Ground
Related Information
■
“Server Overview” on page 12
■
“Front Panel Components” on page 13
■
“Rear Panel Components” on page 14
■
“Cabling Requirements” on page 55
■
“Connecting Data and Management Cables” on page 61

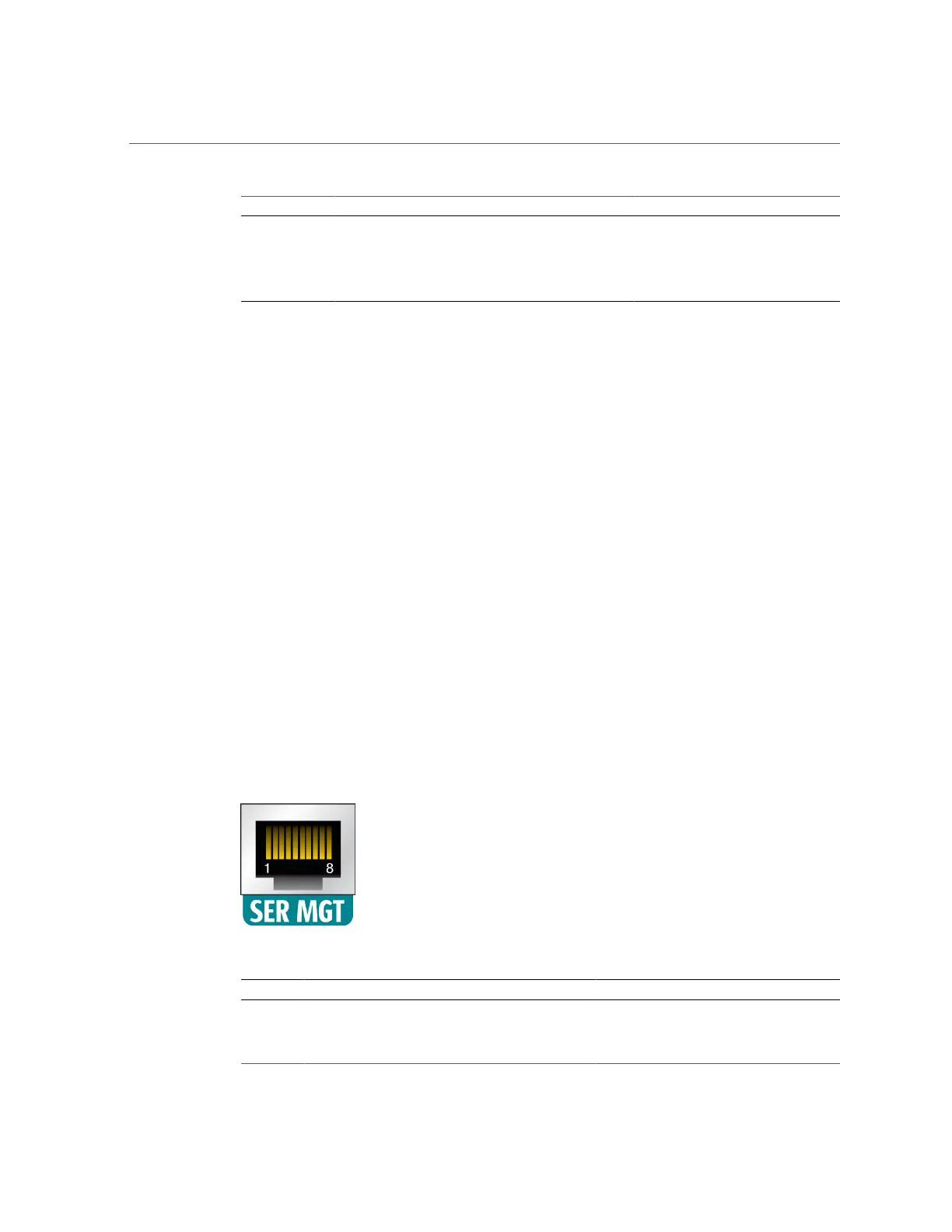

SER MGT Ports
The SER MGT RJ-45 port, located on the rear panel, provides an TIA/EIA-232 serial Oracle/
Cisco standard connection to the SP. This port is the default connection to the Oracle ILOM
system controller. For DTE to DTE communications, you can use the supplied RJ-45 to
DB-9 crossover adapter with a standard RJ-45 cable to achieve the required null modem
configuration. See “Rear Panel Components” on page 14.
An additional SER MGT port is located on the main module and is accessible from the front
panel. See “Front Panel Components” on page 13.
Pin Signal Description Pin Signal Description
1 Request to Send 5 Ground
2 Data Terminal Ready 6 Receive Data
3 Transmit Data 7 Data Set Ready
