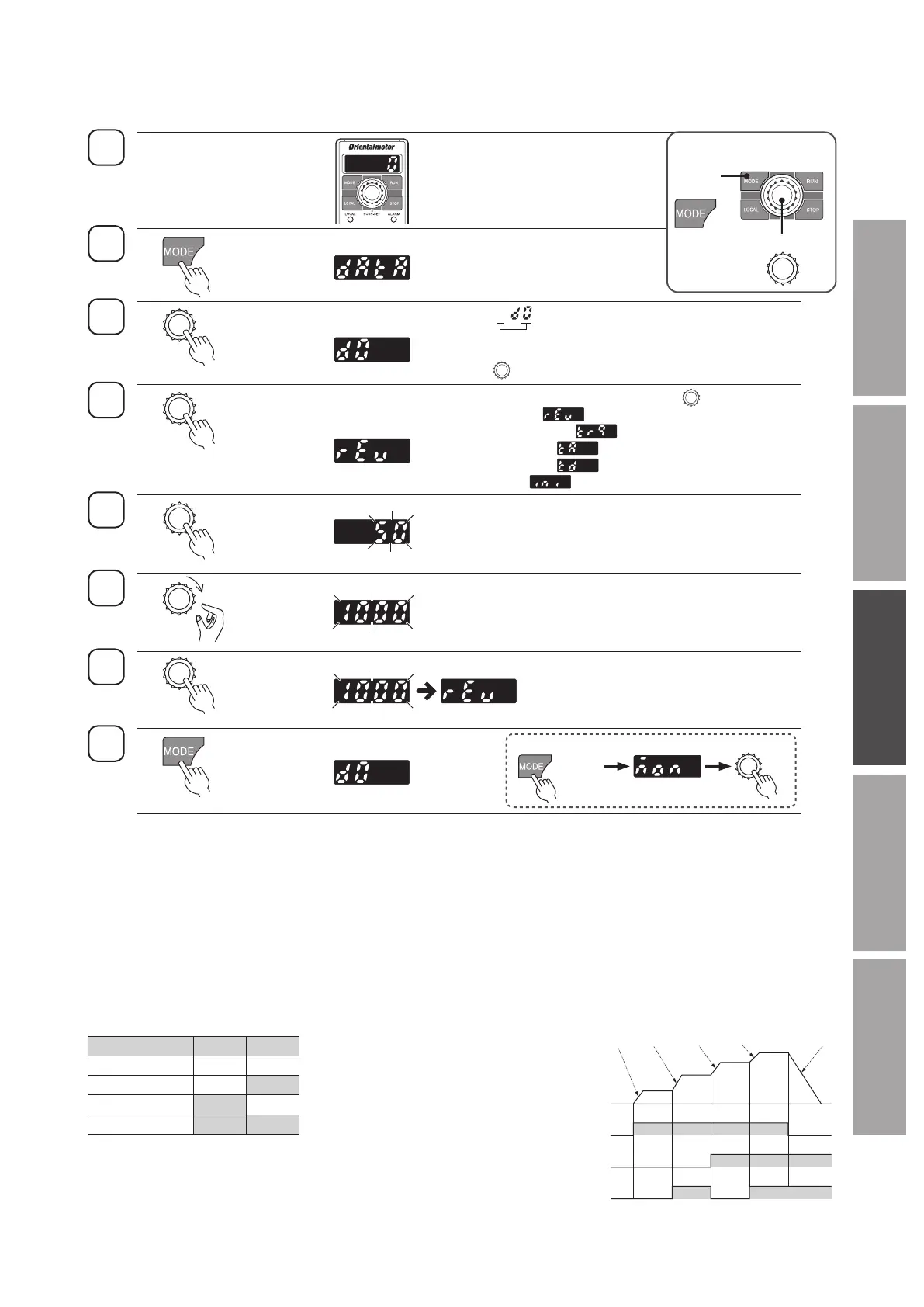

Data setting method (Example: Rotation speed)
Setting screen
1
Turn on the AC power supply
2
3
Press twice
Press once
Press
4
Press
5
Press
6
Turn
7
Press
Data number
selection screen
Data number
selection screen
Data mode
Data No.0 selection screen
The display blinks
The display blinks
Blinks a few times fast
Data setting
Setting
8
Rotation speed: 50 r/min (factory setting)
Rotation speed : 0 r/min
Continue to turn clockwise until "1000"
Data No.0 :
The desired operation data number can be selected
from the operation data No.0 to No.15 (16 data) by
turning .
The desired item can be selected by turning .
•
Rotation speed
•
Torque limiting value
•
Acceleration time
•
Deceleration time
•
Initialization
Operation panel
MODE
key
Setting dial
[ To return to the rotation speed display ]
PressPress
four times

How to operate
(Example: Four speeds, 2-wire mode)
Select any of the operation data Nos. 0 to 3 by switching the ON-OFF status of the M0 and M1 inputs, and operate the motor.
The motor is operated using the rotation speed, torque limiting value, acceleration time, and deceleration time in the selected
operation data number.
<Operation procedure>
1. Select the operation data number using the M0 and M1 inputs.
2. When either the FWD input or the REV input is turned ON, the motor rotates.
3. Switch the operation data using the M0 and M1 inputs.
4. When the FWD input or the REV input which has been turned ON is turned OFF, the motor stops.
ON
OFF
ON
OFF
ON
OFF
FWD input
No.0 No.1No.2No.3
M1
input
M0 input
Motor operation
No.0 No.1 No.2 No.3 No.3
Available operation
data number
Operation data No. M1 M0
0 OFF OFF
1 OFF ON
2 ON OFF
3 ON ON
The setting method of the rotation speed can be selected by
the setting of the "Speed, torque limiting command selection"
parameter (ID: 1820).
Refer to p.59 for details.
