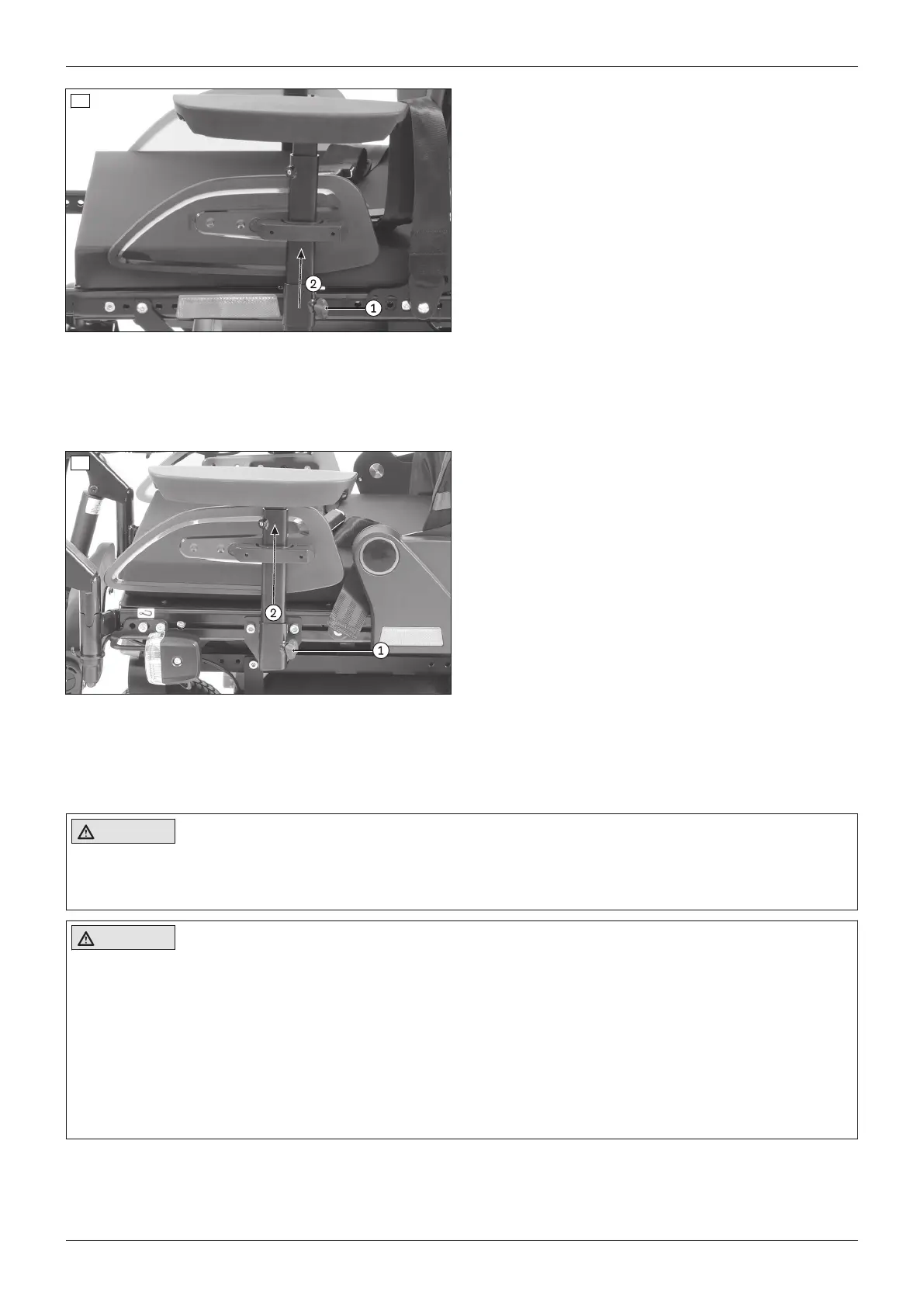

Removing the side panel
1) Loosen the thumb screw on the side panel holder
(see fig.5, item1).
2) Pull the side panel out from the side panel holder
and set it aside (see fig.5, item2).
3) Only for side panel with control panel:
→ Turn the control unit off (see page26).
→ Carefully let the side panel with the control pan
el hang down while getting in.
→ For transporting the power wheelchair, place
the side panel on the seat.
Installing the side panel
1) Insert the side panel into the side panel holder.
2) Re-tighten the thumb screw on the side panel hold
er (see fig.5, item1).
To make getting in from the side easier or for transportation, the side panels can be removed if needed.
6
Removing the side panel
1) Loosen the thumb screw on the side panel holder
(see fig.6, item1).
2) Pull the side panel out from the side panel holder
and set it aside (see fig.6, item2).
3) Only for side panel with control panel:
→ Turn the control unit off (see page26).
→ Carefully let the side panel with the control pan
el hang down while getting in.
→ For transporting the power wheelchair, place
the side panel on the seat.
Installing the side panel
1) Insert the side panel into the side panel holder.
2) Re-tighten the thumb screw on the side panel hold
er (see fig.6, item1).
7.2.2 Elevating the side panels
CAUTION
Exposed pinch points
Pinching, crushing of limbs due to improper handling
► Do not reach into the danger area with your fingers when folding up and down the side panels.
CAUTION
Impermissible use
Injuries due to abrupt folding, damage to the product
► Fold up the side panel only for the purpose of getting in and out. Never pull on the side panel when getting in
and out. Pay attention to protruding edges.
► Always put the seat in a horizontal position before folding up or down the side panel.
► Always switch off the control device before folding up or down the side panel.
► Note that the side panel is not secured against being folded up and down. The unloaded side panels can fold
backwards on their own when the seat is at larger tilt angles.
► Ensure that both side panels are folded down before you continue using the power wheelchair.
The side panels can be elevated towards the back if necessary to make it easier to get into and out of the wheel
chair from the side.
