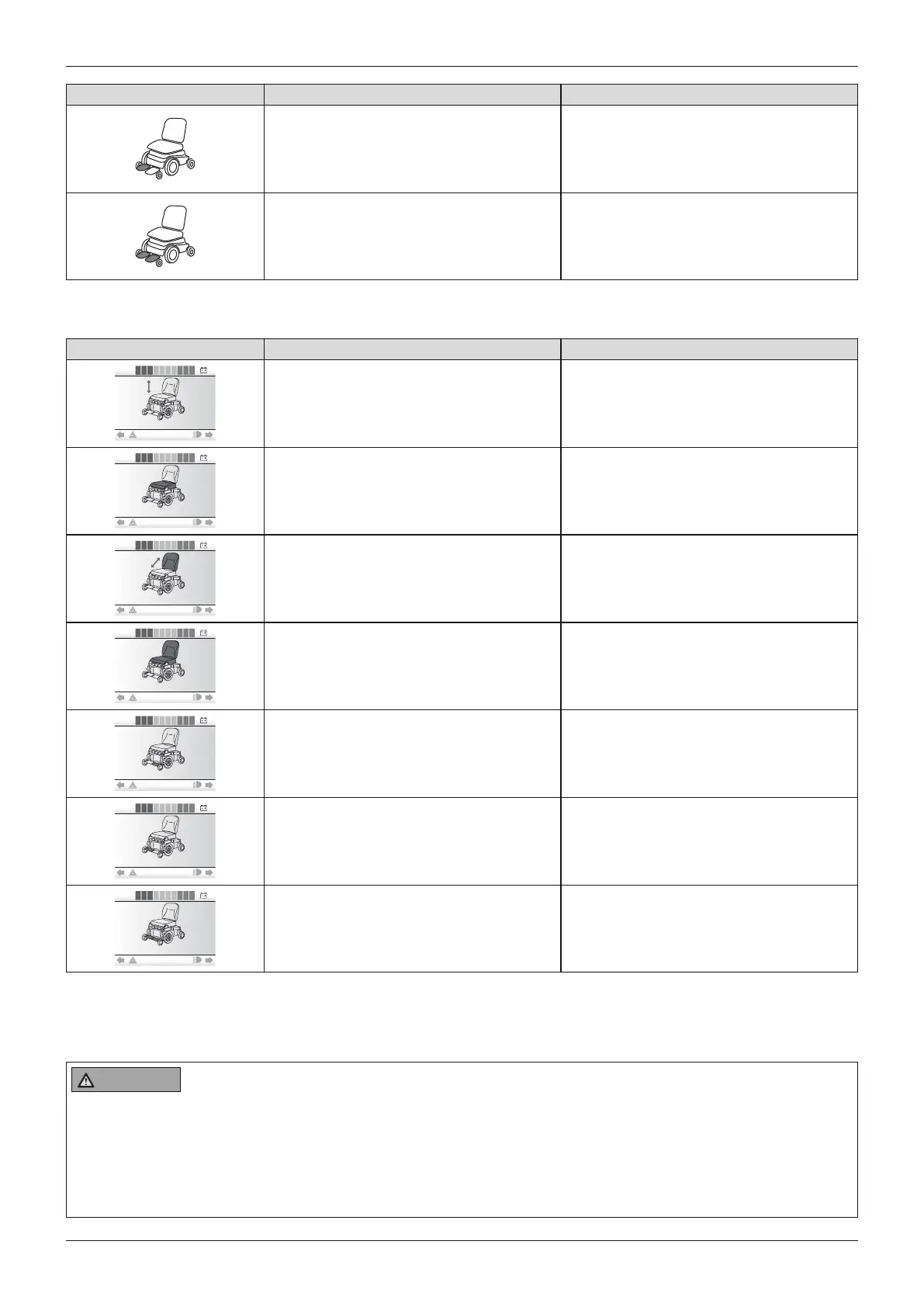

JSM display Function Joystick deflection (standard setting)
1)
Power foot supports - right Forward: Right foot support moves for
ward
Back: Right foot support moves back
Power foot supports, coupled Forward: Both foot supports move for
ward
Back: Both foot supports move back
1)
Direction of movement can be modified by the specialist dealer.
R-Net control device – CJSM control panel
Display Function Joystick deflection (standard setting)
1)
Power seat height adjustment Back: Seat surface moves up
Forward: Seat surface moves down
Power seat tilt Back: Seat slowly tips back
Forward: Seat slowly tips forward to a
horizontal position
Power back support angle adjustment Back: Back support tilts backward
Forward: Back support tilts forward
Combined seat height adjustment and
seat tilt
Forward: Seat functions move forward
Back: Seat functions move back
Power leg support left Back: The left leg support moves up
Forward: The left leg support moves
down
Power leg support right Back: The right leg support moves up
Forward: The right leg support moves
down
Power leg supports, coupled Back: Both leg supports move up
Forward: Both leg supports move down
1)
Direction of movement can be modified by the specialist dealer.
7.12 Manual seat functions
7.12.1 Safety instructions
WARNING
Driving with mechanical seat functions
Risk of falling or tipping over due to operator error
► Only drive in road traffic and on inclines and downgrades with the seat tilt lowered, vertical back support and
with the leg supports lowered. Always use a belt system.
► Only drive short distances at home when mechanical seat functions are activated. Always use the speed level
1 for this. Note that the field of vision is limited when driving. Always use a belt system.
