Readjusting the tray depth

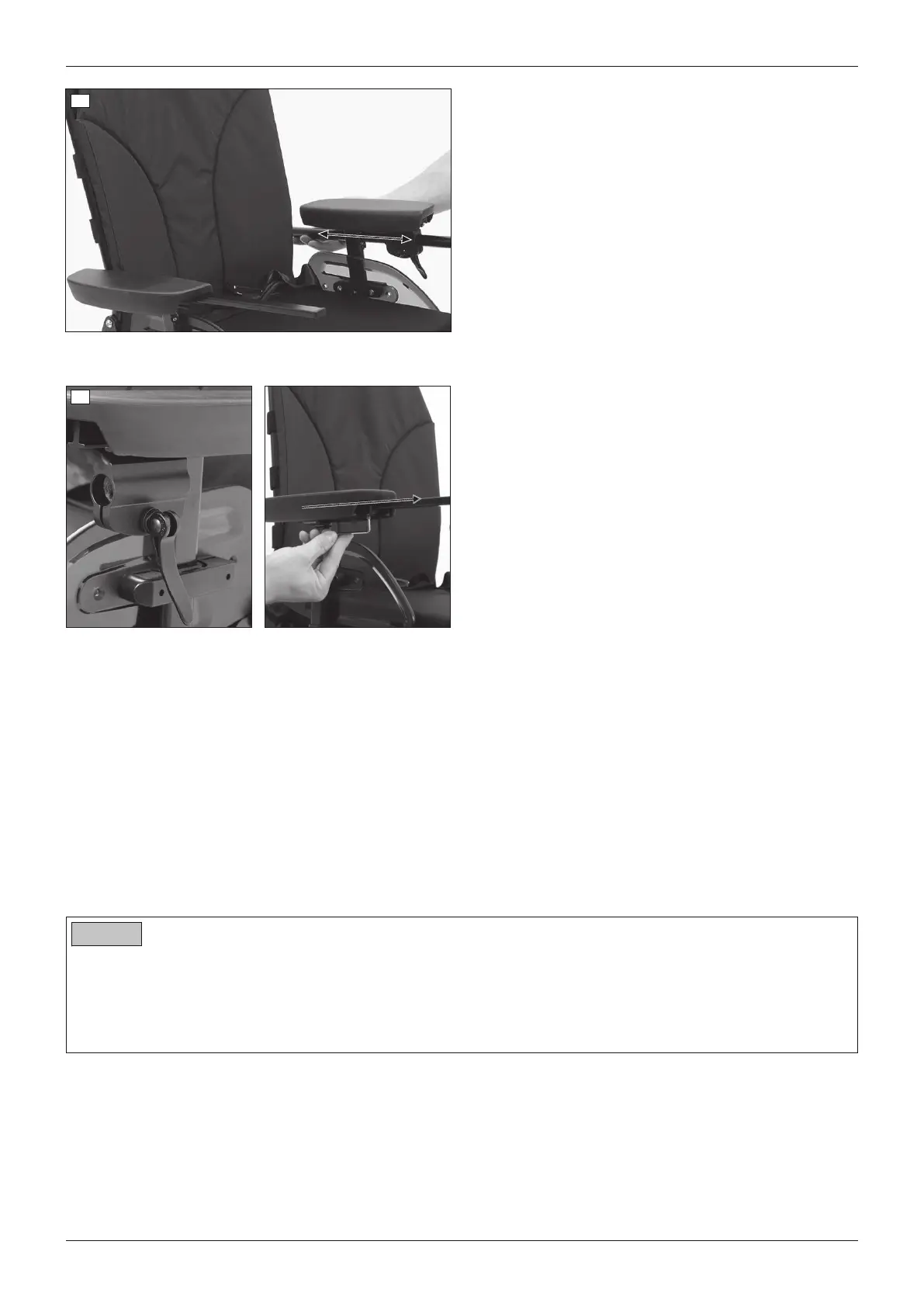

1) Open the clamping lever on the swivel mechanism
and pull the tray forward slightly (see fig.87).
2) Pull the pin and swing the tray away to the side (see
fig.86).
3) Seat the user in the seat.
4) Fold the tray down and lock it with the pin.
5) Adjust the depth.
CAUTION! The user must not get pinched by the
tray. Ensure that the user's arms can rest on the
tray and that the front, round cutout does not
press on the user's body.
6) Firmly engage the clamping lever on the swivel
mechanism.
88
Removing the tray when necessary
1) Pull the pin and swing the tray away to the side (see
fig.86).
2) Open the clamping lever on the swivel mechanism
and pull the tray out to the front (see fig.87). The
clamping mechanism remains under the arm sup
port (see fig.88, left).
3) Remove the clamping profile on the side of the con
trol panel (see fig.88, right). To do so, loosen and
remove the 2set screws and 1slide block on the
bottom of the arm support.
4) Pull out the clamping profile towards the front.
7.16.7.3 Cleaning
1) Clean the product with warm water and a mild detergent.
2) Rinse with clear water and let the product dry.
Important notice regarding cleaning
• Do not use any aggressive cleaners, solvents or hard brushes etc.
7.16.7.4 Maintenance
In order to ensure the safety of the product, it must be maintained for the entire duration of use.
• Check the screw connections for firm fit on a regular basis.
• Replace all worn or damaged components immediately.
• Pay particular attention to cracking in the tray top.
7.16.8 Luggage carrier
NOTICE
Overloading the luggage carrier
Damage to product due to breakage
► The maximum load for the luggage carrier is 15 kg (33 lbs).
► Please note that the maximum load of the overall product must not be exceeded, also after loading the lug
gage carrier (see page117).
