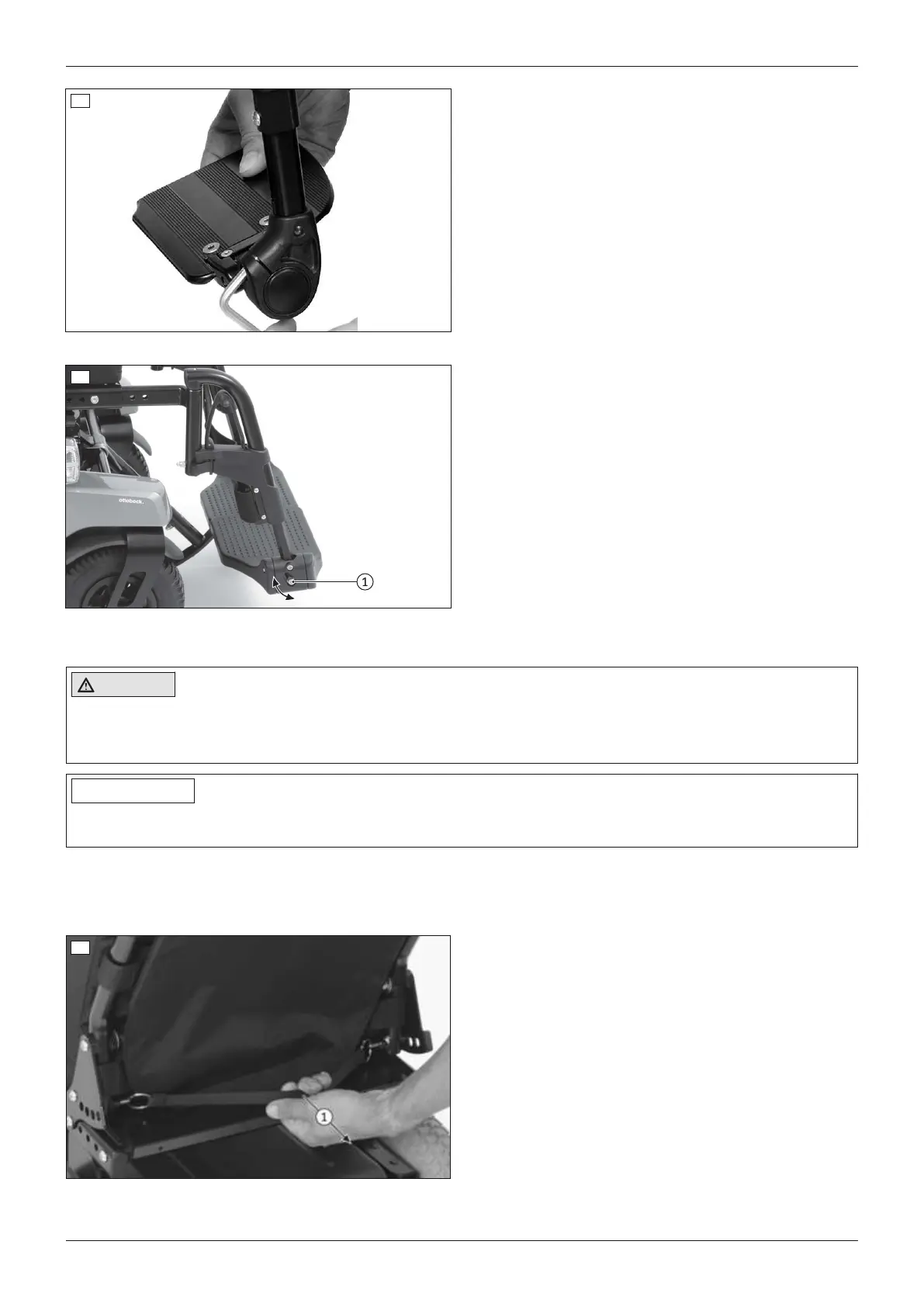

Adjusting the foot support angle
1) Loosen the Allen head screw on the foot support.
2) Turn the foot support to the desired angle.
3) Tighten the Allen head screw.
19
Adjusting the foot support angle
1) Loosen the Allen head screw on the foot support
(see fig.19, item1).
2) Rotate the foot support to the desired angle.
3) Tighten the Allen head screw.
7.4 Backrest
CAUTION
Exposed pinch points
Crushing, pinching due to incorrect handling
► Do not reach into the danger area with your fingers when folding the backrest up or down.
INFORMATION
Detailed information regarding use when equipped with an ADI back support (Baxx line) can be found in the sep
arate, enclosed instructions for use.
The backrest provides pressure redistribution and support for the upper body.
7.4.1 Folding the back support up/down
The wheelchair may be delivered with the backrest folded down. It has to be folded up and secured prior to use.
20
Folding up the backrest
1) Pull on the strap until the locking bolts are free (see
fig.20, item1).
2) Lift the backrest and move it to the desired position.
3) Allow the locking bolts to engage.
4) Check to ensure the lock is securely engaged by
pulling on the backrest.
Folding down the backrest
1) Pull on the strap until the locking bolts are free (see
fig.20, item1).
2) Lay the backrest down on the seat.
