7.14 Suspension
73
This power wheelchair has drive wheel suspension as
standard equipment. The suspension is located to the
left and right of the battery case at the drive unit.
7.15 Control unit accessories
7.15.1 Attendant control
7.15.1.1 VR2 attendant control
The power wheelchair has been equipped with a separate control panel for attendant operation. The separate con
trol panel is height-adjustable and removable.
Functional overview
The attendant uses the attendant control to operate the driving function and the power seat functions.
The module is connected in conjunction with the control panel or as a separate input device.

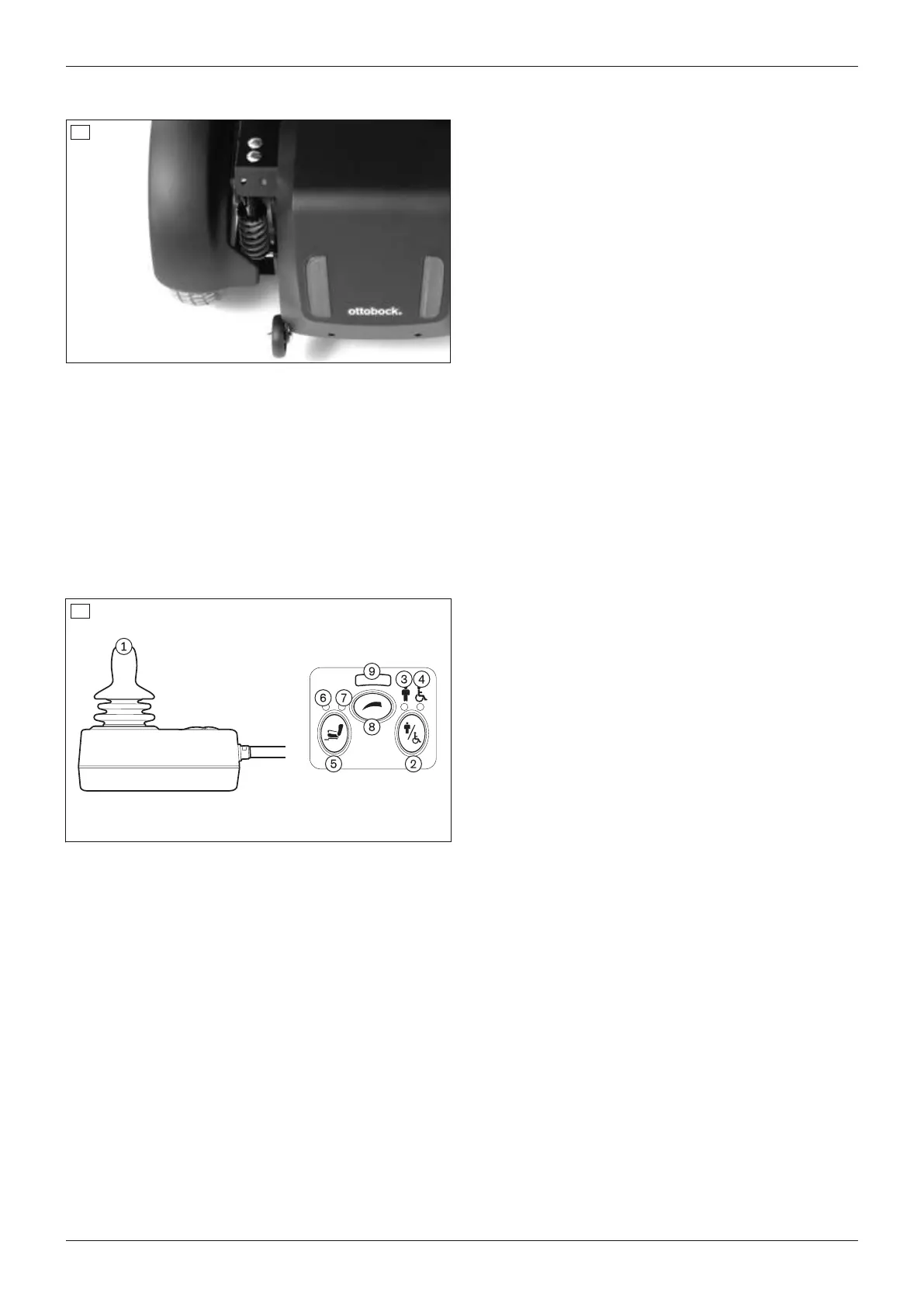

1 Joystick
2 [Activate/deactivate attendant control] button
3 [Attendant control active] LED display (green
LED display)
4 [Primary control active] LED display (red LED
display)
5 [Select additional power function] button
6 [Seat function 1] LED display
7 [Seat function 2] LED display
8 [Select speed level] button
74
9 [Selected speed level] LED display
Joystick
The attendant uses the joystick to control the speed and driving direction. When a seat option is activated, the joy
stick operates this seat option.
[Activate/deactivate attendant control] button
The attendant uses this button to assume the control functions from the control panel or to return them to the con
trol panel. The current state is shown by an LED indicator.
[Attendant control active] LED display
The green LED lights up when the attendant control is activated and the power wheelchair control panel is deactiv
ated.
[Primary control active] LED display
The red LED lights up when the attendant control is deactivated and the power wheelchair control panel is activ
ated.
[Select additional power function] button
Pressing this button selects seat function 1, then seat function 2. The selected seat function is indicated by the
LEDs.
