Version with a toggle for a third seat function
67

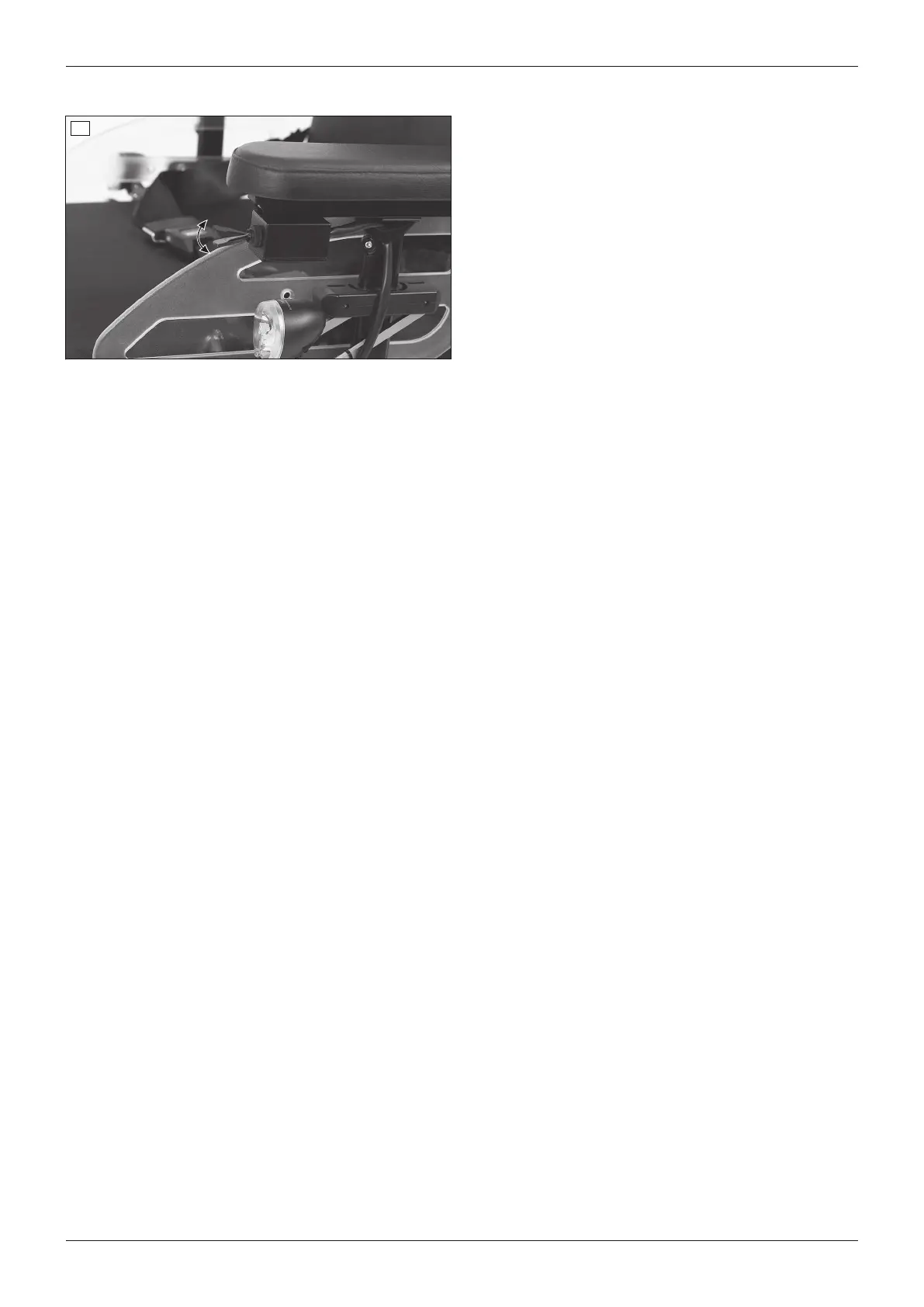

• If the power wheelchair is equipped with three
power seat functions, a toggle is mounted under the
armrest on the control panel side.
• The third seat function can only be activated when
the LED display on the right is lit up ("Seat function
2" is activated: see fig.28, item3b).
• This is done by activating the toggle under the arm
rest (see fig.67).
INFORMATION: each time the toggle is activ
ated, the function switches between "Seat func
tion 2" and "Seat function 3".
7.11.8.2 R-Net control unit
• If the power wheelchair is equipped with one or more power seat functions, they are activated and controlled
via the control panel (see page34ff.).
• The "Power seat functions" mode is accessed by pressing the [Mode] button. The [Selected seat function]
LED display lights up. The first seat function that can be controlled, established in the programming, is dis
played (see the following section "Joystick functions").
Please note: Depending on programming, the [Mode] button may need to be pressed a number of times
before the [Selected seat function] LED display lights up.
• Moving the joystick to the left/right switches between the seat functions. The [Selected seat function] LED dis
play indicates the currently selected seat function (see the following section "Joystick functions"). The driving
function is not available at this time, and the [Selected speed level] LED display turns off.
• Once a seat function is activated, it is adjusted by moving the joystick forward or backward.
• The electric motor adjusts the seat function as long as the joystick is deflected, and stops at the end positions.
• Exit the "Power seat functions" mode by pressing the [Mode] button again. You can now toggle through the
driving function or other modes (depending on the programming).
Please note: The driving function is available again when the [Selected speed level] LED display is lit.
• If the power wheelchair is equipped with one or more power seat functions, they are activated and controlled
via the control panel (see page30ff.).
• Pressing the [Mode] button activates control of the first power seat function.
• The LCD screen indicates the currently selected seat function (see the following section "Joystick functions").
The driving function is not available at this time and the speed level indicator switches off.
• To switch between the various seat functions, press the [Mode] button briefly or move the joystick to the right.
• Once a seat function is activated, it is adjusted by moving the joystick forward or backward.
• The electric motor moves the seat according to the seat function as long as the joystick is deflected and stops
at the end positions.
• Holding the [Mode] button again deactivates the seat function in the selected position. The driving function is
available again and the speed level indicator on the LCD screen lights up again.
Procedure when using the TEN° control panel
• Activate the "Seating" mode by pressing the [Profile/Mode] button (see page37ff.). The LCD screen indicates
the selected mode (see the following section "Joystick functions"). Depending on programming, the [Pro
file/Mode] button may need to be pressed a number of times.
• Moving the joystick to the left/right switches between the seat functions in "Seating" mode. The LCD screen
indicates the currently selected seat function (see the following section "Joystick functions"). The driving func
tion is not available at this time and the speed level indicator switches off.
• Once a seat function is activated, it is adjusted by moving the joystick forward or backward.
• The electric motor moves the seat according to the seat function as long as the joystick is deflected and stops
at the end positions.
• Exit the "Seating" mode by pressing the [Profile/Mode] button again. You can now toggle through the driving
function or other modes (e.g.Bluetooth mode).
