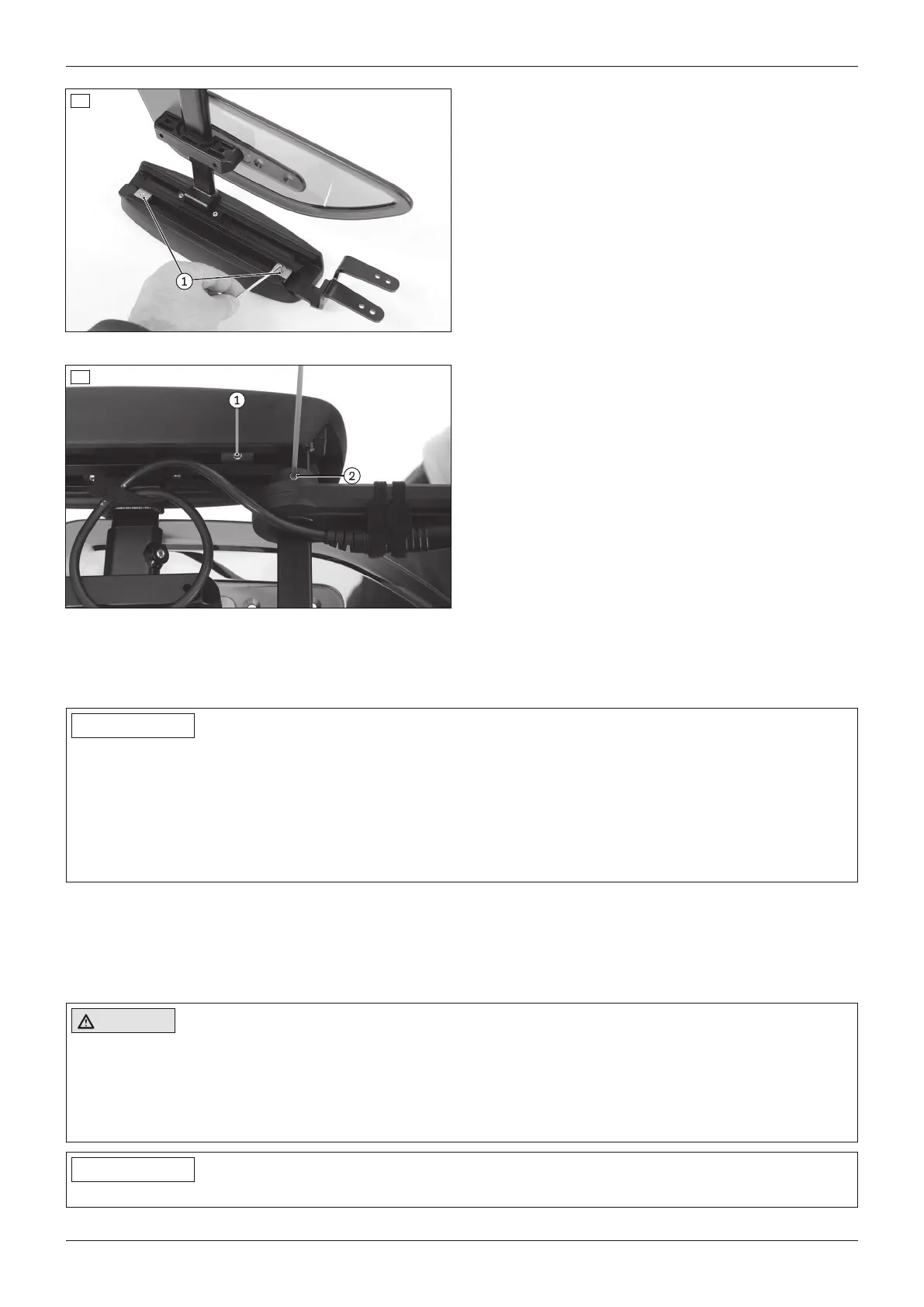

Adjusting the depth of the control panel position
1) Loosen the set screws on the bottom of the armrest
(see fig.10, item1).
2) Slide the rail with the control panel forwards or
backwards.
INFORMATION: If the control panel rail is too
long it can be shortened. Please contact the
qualified personnel who adjusted your product.
3) Tighten the set screws on the bottom of the arm
rest.
11
Adjusting the depth of the control panel position
1) Loosen the set screws on the bottom of the armrest
(see fig.11, item1).
2) Slide the rail with the control panel forwards or
backwards.
INFORMATION: If the control panel rail is too
long it can be shortened. Please contact the
qualified personnel who adjusted your product.
3) Tighten the set screws on the bottom of the arm
rest.
Adjusting the height of the control panel position
1) Loosen the set screw on the height adjustment (see
fig.11, item2).
2) Adjust the height.
3) Tighten the set screw on the height adjustment.
7.3 Legrests
INFORMATION
► Please note that Ottobock has delivered this power wheelchair without legrests as per the order.
► Prior to using the legrests from another manufacturer, please read and observe the instructions for use / man
ufacturer's instructions from the other manufacturer. These are included with the instructions for use.
► In case of questions or problems with these accessories, please contact the qualified personnel who adjusted
this product.
► Ottobock assumes no liability for combinations with accessories from other manufacturers not included in
Ottobock's modular system.
The legrests support the user's feet.
The height of the legrests has been adjusted by qualified personnel to the length of the user's lower leg.
The angle of the footrest has been set by the qualified personnel so that it allows the ankles to rest in a comfortable
position.
7.3.1 Removing/installing the leg supports
CAUTION
Incorrect handling when getting in
Crushing, pinching, impacts due to incorrect handling
► Do not reach into the danger area with your fingers when folding the legrest or footplates up or down.
► Never step on the footplates when getting in and out.
► Note projecting edges.
INFORMATION
For detaching/attaching the power legrests: see page76.
20
Use
490E75=1_C
