Otto Bock 490E75 1 C Series User Manual

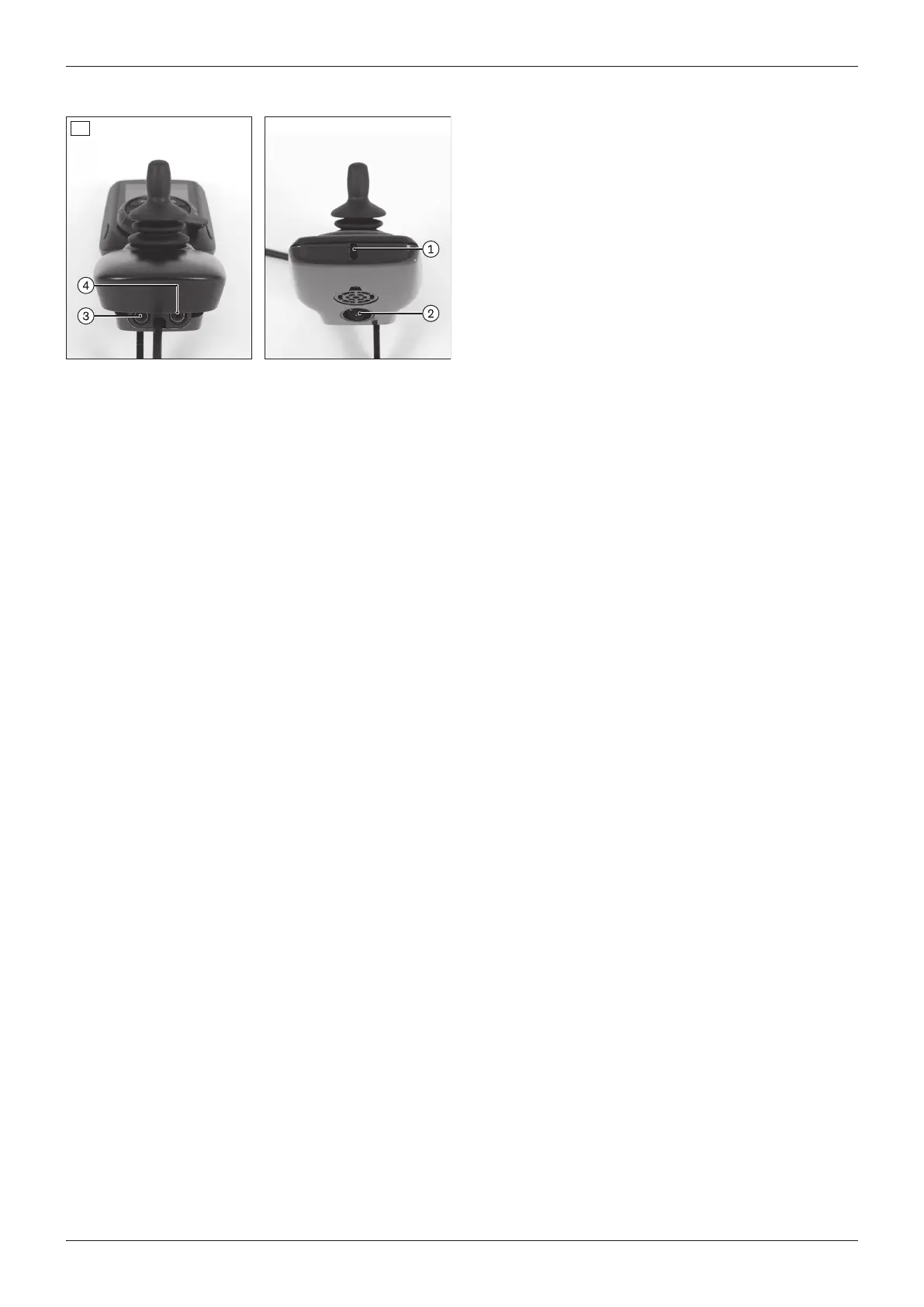

Back side – TEN° control panel
1 Transmitter for infrared signals
2 Charging receptacle
3 Connection for external [Profile] or [Pro
file/mode] button (programmable)
4 Connection for external [on/off] button
35
7.6.4.1.1 Push-button functions
Joystick
The speed and driving direction in a driving profile (e.g."Drive") are controlled with the joystick (see page59).
If the control unit is in "Seating" mode, the seat option can be adjusted by moving the joystick forwards/backwards
(see page77) or switched to the next seat option by moving it left/right.
You can navigate within the operating modes (e.g. "Bluetooth Devices"mode) by moving the joystick for
wards/backwards or right/left.
[Direction indicator left – on/off] button; [Direction indicator right – on/off] button
Pressing these buttons activates/deactivates the respective front and rear direction indicators.
If the power wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[On/off] button
Pressing this button turns the power wheelchair on or off (see page58). In combination with additional operating
steps, it also activates/deactivates the drive-away lock (see page61).
[Lights on/off] button
The front and rear lights are activated/deactivated by pressing this button.
If the power wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[Warning flashers on/off] button
All 4 warning flashers are activated or deactivated when this button is pressed.
If the power wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[Profile/mode] button
Pressing this button retrieves the available driving profiles and operating modes of the control system in succes
sion (dependent on programming and connected devices).
The system first switches from one driving profile to the next driving profile (e.g."Drive"; "Speciality Control"; ...;
"No Assist"; "Attendant"). The number of driving profiles is dependent on programming. After reaching the last
driving profile, you can switch to the operating modes by pressing the button again.
The programmed operating modes are now toggled through ("Seating"; "Bluetooth Devices"; "IR Menu"; "I/O
Module"). The number of operating modes is dependent on programming. The joystick is used to navigate within
the operating modes (see above). After reaching the last mode, you can switch back to the first driving profile,
"Drive", by pressing the button again.
[Horn] button
The horn sounds as long as the button is pressed.
Rotary multi-selector right: [Increase speed]
Moving the rotary multi-selector to the right increases the speed level (see page58). The acoustic signal changes
when the maximum speed level is reached. Depending on the programming of the control system, additional sym
bols may be displayed when the rotary multi-selector is operated.
38
Use
490E75=1_C
