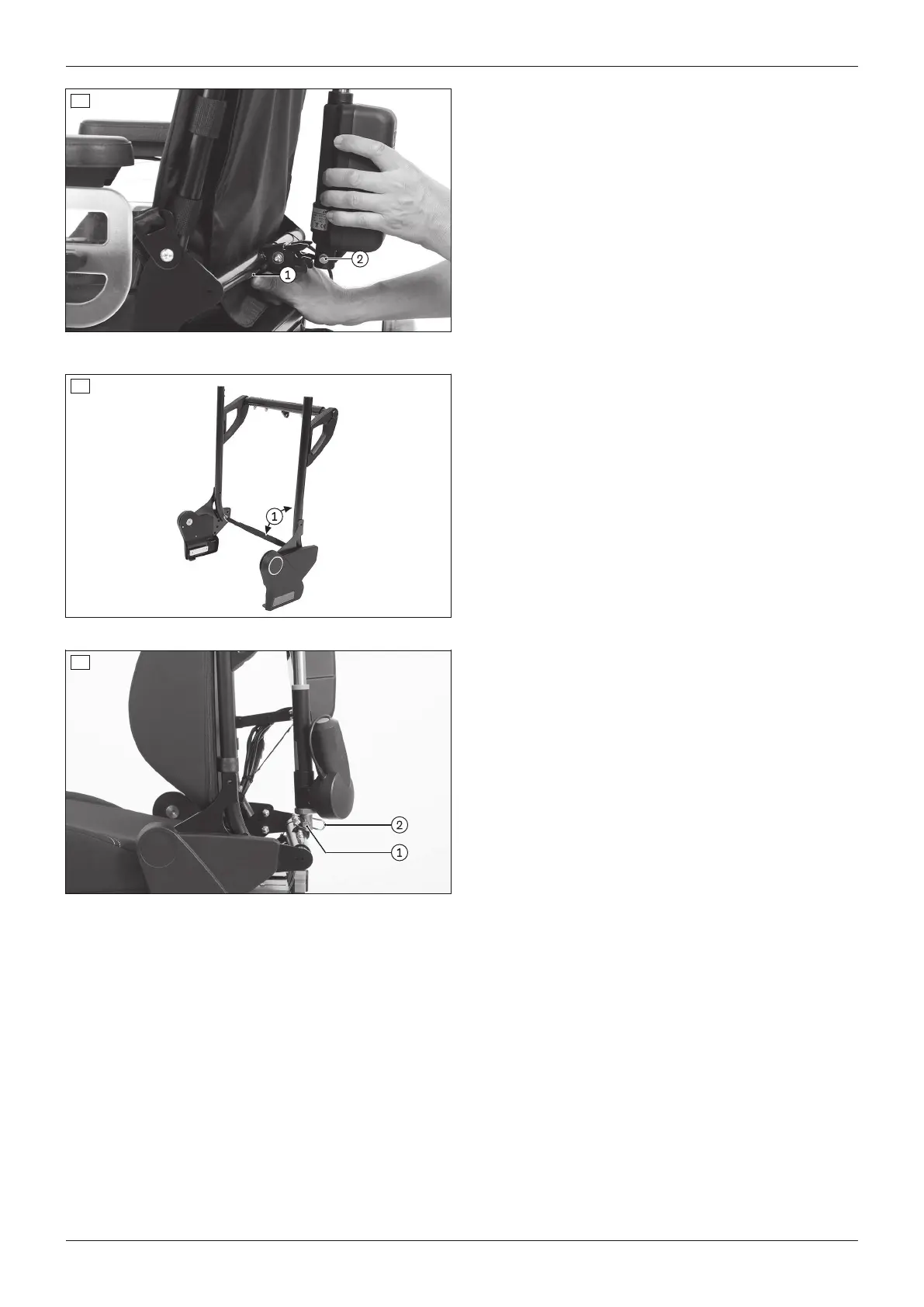

21
Folding up the back support
1) Fold the back support up.
2) Push the lock lever down (see fig.21, item1).
3) Place the cross bolt on the end of the actuator into
the bracket (see fig.21, item2).
4) Release the lock lever until the cross bolt engages.
5) Check to ensure the lock is securely engaged by
pulling on the back support.
Folding down the back support
1) Push the lock lever down (see fig.21, item1).
2) Release the cross bolt on the end of the actuator
from the bracket (see fig.21, item2).
3) Fold the back support down onto the seat.
22
Folding up the backrest
1) Pull on the strap until the locking bolts are free (see
fig.22, item1).
2) Lift the backrest and move it to the desired position.
3) Allow the locking bolts to engage.
4) Check to ensure the lock is securely engaged by
pulling on the backrest.
Folding down the backrest
1) Pull on the strap until the locking bolts are free (see
fig.22, item1).
2) Lay the backrest down on the seat.
23
Folding up the backrest
1) If needed: Remove the side panels.
2) Fold the backrest up.
3) Insert the cotter pin (see fig.23, item 1).
4) Lock the cotter pin (see fig.23, item 2).
5) Check to ensure the lock is securely engaged by
pulling on the backrest.
6) If needed: Reinstall the side panels.
Folding down the backrest
1) If needed: Remove the side panels.
2) Unlock the cotter pin (see fig.23, item 2).
3) Pull out the cotter pin (see fig.23, item 1).
4) Lay the backrest down on the seat.
5) If needed: Reinstall the side panels.
7.4.2 Adjusting the back support angle
The back angle can be adapted to the particular needs of the user.
Adjusting the back angle using the strap
1) Pull on the strap until the locking bolts are free (see fig.20, item1).
2) Move the backrest to the desired position.
3) Allow the locking bolts to engage.
4) Check to ensure the lock is securely engaged.
Adjusting the back angle using the strap
1) Pull on the strap until the locking bolts are free (see fig.22, item1).
2) Move the backrest to the desired position.
3) Allow the locking bolts to engage.
24
Use
490E75=1_C
