Display Information
Flashing light
Battery overvoltage
Further LED display functions
Further LED display symbols are described in the following sections:
• Section "Selecting the speed levels" (see page58)
• Section "Drive-away lock" (see page61)
• Section "Troubleshooting" (see page106)
• Section "Power seat functions" (see page73)
7.6.2 R-Net control device with CJSM control panel
CAUTION
Risk of uncontrolled driving behaviour
Falling, tipping, collision with persons or nearby objects due to interference from electromagnetic fields
► Switch all mobile devices off while driving.
► Turn the control unit off when it is not needed.
The power wheelchair is controlled by an R-Net control device in combination with the CJSM control panel.
Because the control unit is programmable, it can be adapted to the personal requirements of the user; e.g.the
speed, acceleration and deceleration values can all be adapted.

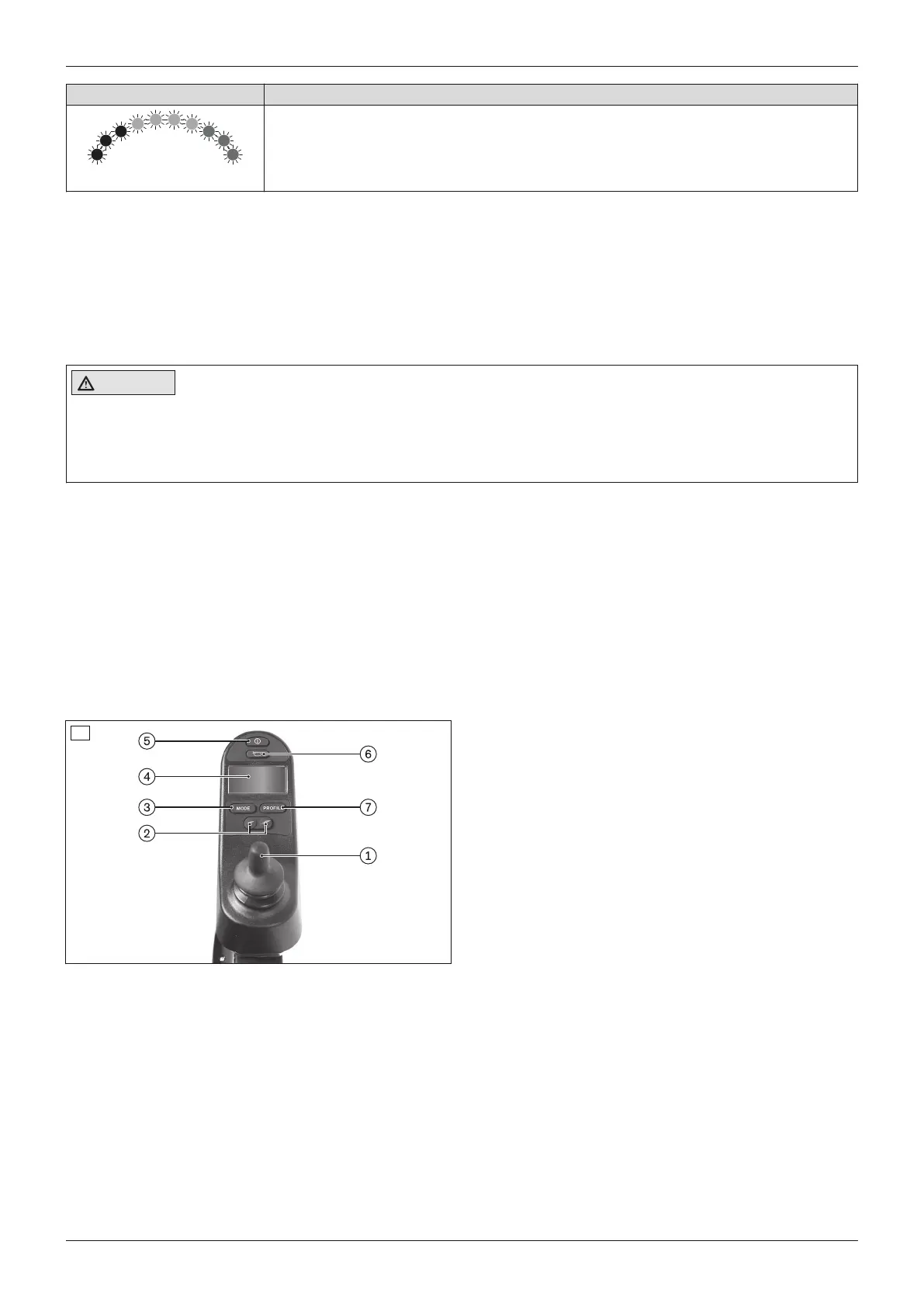

7.6.2.1 Control panel
The power wheelchair is operated using the control panel.
The control panel consists of a button section, LCD screen and joystick. The charging receptacle and two inputs
for external buttons are located on the underside.
The control panel is used to switch the power wheelchair on and off, enter driving commands and display the cur
rent status of certain functions and components.
Front
1 Joystick
2 [Slow Speed] button; [Fast Speed] button
3 [Mode] button
4 LCD screen (colour)
5 [On/Off] button
6 [Horn] button
29
7 [Profiles] button
30
Use
490E75=1_C
