INFORMATION
At temperatures of < 0°C/32°F the battery capacity drops by up to 35% in relation to the capacity for an outside
temperature of 20°C/68°F. This shortens the range of the power wheelchair accordingly. Moreover at low tem
peratures the charge level displayed on the control panel can differ more significantly from the actual battery
capacity.
Further LED display functions
Further LED display symbols are described in the following sections:
• Section "Selecting the speed levels" (see page58)
• Section "Drive-away lock" (see page61)
• Section "Troubleshooting" (see page106)
• Section "Power seat functions" (see page73)
7.6.3.3 Adjustment possibilities
The user cannot change any settings on the display.
7.6.4 R-Net control device with TEN° control panel/TEN° LCD module
CAUTION
Risk of uncontrolled driving behaviour
Falling, tipping, collision with persons or nearby objects due to interference from electromagnetic fields
► Switch all mobile devices off while driving.
► Turn the control unit off when it is not needed.
The power wheelchair is controlled by an R-Net control device.
Because the control unit is programmable, it can be adapted to the personal requirements of the user; e.g.the
speed, acceleration and deceleration values can all be adapted.
7.6.4.1 TEN° control panel
INFORMATION
For the display functions on the LCD screen: see page40.
The power wheelchair is operated using the control panel.
The control panel consists of a button section, LCD screen and joystick. The charging receptacle and two inputs
for external buttons are located on the underside.
The control panel is used to switch the power wheelchair on and off, enter driving commands and display the cur
rent status of certain functions and components.

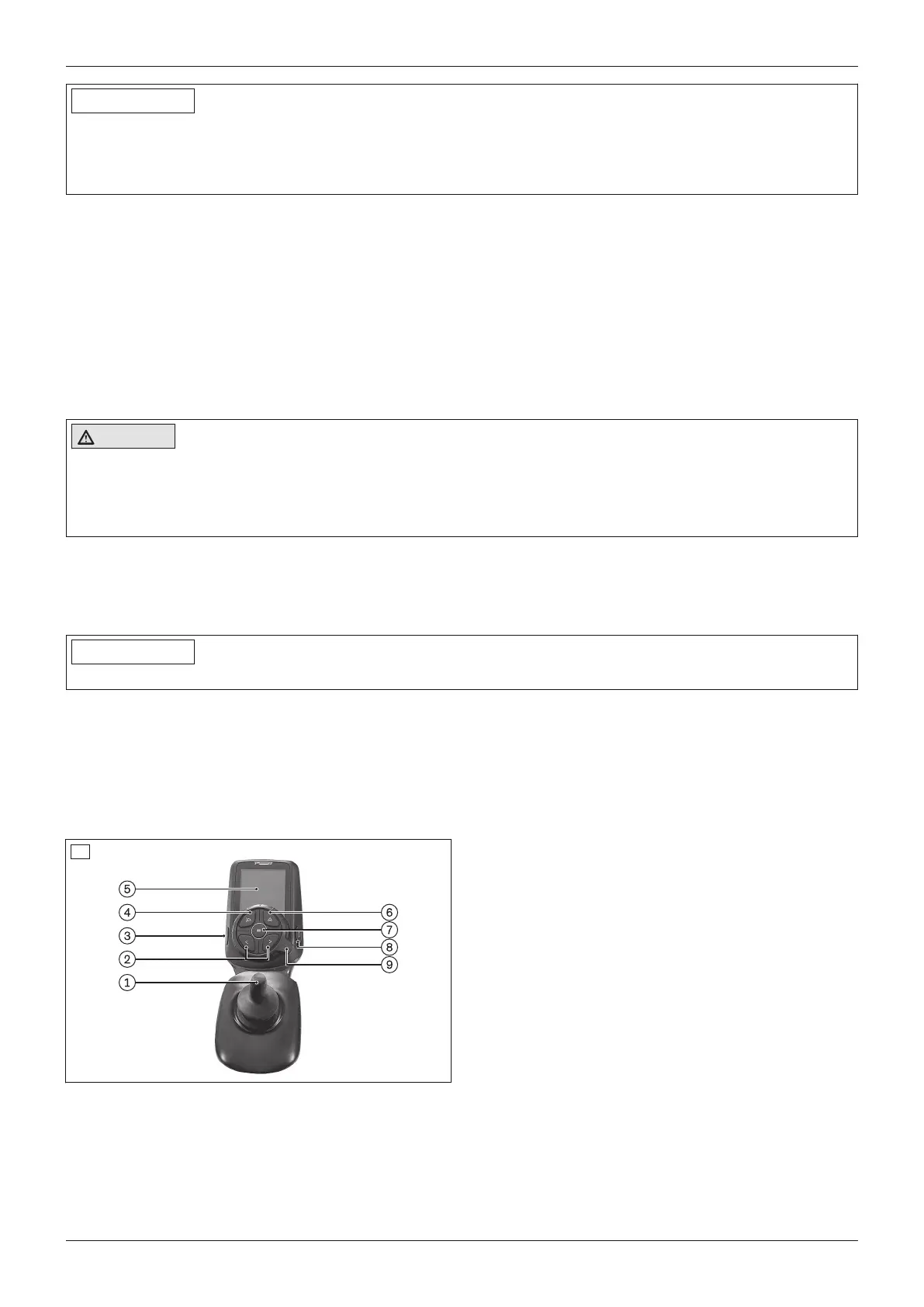

Front side – TEN° control panel
1 Joystick
2 [Direction indicator left – on/off] button
[Direction indicator right – on/off] button
3 [On/off] button
4 [Lights on/off] button
5 LCD screen
6 [Warning flashers on/off] button
7 [Profile/mode] button
8 [Horn] button
9 Rotary multi-selector
right: [Increase speed];
left: [Decrease speed]
34
37490E75=1_C
Use
