Display Information
Flashing light
[Horn] button
The horn will sound as long as the button is pressed.
[Lights on/off] button and LED
The front and rear lights are activated/deactivated by pressing this button. The LED above the button lights up after
activation.
If the wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[Warning flasher on/off] button and LED
All four warning flashers are activated/deactivated when this button is pressed. The LED above the button lights up
after activation.
If the wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[Direction indicator right] and [Direction indicator left] buttons and LED
Pressing these buttons activates/deactivates the respective front and rear direction indicators. The LED above the
button lights up after activation.
If the wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).

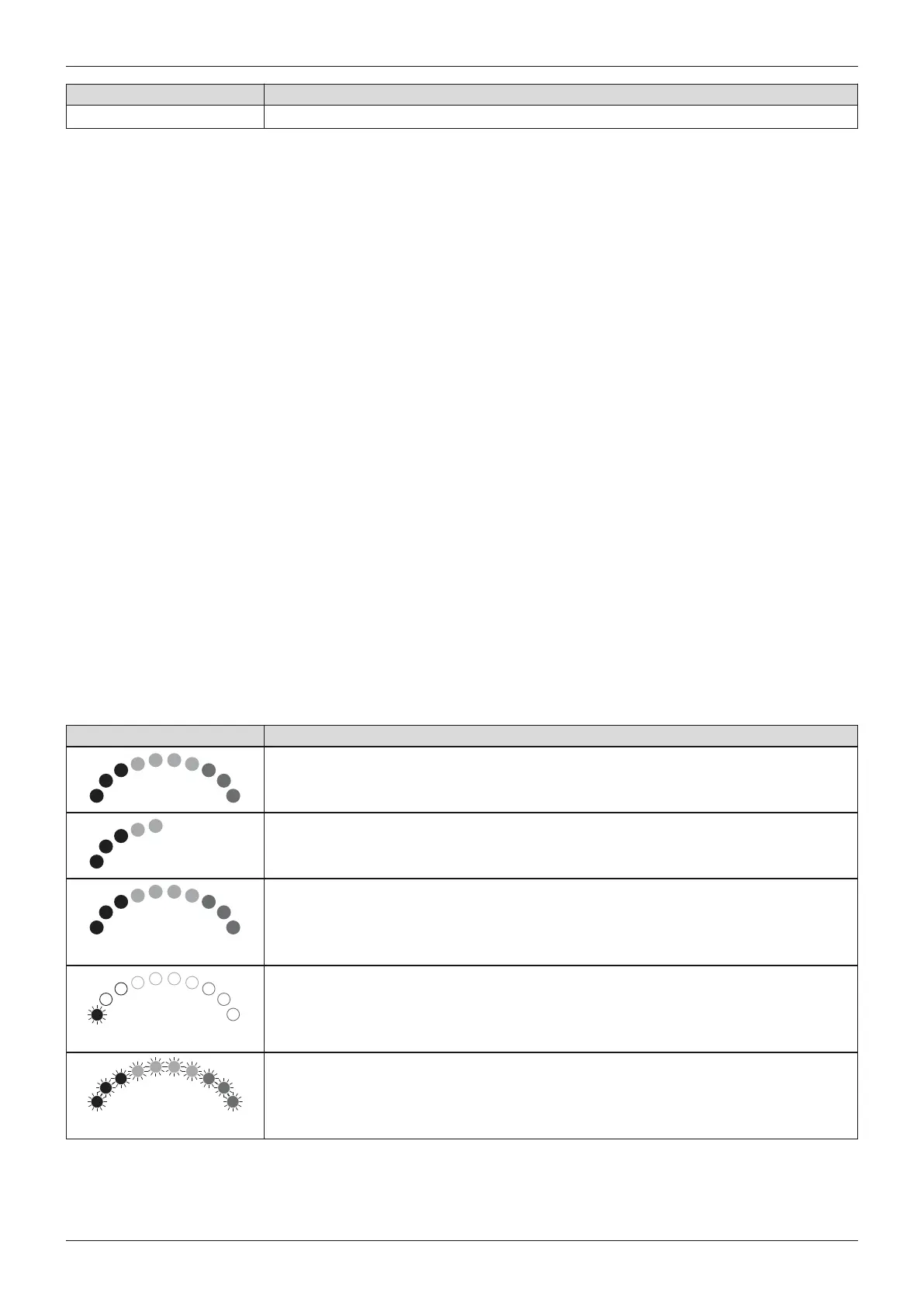

[Charge level] LED display
The [Charge level] LED display is divided into 10 segments and shows the current charge level:
• After brief operation, the battery indicator shows the exact battery status.
• A charge of 100% corresponds to 10 segments on the battery symbol.
• As the remaining battery charge decreases, the LED segments turn off one by one.
• If only one segment of the LED display is flashing, then the battery is in an undervoltage state. The battery must
be charged immediately.
• If all 10 LED segments are flashing, this means that the battery is in an overvoltage state. Please continue to
drive at low speed only.
• The charging process is indicated by sequential flashing of the LEDs. The driving function is blocked when the
battery is charging.
Battery indicator on the control panel
Display Information
Battery is charged
Charge battery if possible
Sequential indicator
Battery is charging
Flashing light
Battery undervoltage, battery charging urgently required
Flashing light
Battery overvoltage
