Oxford Technical Solutions Ltd Page 33 of 110

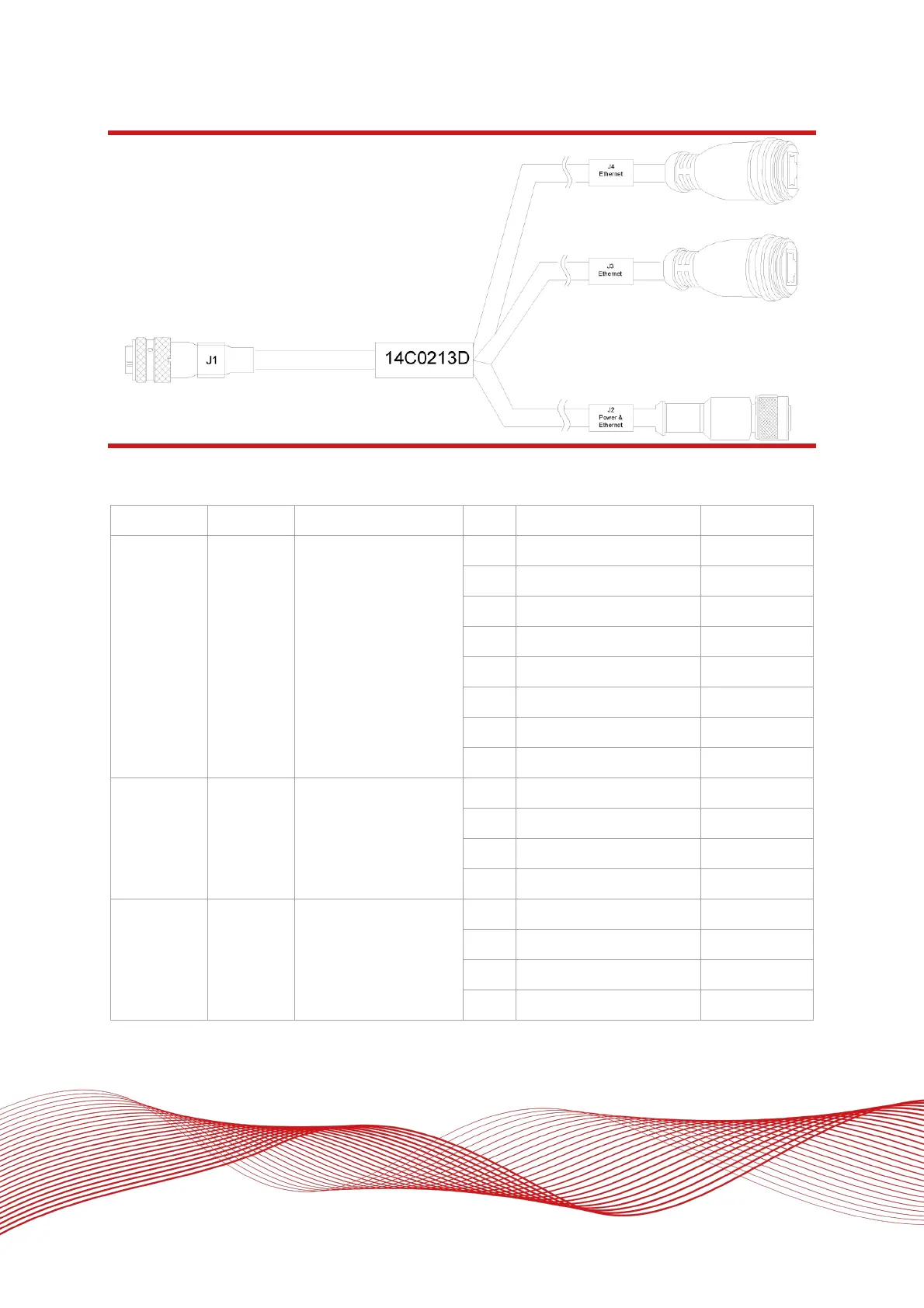

Figure 7: RT3000 v4 auxiliary user cable

Table 14: RT3000 v4 auxiliary user cable pin description

Connector

Interface

Connector details

Function

Terminate to

Power &

Ethernet

8 pole M12 female

1 Tx+ J1-14

2 Tx- J1-20

3 Rx+ J1-13

4 Supply+ J1-11

5 Supply+ J1-11

6 Rx- J1-12

7 Supply- J1-10

8 Supply- J1-10

J3 Ethernet RJ45 socket

1 Ethernet transmit+ J1-15

2 Ethernet transmit- J1-2

3 Ethernet receive= J1-21

6 Ethernet receive- J1-1

J4 Ethernet RJ45 socket

1 Supply+ J1-7

2 Sleeved and made safe J1-6

3 Supply- J1-5

6 Sleeved and made safe J1-17
