Oxford Technical Solutions Ltd Page 88 of 110

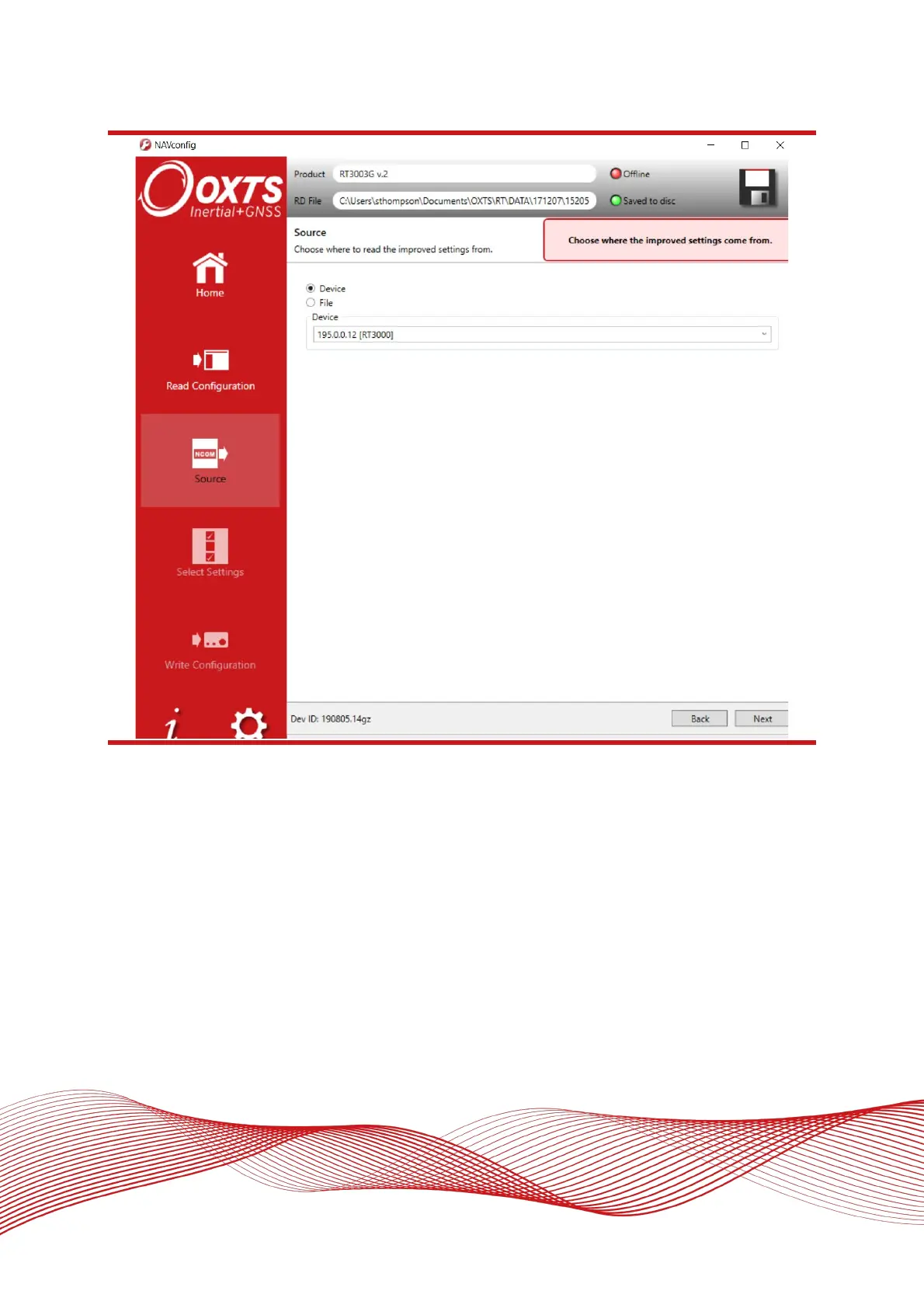

Figure 46: NAVconfig improve configuration data source

The Select Settings screen will appear. From the list displayed, select the settings that you wish to view. These

will be determined according to what is enabled on your device.
