ADF SERIES® OPERATION MANUAL
SECTION 4: TECHNICAL SPECIFICATIONS
Entire Contents Copyright  2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 28 of 349

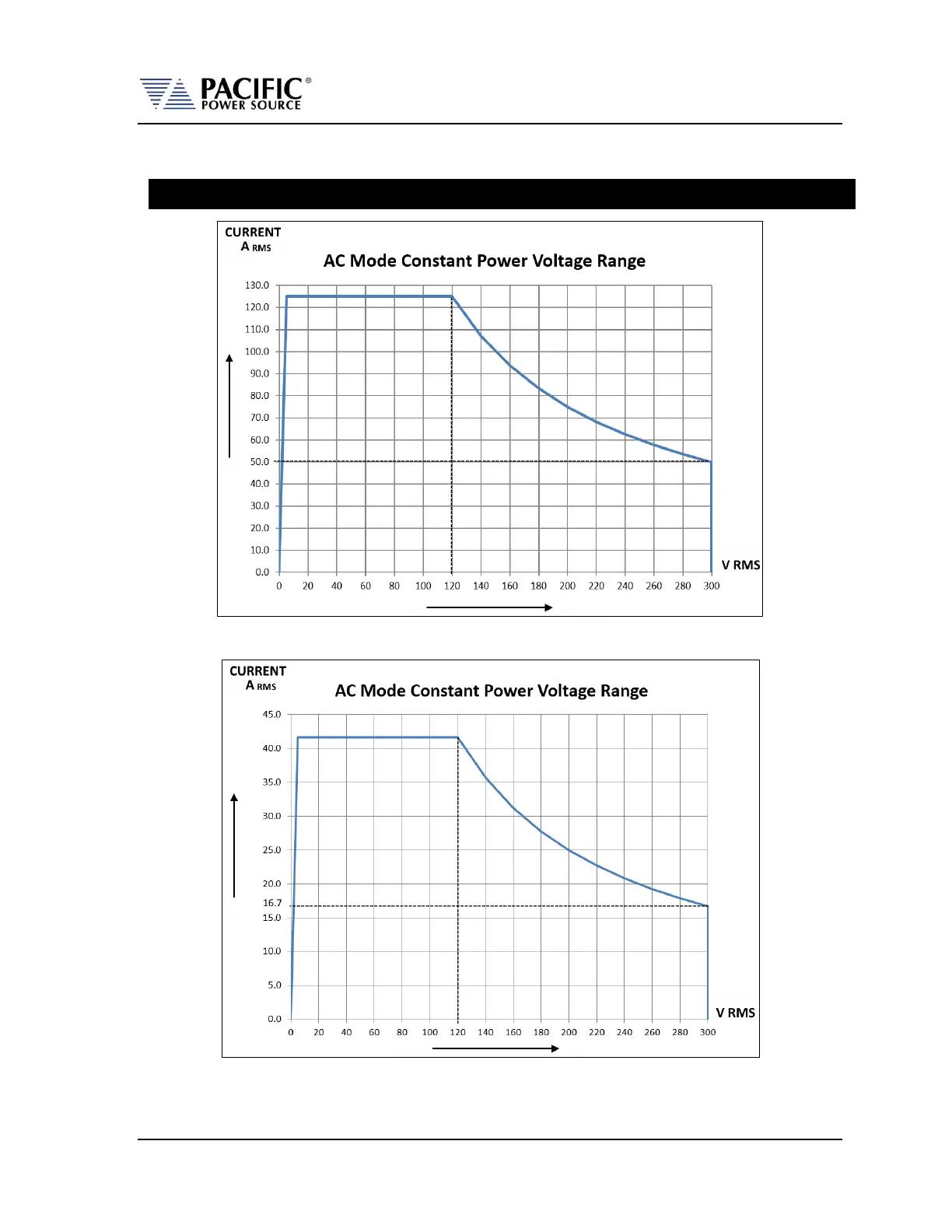

4.3.2 AC Voltage and Current Output Charts
AC VOLTAGE RANGES
Figure 4-3: AC Mode Voltage/Current range, 1150ADF Model
Figure 4-4: AC Mode Voltage/Current range, 3150ADF Model per Phase
