ADF SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 80 of 349
28 U
AFX CABINET 1
MASTER
28 U
AFX CABINET 2
SLAVE
BUNDLE PHASE WIRES
WITH NEUTRAL WIRE(S)
BUNDLE PHASE WIRES
WITH NEUTRAL WIRE
(S)
ALL WIRES LENGTHS
MUST BE EQUAL
JUNCTION
TERMINAL
BLOCK
N N C B A
N N C B A AC INPUT
TO LOAD
PARALLEL OPERATION ADF CABINET OUTPUT WIRING AND
CHASSIS GROUND INTERCONNECT
PARALLELING
CABLE
From bottom unit in
Master Cabinet to top
unit in Slave Cabinet
CONNECT
PROVIDED
GROUNDING CABLE
BETWEEN CABINETS
N N C B A AC INPUT

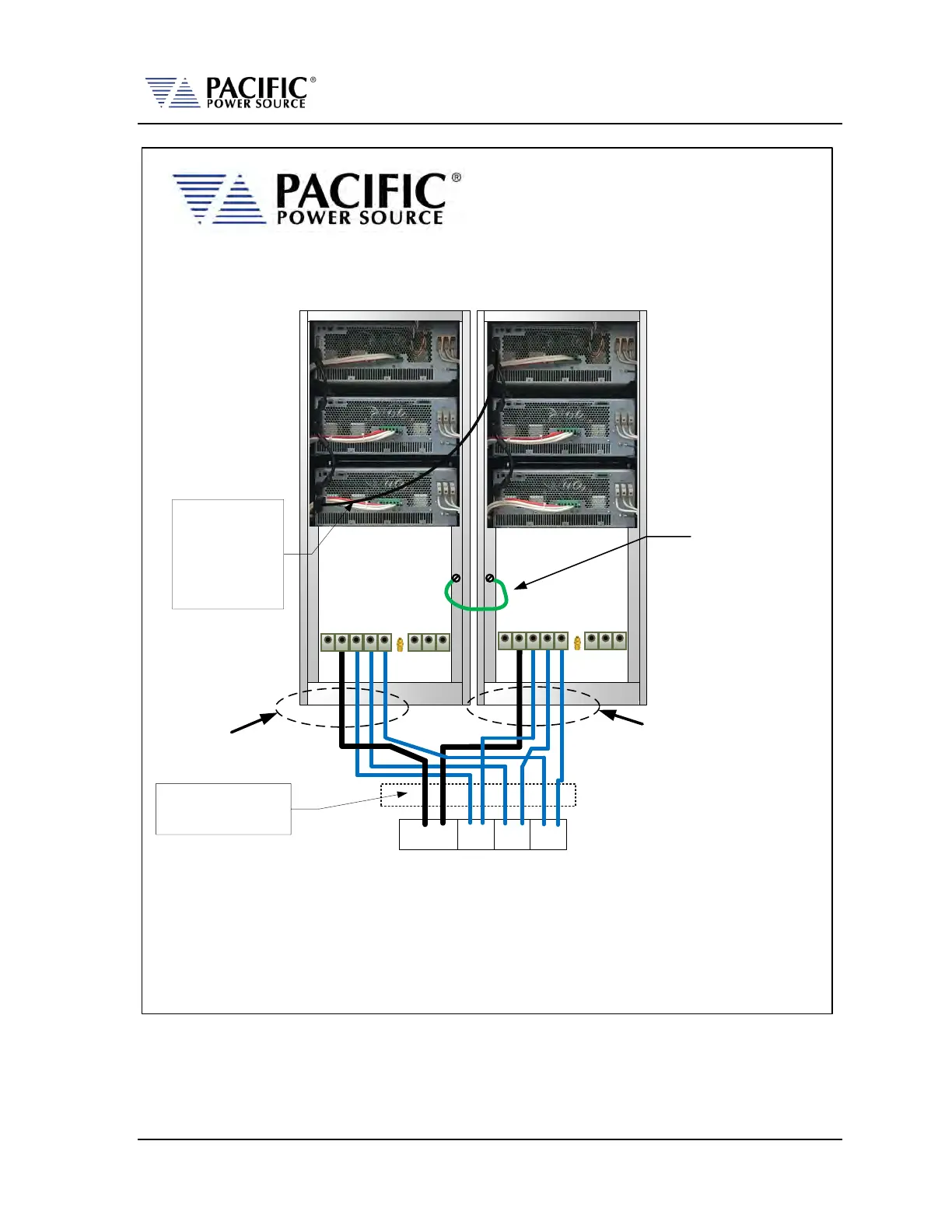

Figure 5-24: Multi-Cabinet Parallel Configuration Output Wiring - 3 Phase
To Next Page
