ADF SERIES™ OPERATION MANUAL
SECTION 10:
LAN Interface Configuration
Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 293 of 349

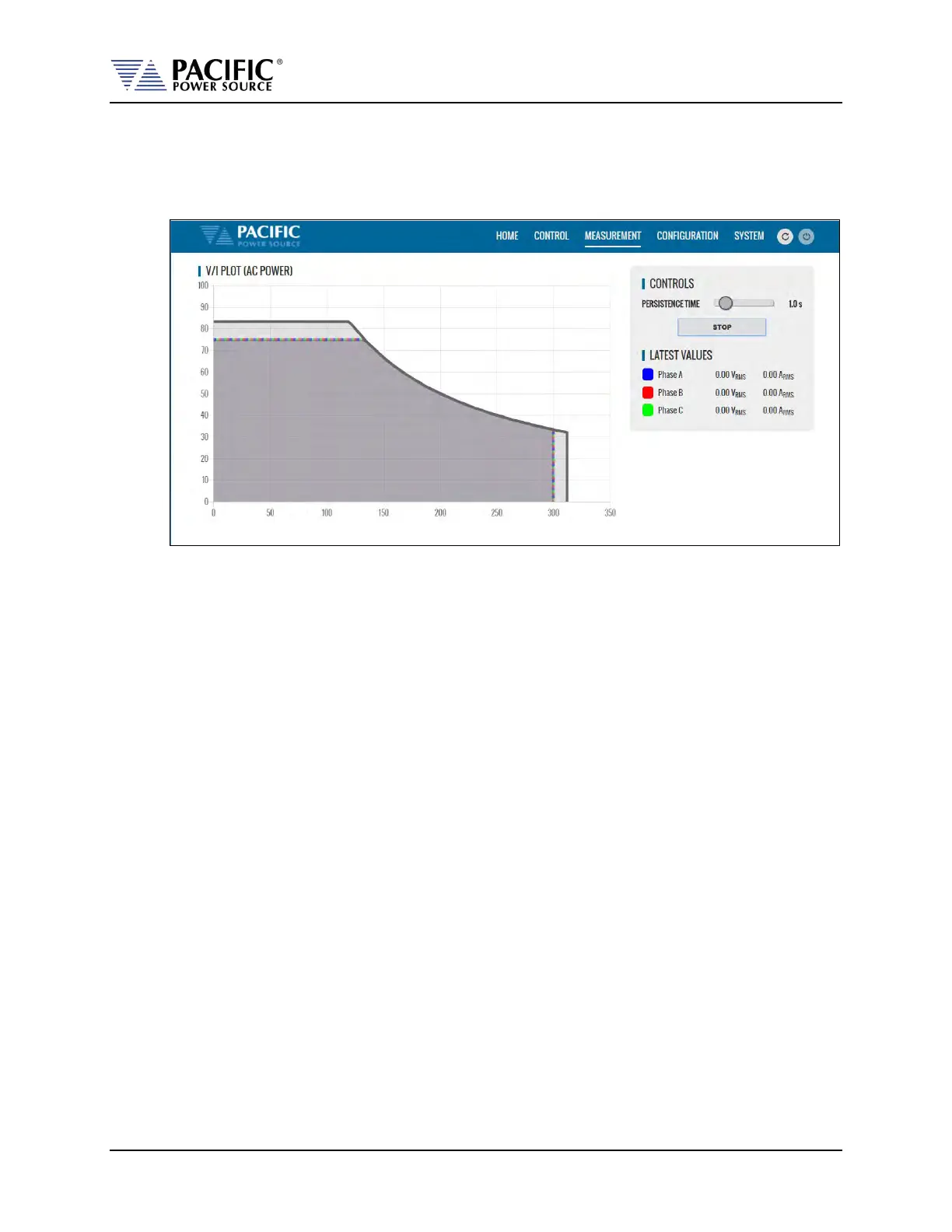

10.8.3 V/I Plot
The V/I plot shows the power operating point at any moment in time by plotting measured
Voltage as a function of measured Current. This plot has a persistence mode so the user can
observe power fluctuations and changes over a set period.
Available selections in this measurement screen are:
• Persistence Time: 1 ~ 60 sec
