Pacific Power Source ADF Series - Figure 5-10: Three Phase Delta Load Output Connections - Internal Voltage Sense

ADF SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
Entire Contents Copyright  2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 56 of 349
The requisite DELTA load output wiring is shown in Figure 5-10 using internal voltage sense
and Figure 5-11 when using external voltage sense.
L2
(B)
L3 (C)
L1 (A)
Vab
Vac
Vbc
NOTE: THREE NEUTRAL
OUTPUT CONNECTOR PINS
(N N N) ARE INTERNALLY
SHORTED TOGETHER.
NO NEUTRAL
CONNECTION TO DELTA
LOADS.
USE PROVIDED MATING CONNECTOR
TO CONNECT LOAD WIRES

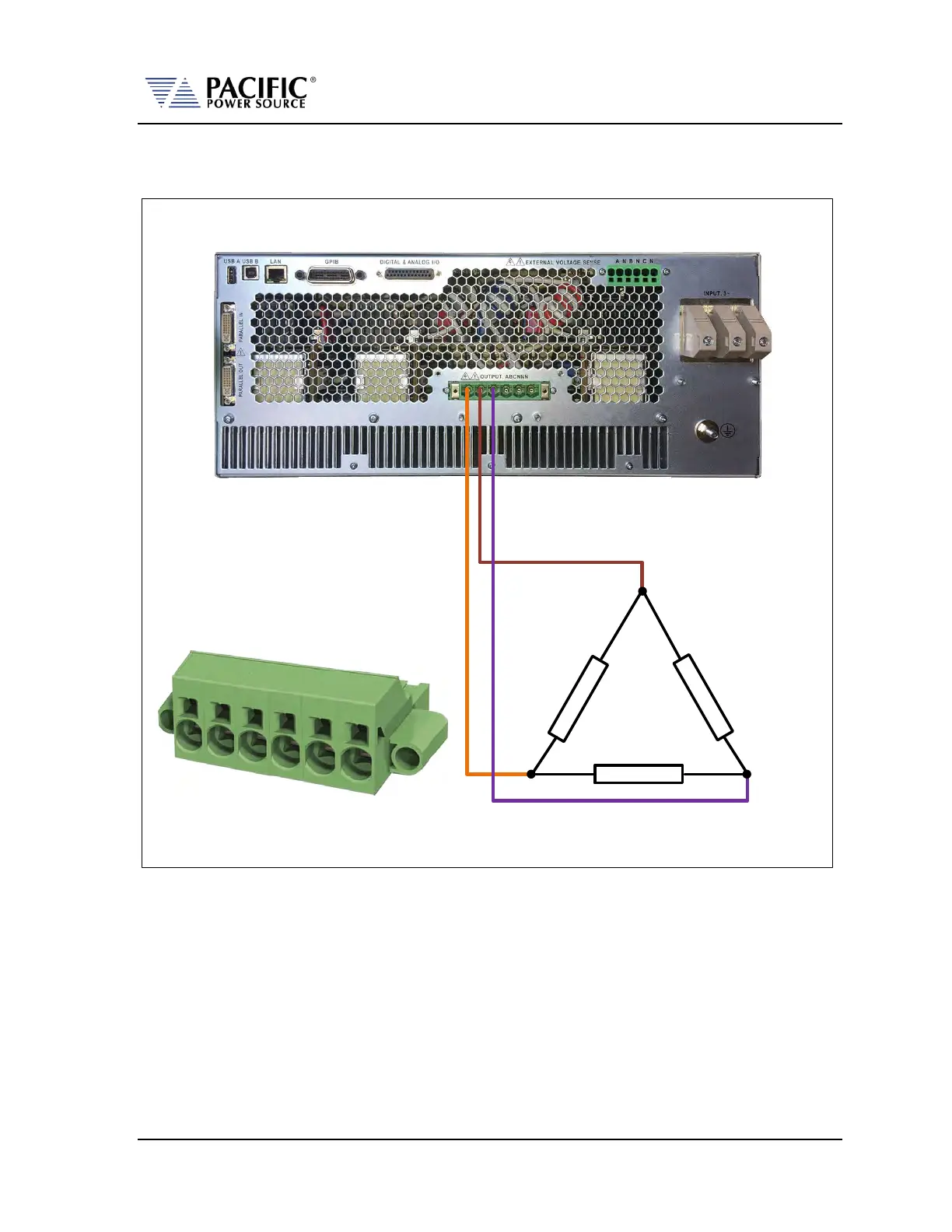

Figure 5-10: Three phase Delta Load Output Connections – Internal Voltage Sense
