ADF SERIES® OPERATION MANUAL
SECTION 4: TECHNICAL SPECIFICATIONS
Entire Contents Copyright  2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 30 of 349
These power and current restrictions are reflected in the charts below for reference.

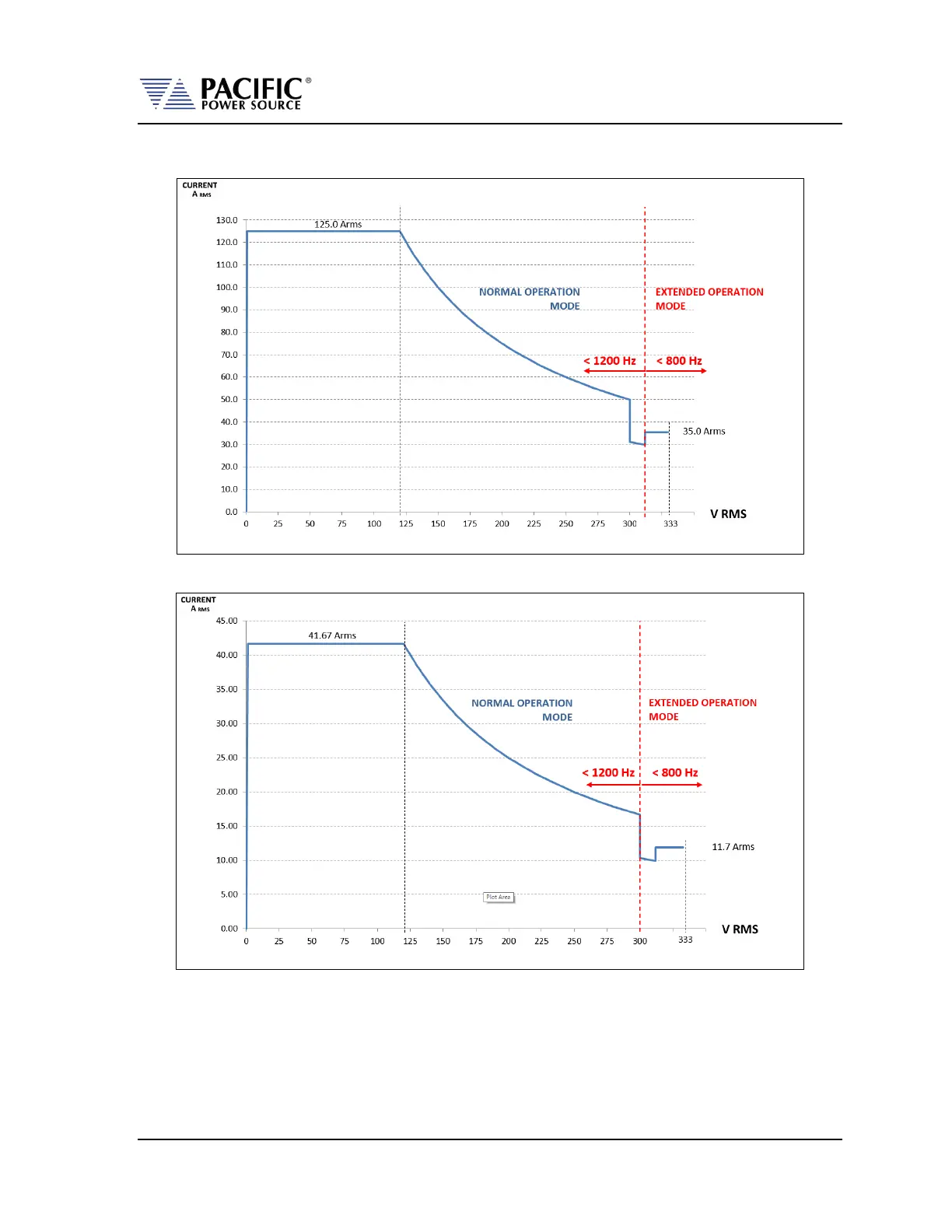

Figure 4-5: Extended AC Voltage/Current Range, 1150ADF Model
Figure 4-6: Extended AC Voltage/Current Range, 3150ADF Model per phase
