ADF SERIES™ OPERATION MANUAL
SECTION 6:
Front Panel Operation
Entire Contents Copyright  2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 89 of 349
6.4.3 Phase Rotation / Phase Sequence
Phase rotation(aka sequence) in three-phase mode is fixed. The default phase rotation of
the ADF is the same as that of legacy PPS UPC controllers.

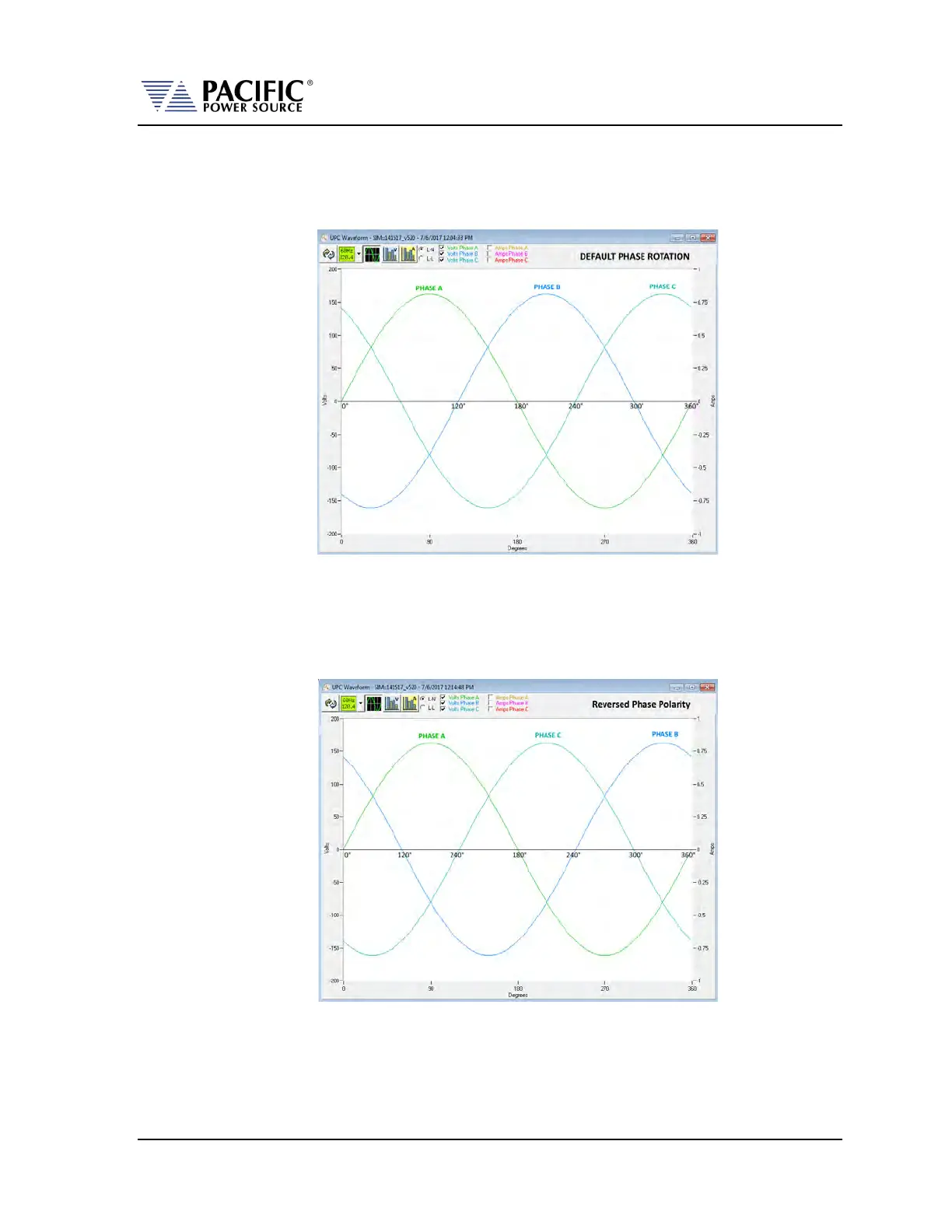

Figure 6-3: Three Phase AC mode Default Phase Rotation
Phase rotation in three-phase mode can be reversed if needed by swapping output
connection wires B and C to the load.
The reversed phase rotation is shown in the figure below for reference.
Figure 6-4: Three Phase AC mode Reversed Phase Rotation
