5.15.3 Dimensions
Cab Size
Height incl. Casters
Width
Depth
18U
1036 mm
600 mm
900 mm
40.8
23.6”
35.4”
28U
1480 mm
600 mm
900 mm
58.3”
23.6”
35.4”
36U
1836 mm
600 mm
900 mm
73.5”
23.6”
35.4”
Figure 5-15: ADF Cabinet Dimensions

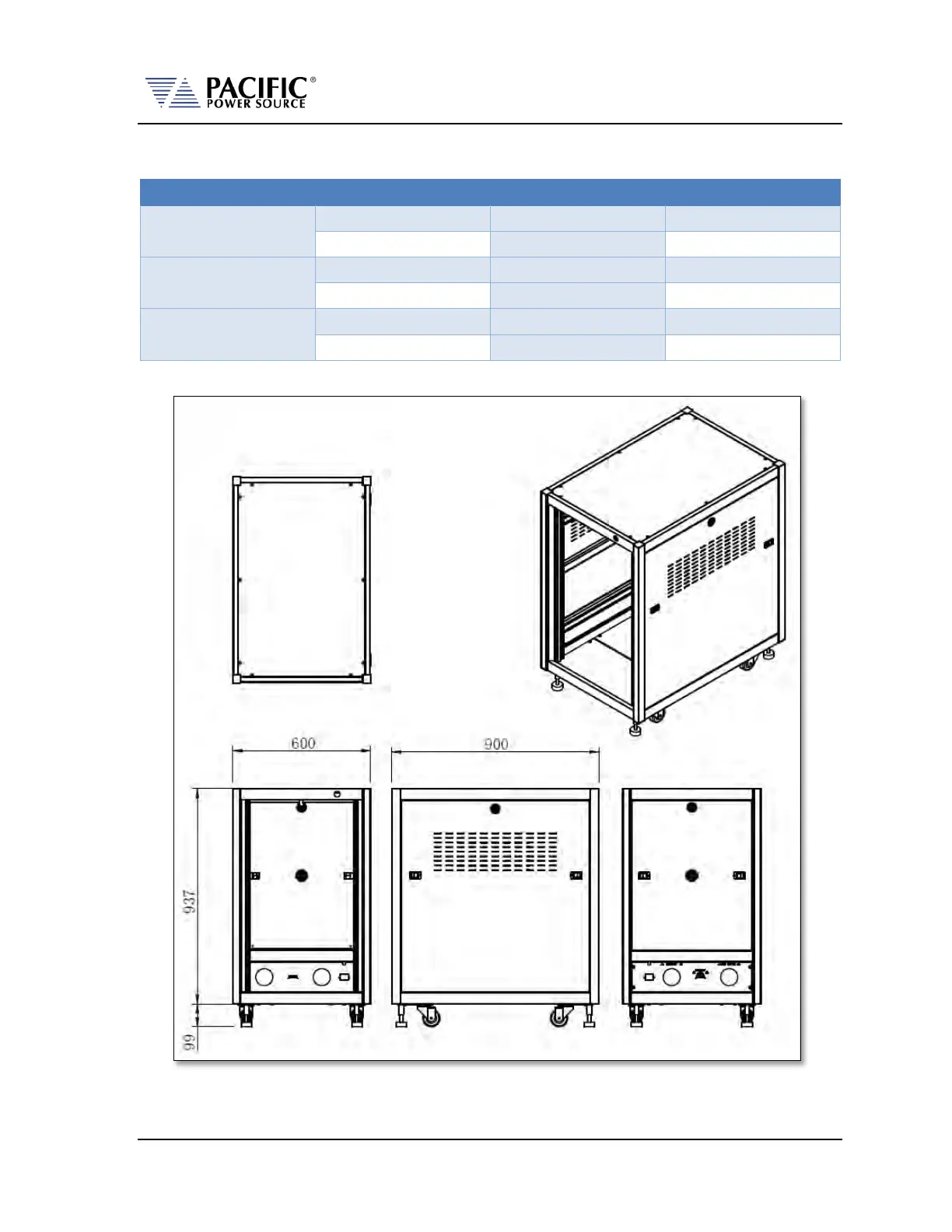

Figure 5-16: Dimension Drawing 18 U Cabinet
