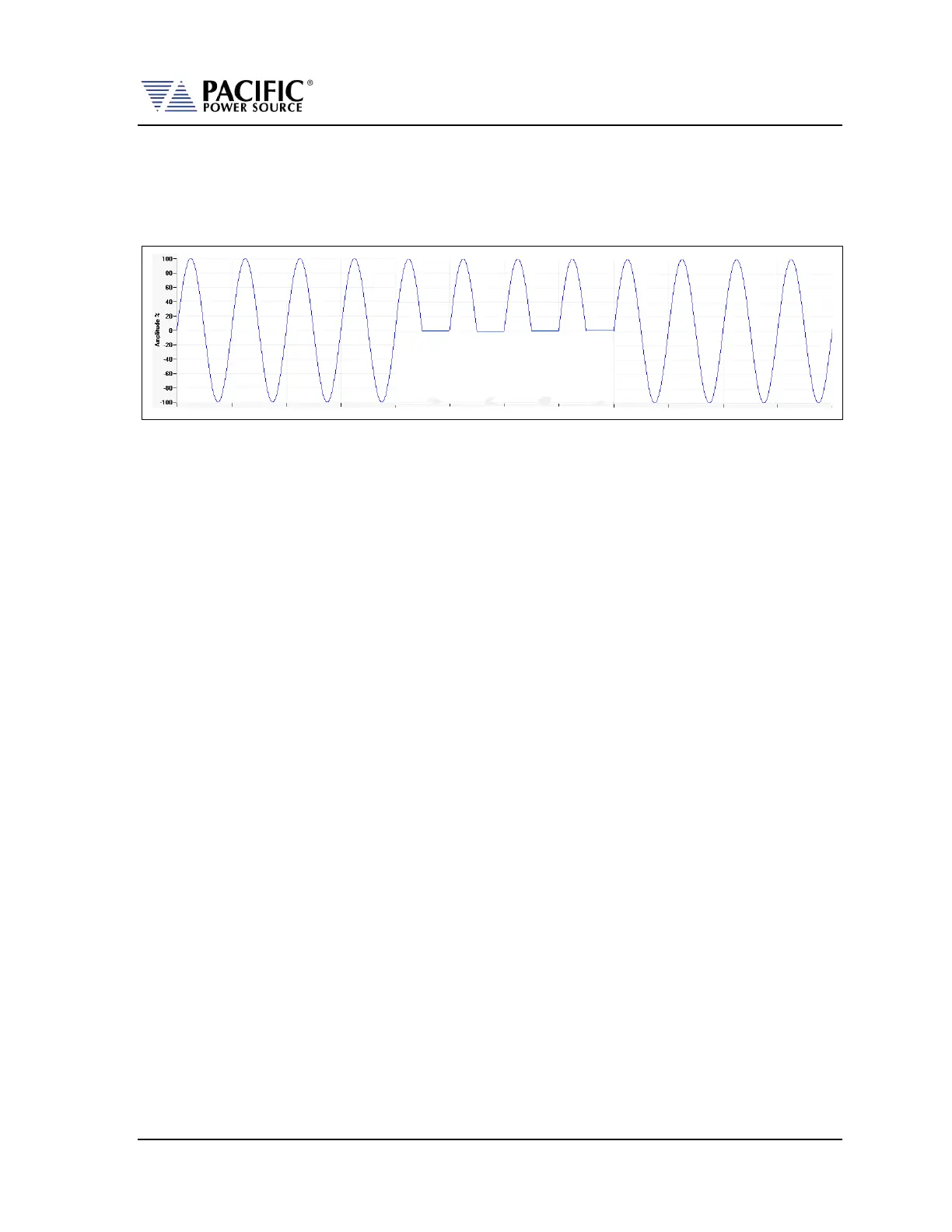

6.4.10.2 AUTO RMS OFF Mode:
Same waveform example but this time with AUTO RMS mode OFF results in no change to
output peak voltage but the actual RMS voltage during these four cycles is only 70.7Vrms
instead of the 100Vrms programmed setting.
Note: In UPC Compatibility mode, this mode is always enabled.
6.4.11 Option V - Extended AC Voltage Range Operation
The standard AC voltage range maximum setting for line-to-neutral voltage programming is
300Vac rms. This setting is equivalent to 520V line-to-line in three-phase mode.
For ADF Series models configured with the V Option (Option V), extended voltage operation
to 320V or even 333V is supported with some restrictions. These restrictions are
determined by the maximum voltage setting programmed:
6.4.11.1 300 – 305 V - Max Voltage 305VL-N / 528VL-L
This setting reflects a 10% over voltage for 277V
L-N
/ 480V
L-N
nominal voltage applications.
Restrictions
• Frequency Range: 45.00 – 100.00 Hz.
• Phase Mode: Available in single, split and three phase modes.
• Output Power:
o Three phase – Full power (no restriction).
o Single and Split phase – Maximum power 3kVA/kW per phase per ADF unit.
6.4.11.2 305 – 312 V - Max Voltage 312V
L-N
/ 540V
L-L
This setting reflects a 30% over voltage for 240V
L-N
/ 415V
L-N
nominal voltage applications.
Restrictions
• Frequency Range: 45.00 – 100.00 Hz.
• Phase Mode: Available in three-phase mode only.
• Output Power:
o Three phase – Maximum power 3kVA/kW per phase per ADF unit.
o Single and Split phase – Not available.
