6.4.7 PROGRAM & MEASUREMENTS Soft Keys

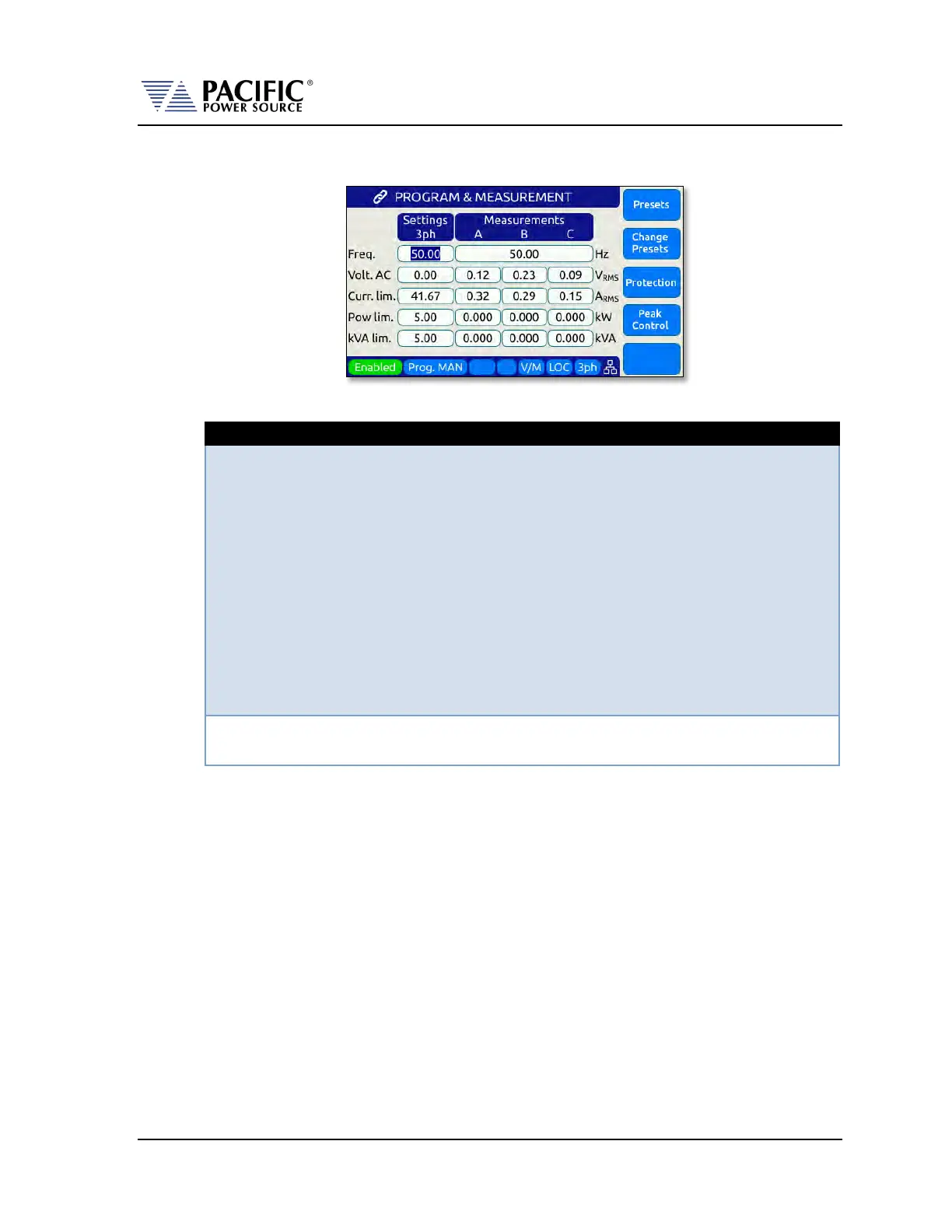

The following five soft keys are available on the main PROGRAM screen.
SOFT KEY
Description
Presets (SK1)
Changes all soft keys to up to five preset values that may be used to
change the selected parameter to any of the preset values shown on
the soft key labels. This provides a quick way to set commonly used
values. It is also possible to reprogram these presets to user specific
values. Refer to Section 6.4.5, “Customizing Output Programming
Preset Soft Key Values” on page 91 for details.
The following presets are offered for the parameters listed:
Frequency 50Hz, 60Hz, 400Hz (800Hz, 1200Hz with Option F)
Voltage AC 115V, 230V, 300V
Current limit MAX, 15A, 4A, PEAK CURRENT
Power limit MAX, 4kW, 2kW, 1kW
kVA limit MAX, 4kVA, 2kVA, 1kVA
Change Preset
(SK2)
Access UNIT CONFIGURATION screen to change preset values.
