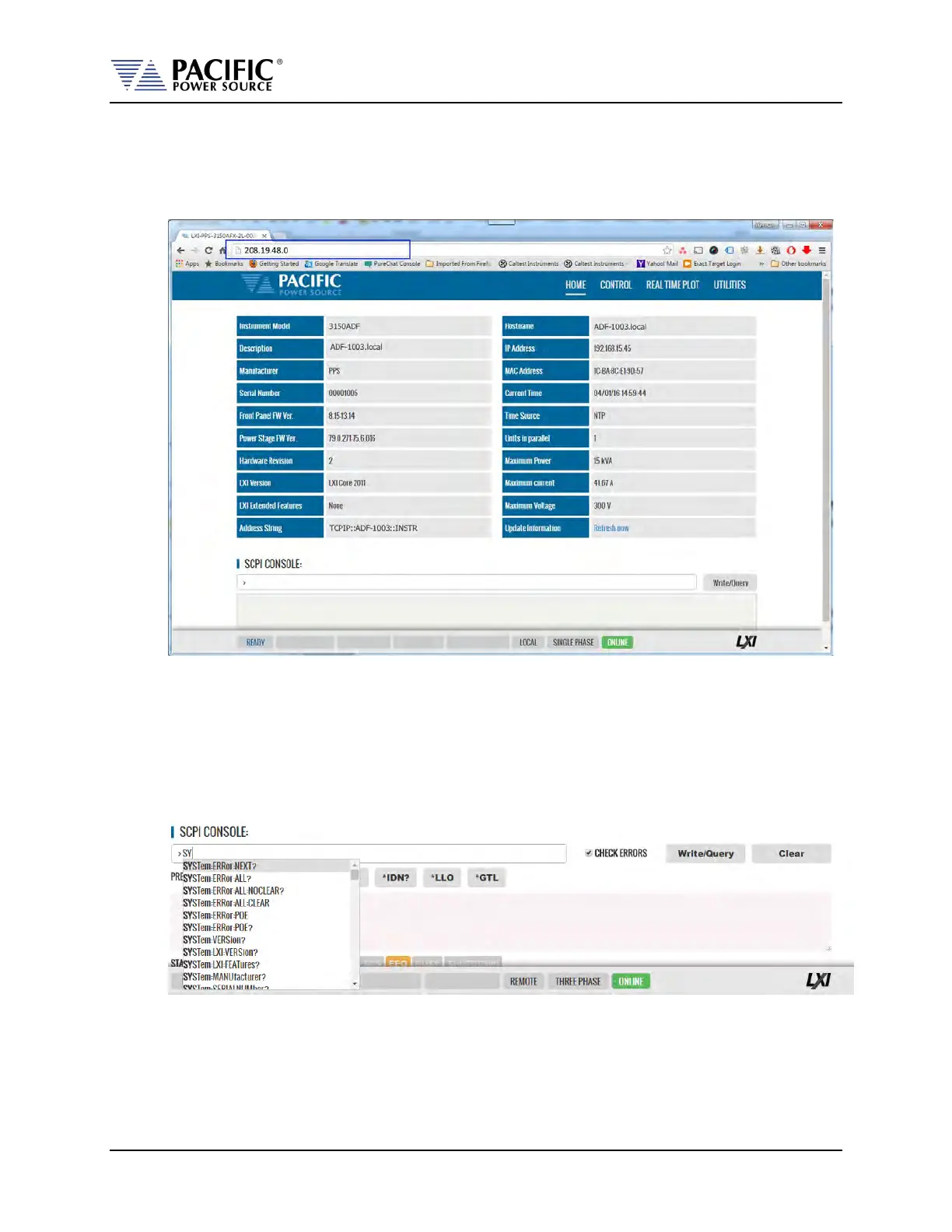

10.6 Home Screen
The Home screen contains all required information relating to the instrument and its LAN
connection as required by the LXI standard. This includes hardware and firmware revision
information.
10.6.1 SCPI Console Command Line Interface
Near the bottom of the screen is an interactive command line interface that allows individual
SCPI commands to be sent to the instrument. Any query results are shown in the text box below
the command line. A drop-down list of all available commands is integrated in the command
line and as you type a command, a match will be tracking in the drop down list allowing you to
select the complete command without typing it out. See sample below after typing “SY”.
