The requisite WYE load output wiring is shown in Figure 5-8 using internal voltage sense and
Figure 5-9 when using external voltage sense.
L2 (B)
L3
(C)
L1 (A)
N
NOTE: THREE NEUTRAL
OUTPUT CONNECTOR PINS
(N N N) ARE INTERNALLY
SHORTED TOGETHER.
USE EITHER ONE OR ALL
FOR THREE PHASE WYE
LOADS.
USE PROVIDED MATING CONNECTOR
TO CONNECT LOAD WIRES

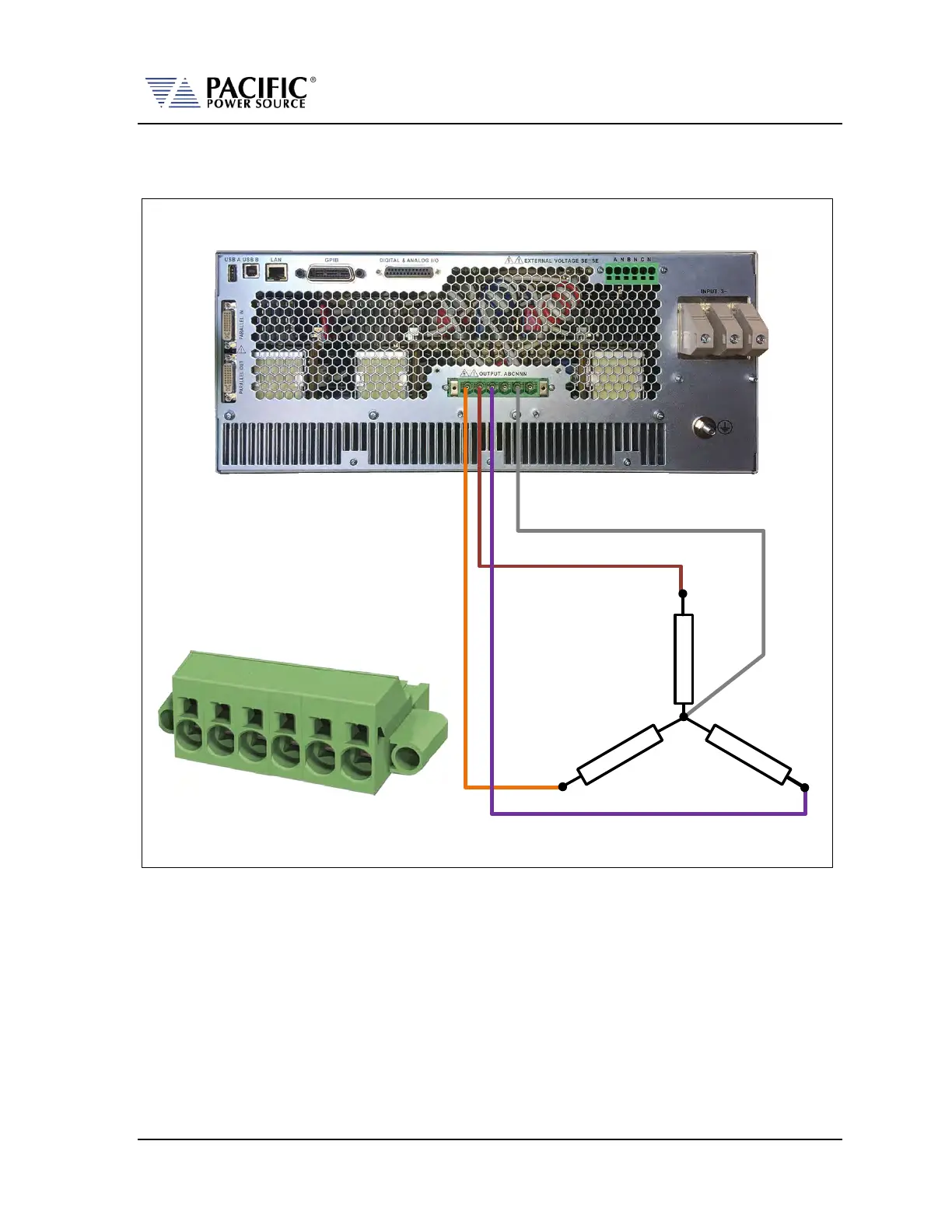

Figure 5-8: Three phase Wye Load Output Connections – Internal Voltage Sense
