SECTION 5: UNPACKING AND INSTALLATION
Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 40 of 349

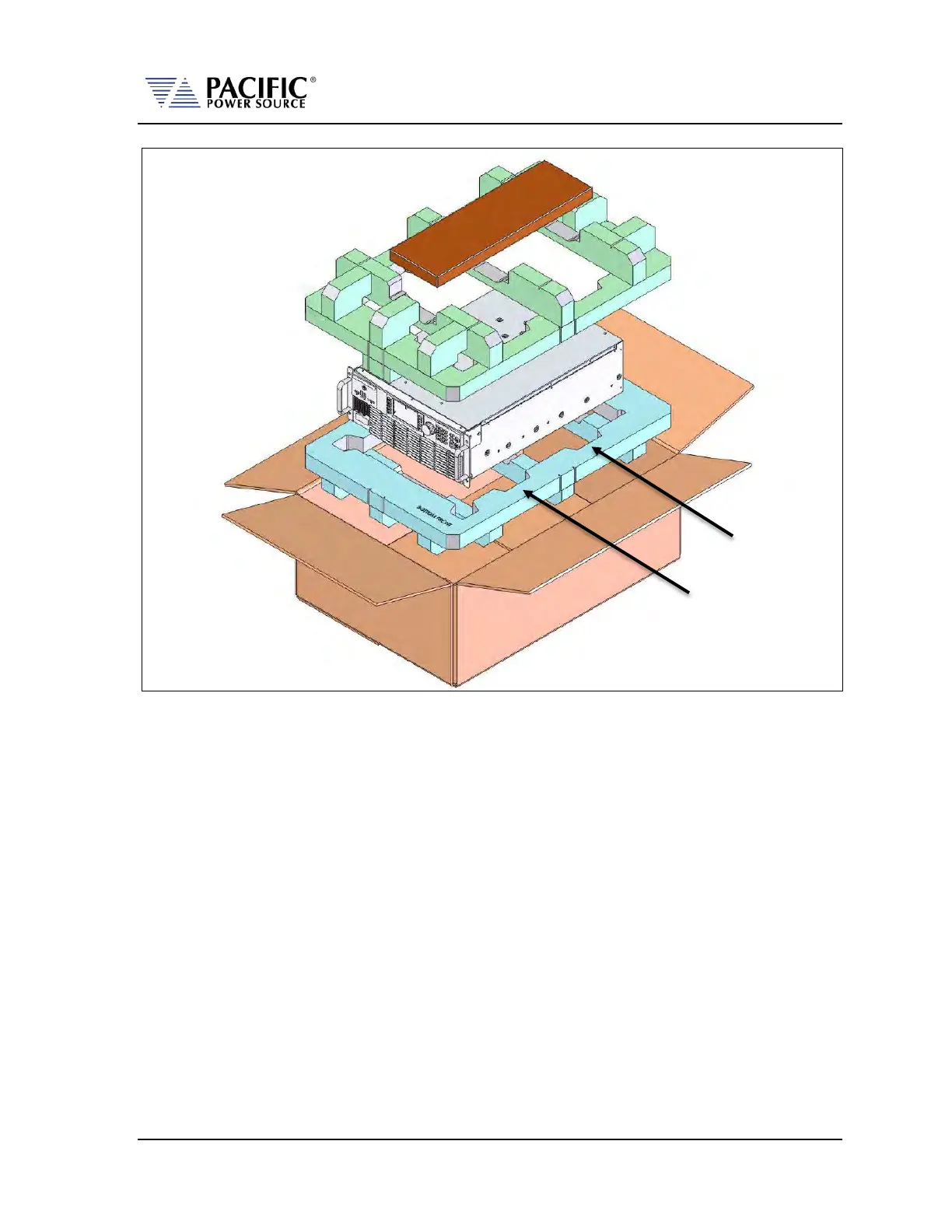

Figure 5-2: Exploded view of ADF unit packaging
If the unit is to be installed in an instrument rack, the straps may be removed. In that case, a
suitable lift must be used to position the unit at the desired rack height and pushed in place
using either rack slides or L-brackets (not included with the unit). The front panel handles
may be used to pull or push the unit in or out of a rack space only.
Note: The front panel handles are not designed to carry the entire unit. It must be
supported on front and back or both sides by two persons when being handled.
