Chapter 4. Trunks and Lines
Section 300-installation
2. Attach the Sync Unit to the CPC-B card.
Note: Before attaching the Sync Unit. insert the three spacers provided
with the unit and remove the jumpers from CN2 of the CPC-B card.

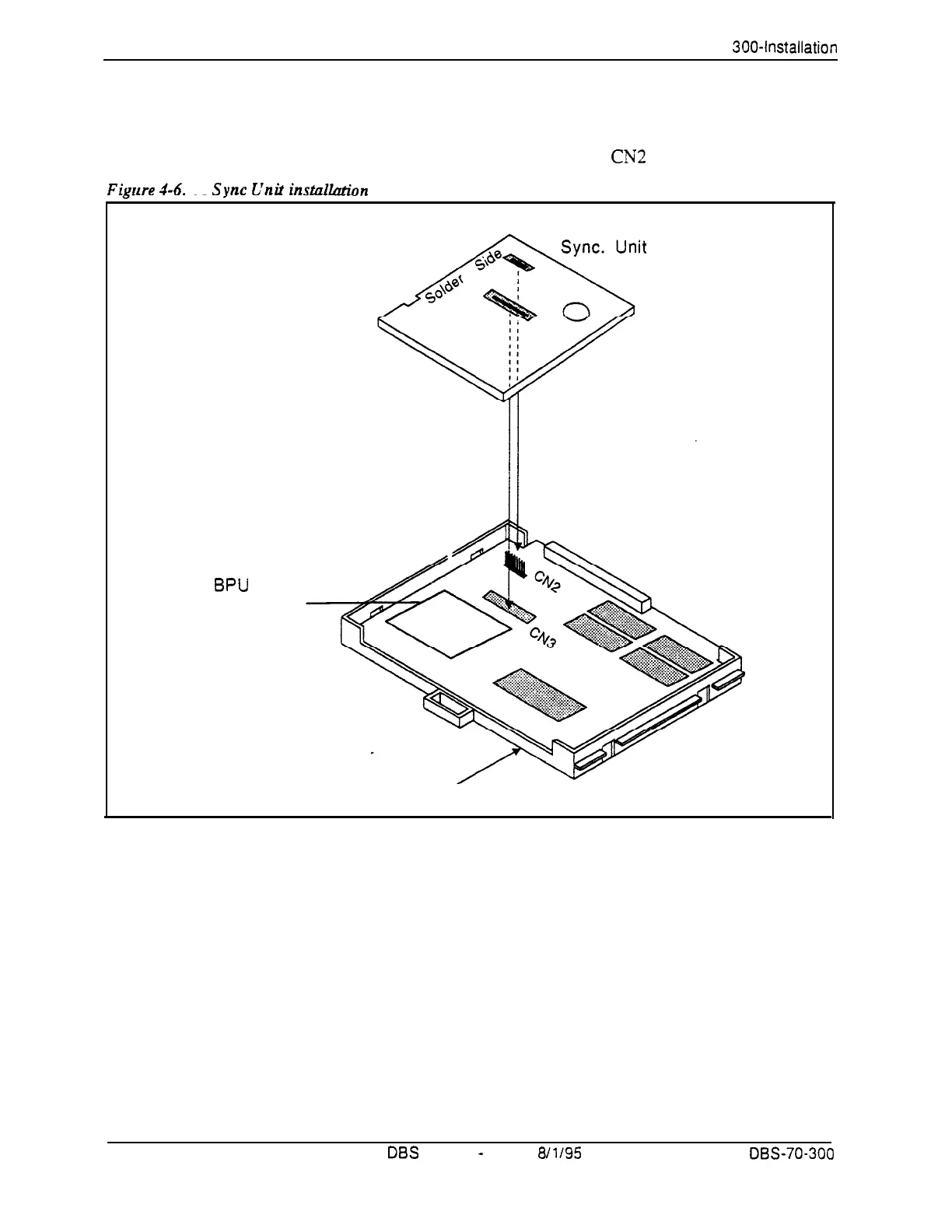

Fivure 1-6. Tl Svnc C’nit instdhtinn
BPU Chip
(Version 1.3
or higher)
CPC-B Card
