Panasonic DMR-E55PL - Panel P.C.B; DVD-RAM Drive; Rear Panel

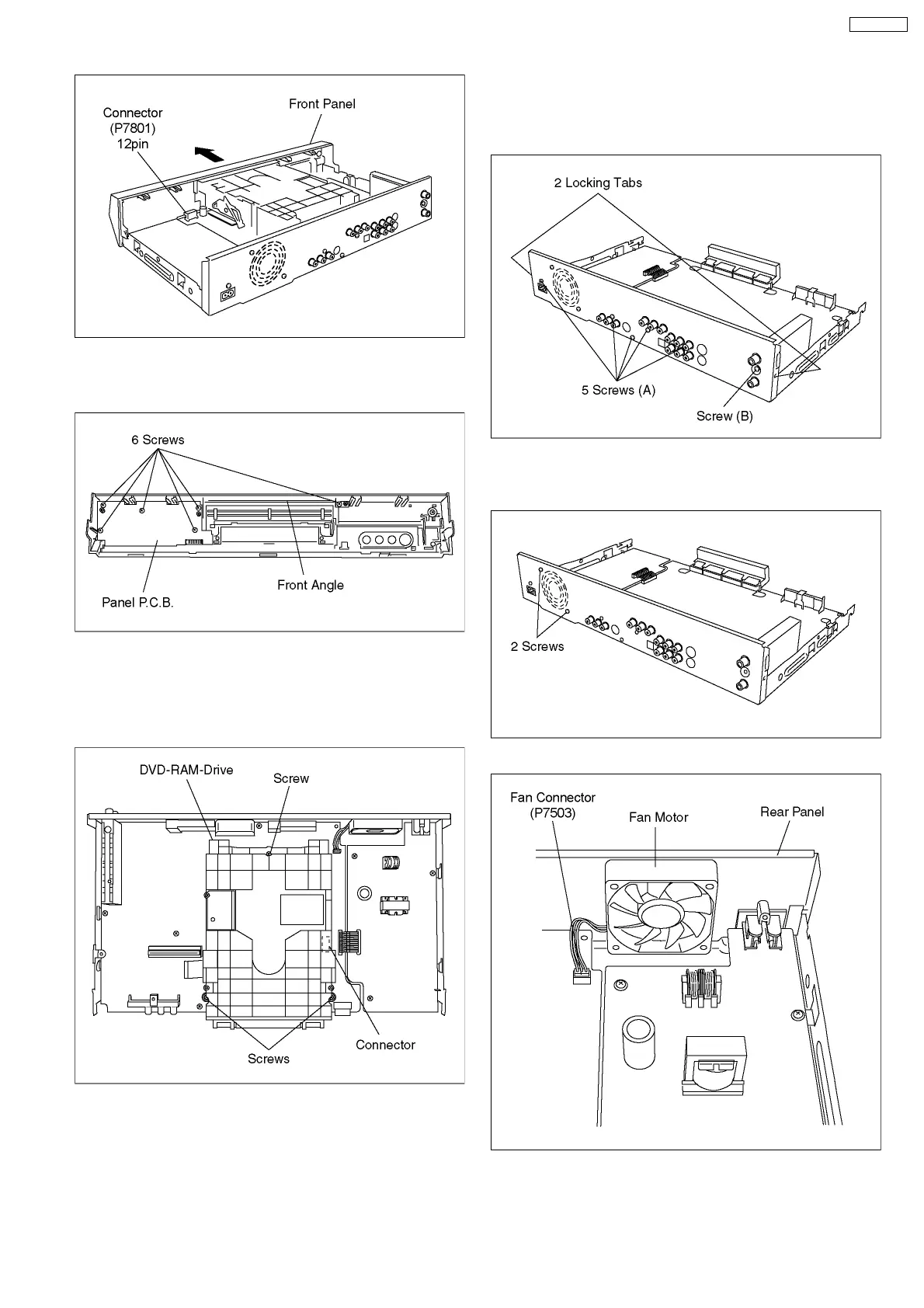

11.6. Panel P.C.B.
1. Remove 6 screws and Front Angle.
11.7. DVD-RAM Drive
1. Remove 3 Screws.
2. Pull out DVD-RAM Drive vertically so to remove it with
Connector.
11.8. Rear Panel
1. Remove the 5 screws (A) and screw (B).
2. Unlock 2 Locking Tabs to remove Rear Panel.
11.8.1. Only Fan Motor
1. Remove the 2 screws.
2. Remove Fan Connector to remove Fan Motor.
25
DMR-E55PL
