12 Service Fixture and Tools
Part Number Description Compatibility
RFKZ0125 Extension FFC (Digital P.C.B. - DVD-RAM Drive / 40 Pin) Same as E50 series
RFKZ0168 Extension Cable (Main P.C.B. - Fan / 3 Pin) Same as E50 series
RFKZ0197 Extension Cable (Main P.C.B. - DVD-RAM Drive / 8 Pin) Same as E55P series
RFKZ0214 Extension Cable (MainP.C.B. - Digital P.C.B. / 88 Pin) Same as E55P series
RFKZ0215 Extension Cable (MainP.C.B. - Panel P.C.B. / 12 Pin) Same as E55P series
RFKZ0216 Extension Cable (MainP.C.B. - Power P.C.B. / 23 Pin) Same as E55P series
NOTE:

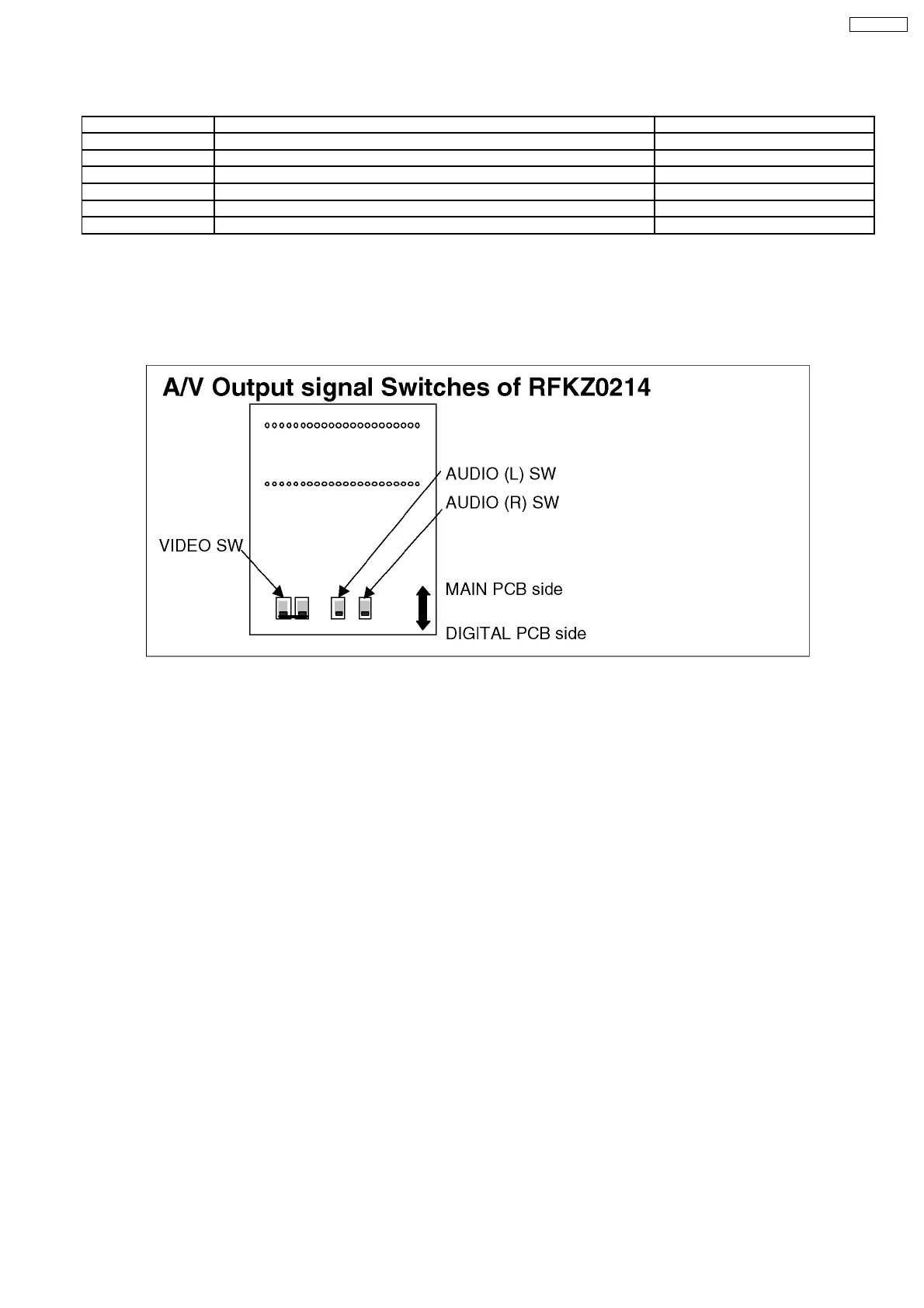

Extension Cable RFKZ0214 has A/V Output Signal switches.
Output signals can be switched from MAIN PCB side or DIGITAL PCB side.
When checking MAIN PCB, turn switches to MAIN PCB side.
When checking DIGITAL PCB, turn switches to DIGITAL P.C.B. side.
27
DMR-E55PL
