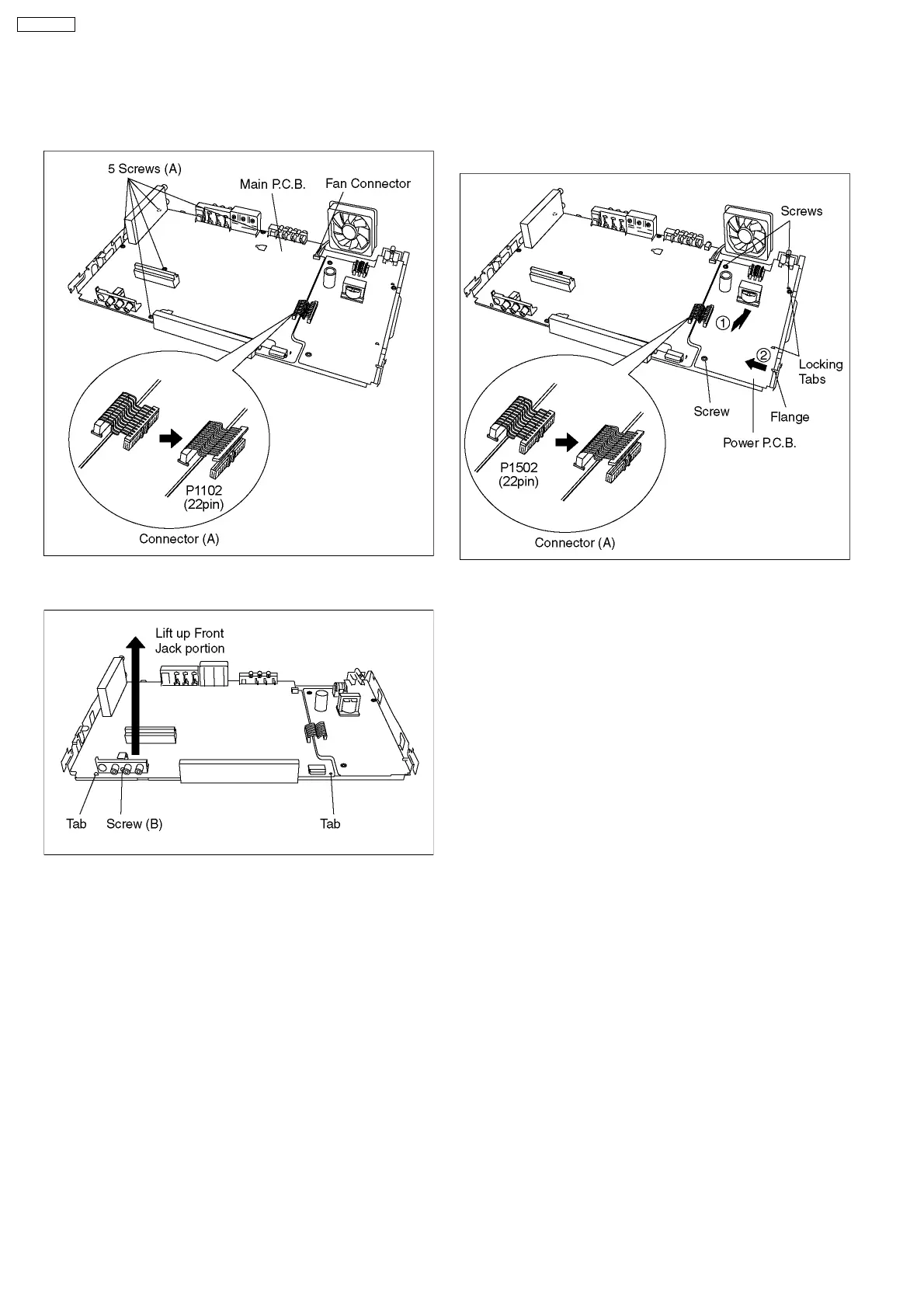

11.9. Main P.C.B.
1. Remove the 5 screws (A), Connector (A) and Fan
Connector.
2. Remove a Screw (B) and lift up Front Jack portion of Main
P.C.B. slightly so to unlock Tab to remove Main P.C.B..
11.10. Power P.C.B.
1. Remove 3 Screws and Connector (A).
2. Lift up Power P.C.B. a little so to unlock 2 Tabs and slide
Power P.C.B. so to unlock Flange to remove Power P.C.B.
