FP3 MEWNET-TR
Chapter1-2. Page.8
4
J
Total transmission distance of up to 700 m
When the network is connected with twisted pair cable, the maximum transmission distance is 700 m (2,296.59 ft).
When a 2-conductor cable is used, the maximum transmission distance is 400 m (1,312.34 ft).

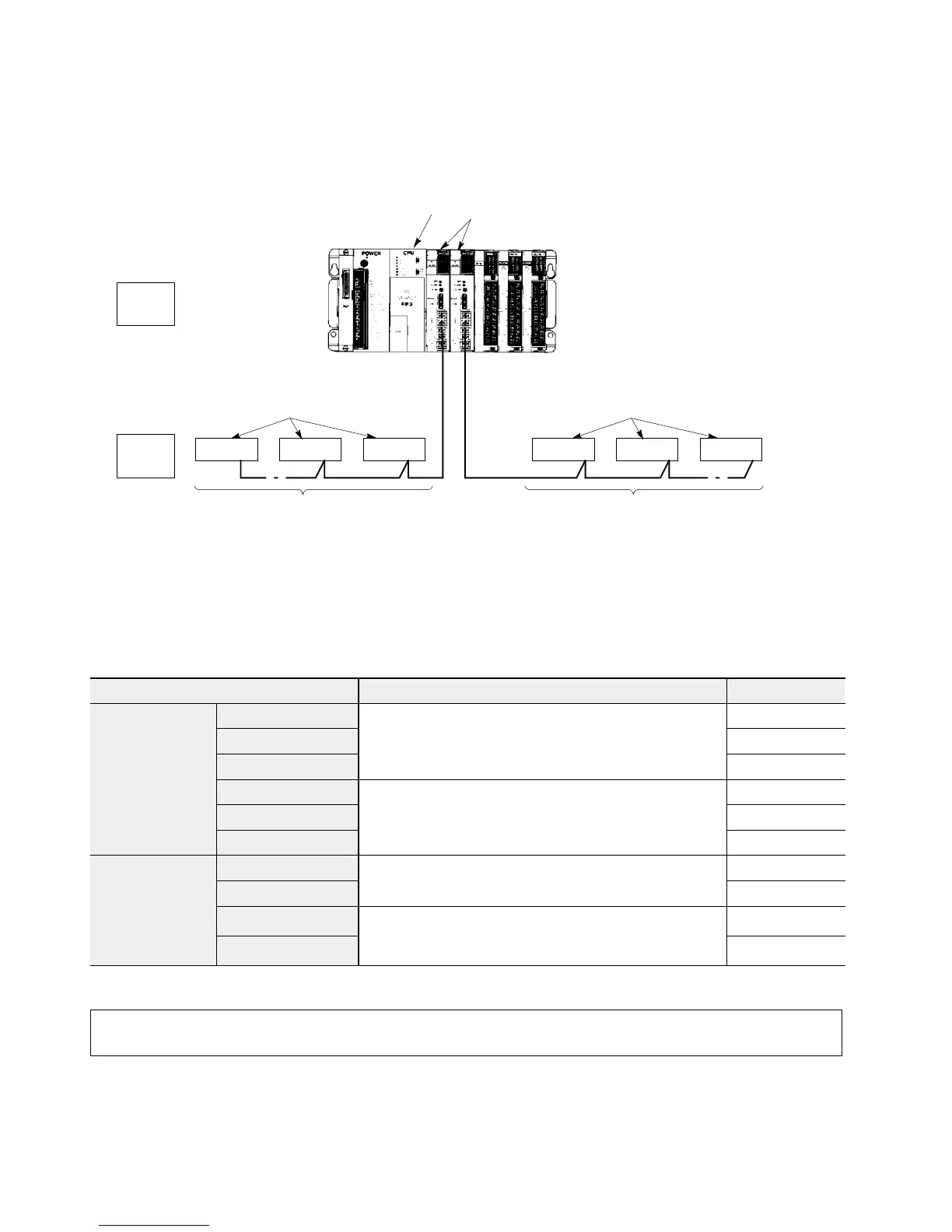

Example :
FP3/FP10S MEWNET-TR system
Master
station
Slave
station
FP I/O transmitter units
FP I/O transmitter units
Total transmission distance :
Max. 700 m/2,296.59 ft. with twisted pair cable
Max. 400 m/1,312.34 ft. with 2-conductor cable
Total transmission distance :
Max. 700 m/2,296.59 ft. with twisted pair cable
Max.400m/1,312.34 ft. with2-conductorcable
FP3 transmitter master units
FP3/FP10S CPU
J
Selection of the slave station with the most suitable number of I/O points to match the application
The FP I/O transmitter unit is available with 4, 8 and 16 I/O points for use as a slave station to allow the most suitable
system configuration. The 8-point and 16-point FP I/O transmitter units can be combined with the expansion FP I/O
terminal unit to establish a system with different numbers of input and output points.
Type Description Part number
FP I/O
4-input
Rated power supply voltage: 24 V DC
AFP87525
transmitter
ni
8-input
Source input
AFP87521
16-input
AFP87522
4-output
Rated power supply voltage: 24 V DC
AFP87527
8-output
Transistor NPN open collector output
AFP87523
16-output
.
.
,
AFP87524
Expansion FP
8-input
Rated power supply voltage: 24 V DC
AFP87425
I/O terminal
ni
16-input
Source input
AFP87426
8-output
Rated power supply voltage: 24 V DC
AFP87427
16-output
rans
s
or
open co
ec
or ou
pu
Max. load current: 0.5 A/point, 1 A/common
AFP87428
Note:
x
The FP I/O transmitter units (4-input and4-outputtype) cannot be combined with expansion FP I/O terminal
units.
