2. FP1 MEWNET-TR System and FP3/FP10S Master Station
x By connecting the RS485 interfaces of the FP1 transmitter master unit of an FP1 MEWNET-TR system and the FP3
transmitter master unit with a transmission cable, I/O data can be exchanged between the slave stations of the FP1
MEWNET-TR system and FP3/FP10S master station.
The I/O points allocated to master stations A and B correspond one to one.
J

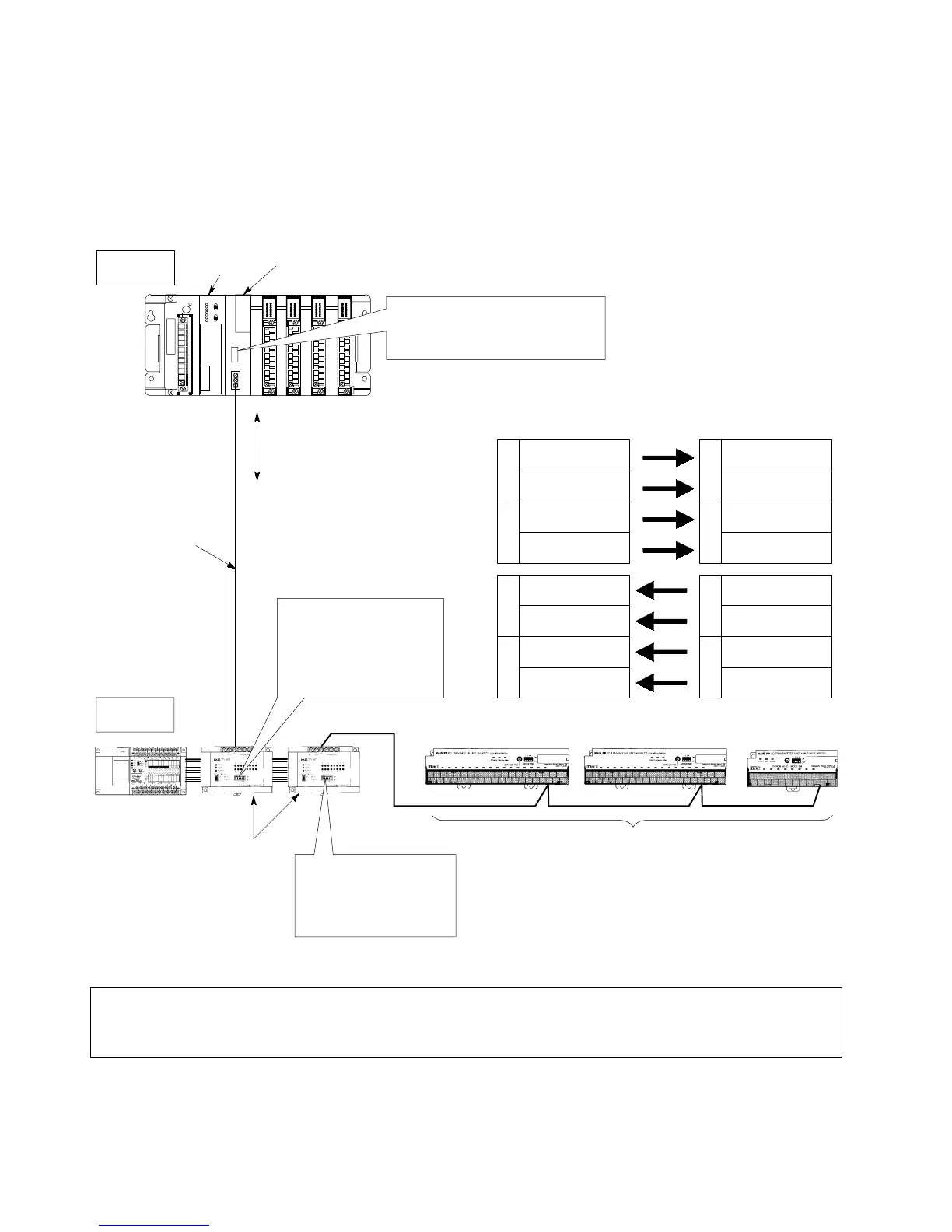

I/O link function of the FP1 MEWNET-TR system and FP3/FP10S master
W
Y
7
Y70 to Y77
Y78 to Y7F
W
Y
8
Y80 to Y87
Y88 to Y8F
X70 to X77
X78 to X7F
W
X
8
X80 to X87
X88 to X8F
W
X
7
16-input type
(Station No. 0)
X30 to X3F
Y30 to Y3F
X40 to X47
I/O link function
(I/O data exchange)
16-output type
(Station No. 0)
8-input type
(Station No. 4)
FP3 transmitter master unit (mounted in slot number 0 of the master backplane)
Master
station A
FP3/FP10S
CPU
Master
station B
Operation mode selector setting
(setting at 32 inputs/32 outputs)
Inputs: X0 to XF, X10 to X1F
Outputs: Y20toY2F, Y30 toY3F
X0 to X7
X8 to XF
W
X
1
X10 to X17
X18 to X1F
W
X
0
W
Y
2
Y20 to Y27
Y28 to Y2F
W
Y
3
Y30 to Y37
Y38 to Y3F
FP3/FP10S Master A
(pattern No.11)
FP1 Master B
(pattern No.1)
<FP3/FP10S Master A>
Operation mode selector
setting (pattern No.1)
Inputs: X70 to X7F,
X80 to X8F
Outputs: Y70 to Y7F,
Y80 to Y8F
<FP1 Master B>
Operation mode selector
setting (pattern No. 3A)
Inputs: X30 to X3F,
X40 to X47
Outputs: Y30 to Y3F
<FP1 MEWNET-TR>
Slave stations (FP I/O transmitter units)
FP1 control unit
FP1 transmitter
master units
<I/O link function>
Transmission cable
(Twisted pair cable or
2-conductor cable)
Notes:
x
For the I/O allocation pattern numbers of FP1 master B, see the “FP-M/FP1 MEWNET-TR Technical
Manual.”
x
For the pattern numbers of FP3/FP10S master A, see page 64, “3. I/O Allocation Table.”
6-3. I/O Link Application Examples
