FP3 MEWNET-TR
Chapter2-2. Page.19
15
2) Performance specifications
Item Description
Controllable I/O points
The controllable I/O points are selected by the operation mode selector
(selector numbers 5, 6, 7, and 8).
Input: Select from 0, 32, 64 or 128 points.
Output: Select from 0, 32, 64 or 128 points.
I/O occupation points
The total number of input and output points that are set
Current consumption
130 mA or less
Connection method
Terminal block (M3.5 screw)
Weight
Approx. 240 g/8.466 oz.

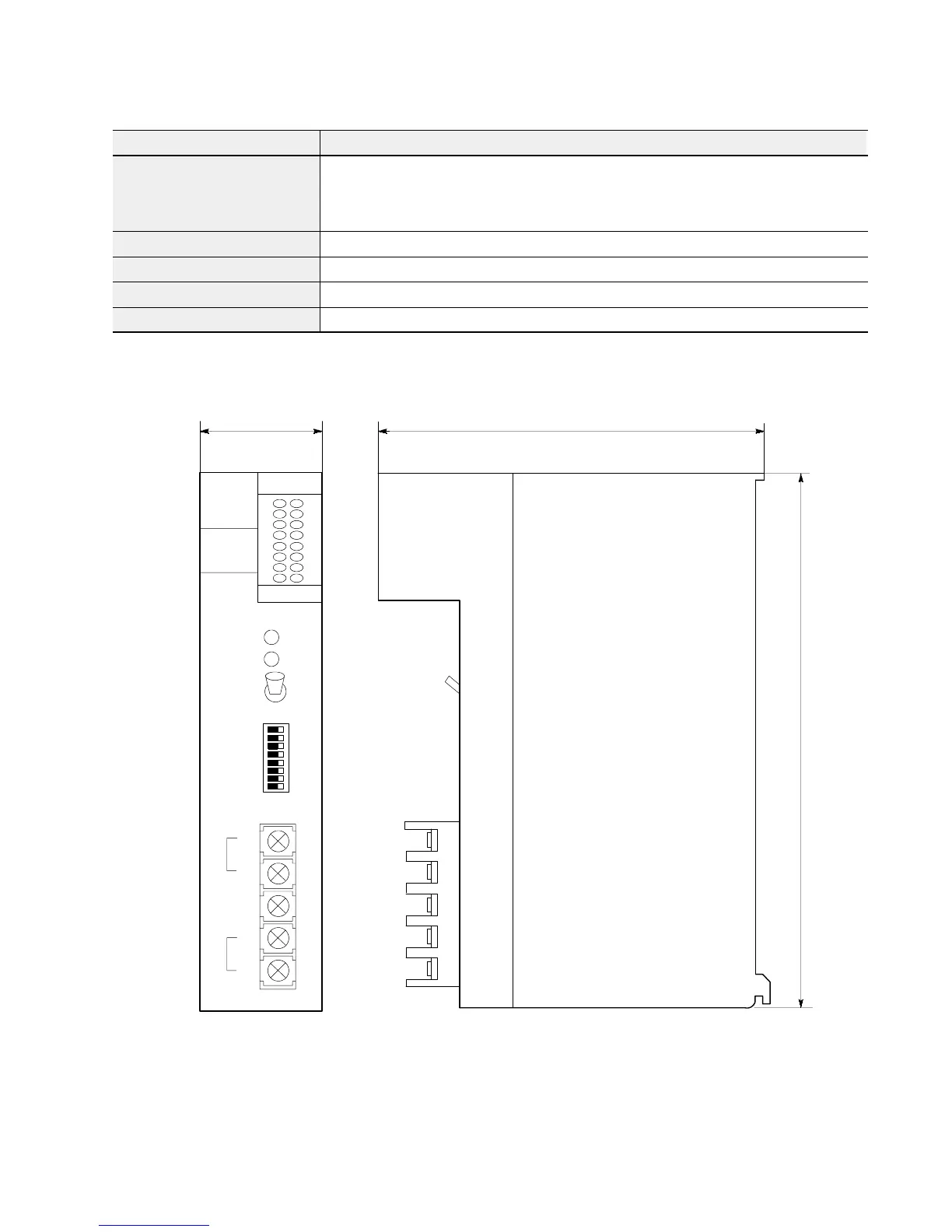

3) Dimensions
150/5.906
(unit : mm/in.)
34.5/1.358 113/4.449
OFFON
1
2
3
4
5
6
7
8
MASTER
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
TRANSMITTER
MASTER
COM.
ALARM
DSP SW.
+
-
F.G.
I
+
-
II
INPUT
OUTPUT
↕
SLAVE UNIT NO
MODE
SW.
