1-2. Features
J
Remote I/O control
Connecting FP3/FP10S CPUs and I/O terminals, the master station (FP3/FP10S CPU) controls the I/O information of
the distant slave stations.
< FP3/FP10S MEWNET-TR system >
x Controlled I/O points:
AnFP3 transmittermasterunit can control128 inputs and128outputs. In the FP3 MEWNET-TRsystem, by connecting
sixteen FP3 transmittermasterunits,remoteI/O control of up to 2,048 inputs and 2,048outputsis possible. In the FP10S
MEWNET-TRsystem, byconnectingtwenty-four FP3transmitter masterunits, remoteI/O controlof upto 3,072inputs
and 3,072 outputs is possible.
Master
station
Slave
station
FP I/O transmitter units

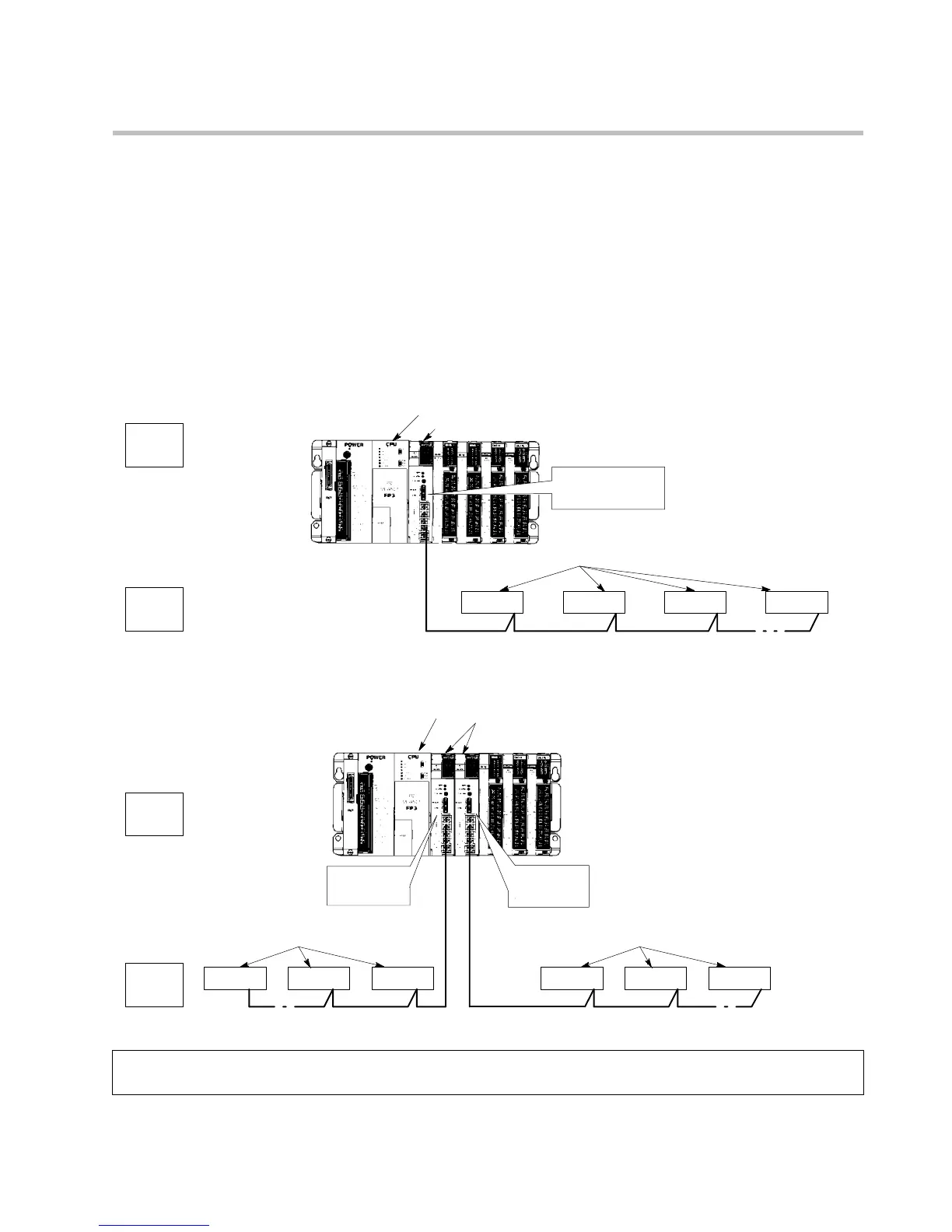

DExample of using one FP3 transmitter master unit
FP3/FP10S CPU
FP3 transmitter master unit
Max. 128 inputs
Max. 128 outputs
Master
station
Slave
station
DExample of using two FP3 transmitter master units
128 inputs
128 outputs
FP3 transmitter master units
(total: 256 inputs/256 outputs)
128 inputs
128 outputs
FP I/O transmitter units
FP I/O transmitter units
FP3/FP10S CPU
Note:
x
The number of I/O points is set to 0 at the factory for both input and output. With the number of input and
output points set at 0, the remote I/O control function cannot be used.
