FP3 MEWNET-TR
Chapter6-3. Page.89
85
J

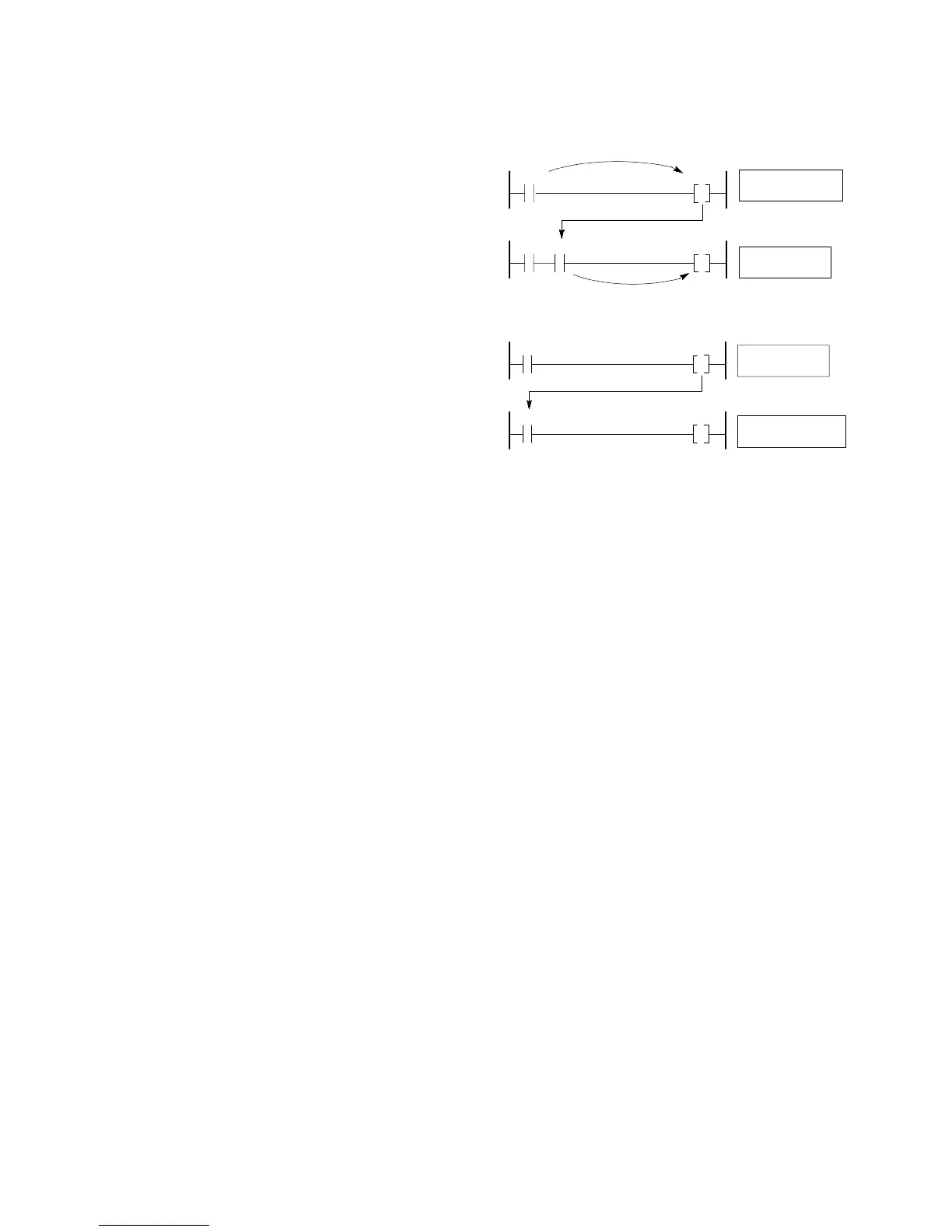

Program example
X30
FP-M
MEWNET-TR
Y110
X0
FP3/FP10S
Master A
R63FR0
Example 1:
I/O data transfer from a slave station of the FP-M MEWNET-TR system to FP3/FP10S master A
When R0 of FP3/FP10S master A turns ON,
input data from the 16-point input slave station
(station No. 0) of the FP-M MEWNET-TR
system is transferred to internal relay R63F of
FP3/FP10S master A.
T0 Y20
X110 Y3F
FP3/FP10S
Master A
FP-M
MEWNET-TR
Example 2:
I/O data transfer from FP3/FP10S master A to a slave station of the FP-M MEWNET-TR system
When timer relay T0 of FP3/FP10S master A
turns ON, an output is generated from terminal
F of station No. 0 of the 16-point output slave
station of the FP-M MEWNET-TR system.
6-3. I/O Link Application Examples
