FP3 MEWNET-TR
Chapter7-3. Page.108
104

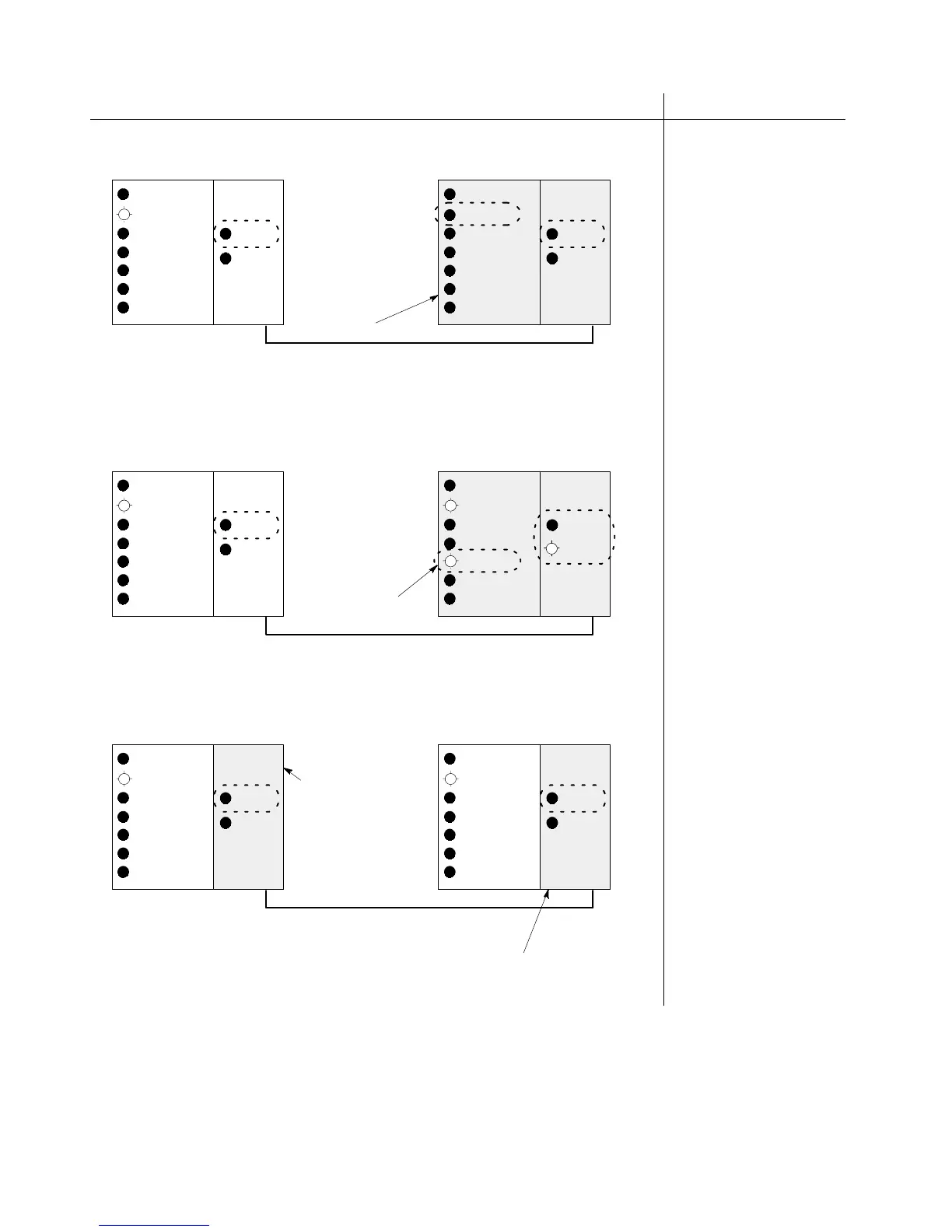

LED status Steps to take
<Master A COM.: OFF, Master B PROG.: OFF, COM.: OFF,
Other LEDs: normal status>
No power supply
Master A
RUN
PROG.
TEST
BREAK
ERROR
BATT.
ALARM
COM.
ALARM
<FP3/FP10S
CPU>
<FP3
transmitter
master unit>
Master B
RUN
PROG.
TEST
BREAK
ERROR
BATT.
ALARM
COM.
ALARM
<FP3/FP10S
CPU>
<FP3 transmitter
master unit>
S
Make sure power is
properly supplied to
master B.
<Master A COM.: OFF, Master B ERROR: ON, COM.: OFF, ALARM: ON,
Other LEDs: normal status>
There is probably
an abnormality.
Master A
RUN
PROG.
TEST
BREAK
ERROR
BATT.
ALARM
COM.
ALARM
<FP3/FP10S
CPU>
<FP3
transmitter
master unit>
Master B
RUN
PROG.
TEST
BREAK
ERROR
BATT.
ALARM
COM.
ALARM
<FP3/FP10S
CPU>
<FP3 transmitter
master unit>
S
See troubleshooting on
page 109.
<Master A COM.: OFF, Master B COM.: OFF, Other LEDs: normal status>
Incorrect
terminal station
Incorrect terminal
station and incorrect
master station setting
Master A
RUN
PROG.
TEST
BREAK
ERROR
BATT.
ALARM
COM.
ALARM
<FP3/FP10S
CPU>
<FP3
transmitter
master unit>
Master B
RUN
PROG.
TEST
BREAK
ERROR
BATT.
ALARM
COM.
ALARM
<FP3/FP10S
CPU>
<FP3 transmitter
master unit>
<Terminal station
setting>
S
Set operation mode
selector No. 3 of
master A and B to ON.
<Master station
setting>
S
Set operation mode
selector No. 1 of
master B to ON.
7-3. I/O Link Control When an Error Occurs
