Panasonic FP3 User Manual

FP3 MEWNET-TR
Chapter2-3. Page.28
24
J
Transistor NPN open collector output type expansion FP I/O terminal unit
x
Performance specifications
Item Description
Number of output points
AFP87427: 8 points
AFP87428: 16 points
Rated load voltage
24 V DC
Load voltage range
20.4 to 26.4 V DC
Max. load current
0.5 A/point, 1 A/common
OFF state leakage current
100
P
A or less
Max. ON state voltage drop
1.5 V or less
Response time
OFF
→
ON: 1 ms or less
ON
→
OFF: 1 ms or less
Internal current consumption
AFP87427: 60 mA or less (when all points are ON)
*
AFP87428: 110 mA or less (when all points are ON)
*
Output points per common
AFP87427: 8 points/common
AFP87428: 16 points/common
Output type
Sink output
Connection method
Terminal block (M3.5 screw)
Insulation
Optical coupler
Weight
AFP87427: Approx. 170 g/5.997 oz.
AFP87428: Approx. 270 g/9.524 oz.
Note:
*
The current consumption when all points are ON shows the ratings when no load is connected.
x

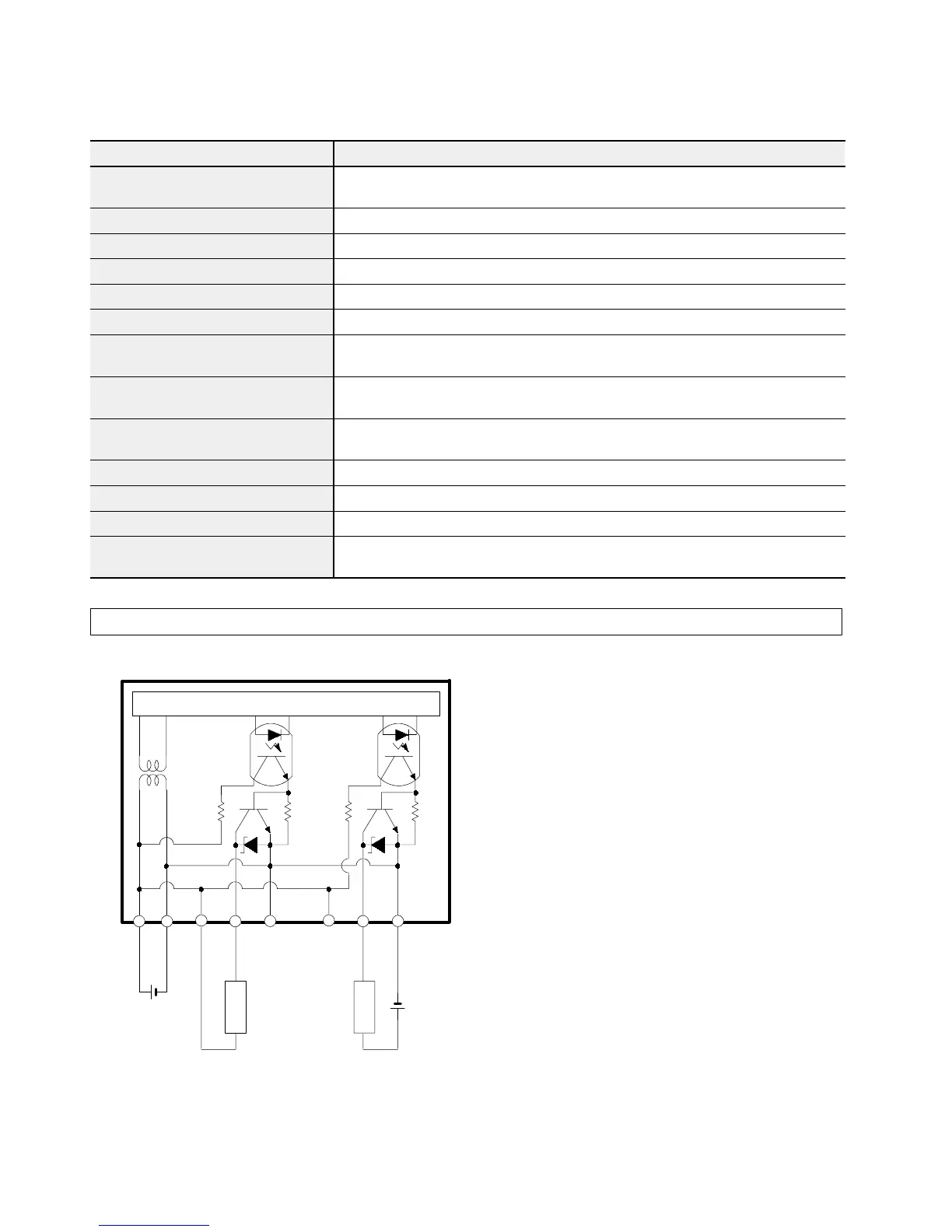

Internal circuit diagram
2-3. Slave Stations
+24V -
24 V
+
-
Output terminal
+
Output terminal
Load
Internal circuit
24 V DC
Optical
coupler
Optical
coupler
24 V DC
-
Load
External
power supply
